• Model NO.：JZC350
• Vibrating Amplitude：1.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：as Required
• Mixing Cycle：3min
• Voltage：Adapt to Your Local Voltage
• Max Aggregate：60mm
• Load：One 20′ Gp Can Load Two Sets
• Charging Volume：560L
• Weight：1950kg
• Durm-Rotating Speed：14r,Min
• Discharging Volume：350L
• Overall Size：2766X2140X3000mm
• Mixing  Motor：5.5kw
• Transport Package：Suitable for Sea Transportation
• Specification：2766x2140x3000mm
• Trademark：Raytone Machinery
• Origin：Shandong, China(Mainland)
• HS Code：84743100
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. JZC350 Vibrating Amplitude 1.0mm Certification ISO9001: 2000, CE Condition New Color as Required Mixing Cycle 3min Voltage Adapt to Your Local Voltage Max Aggregate 60mm Load One 20′ Gp Can Load Two Sets Charging Volume 560L Weight 1950kg Durm-Rotating Speed 14r/Min Discharging Volume 350L Overall Size 2766X2140X3000mm Mixing  Motor 5.5kw Transport Package Suitable for Sea Transportation Specification 2766x2140x3000mm Trademark Raytone Machinery Origin Shandong, China(Mainland) HS Code 84743100 Production Capacity 50 Sets Per Month

Product Description

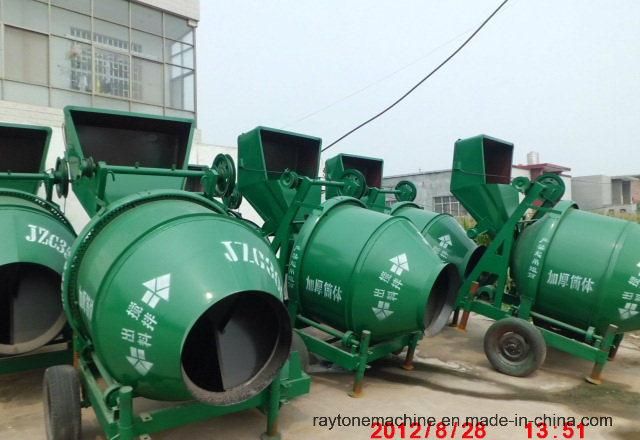

JZC350 Mobile Concrete Mixer


Products Introduction:
1.JZC350 concrete mixer is also called drum mixer, which is to mixer when turning clockwise, and discharge when turning anticlockwise and can mix plastic and semi-stiff-consistency concrete.JZC350 concrete mixer is a portable concrete mixer and is applicable to small construction project,used for the variety of concrete production, mortar and grout, etc.
2.JZC, JZM series mixer including JZC 250,350,500,750 and JZM350, altogether 5 main models, among which, model JZC 750 is stationary type, it can be used as single machine or combined with compounding machine to form simple concrete batch plants. Other models are all models are all moveable type.
Main technical Parameters:

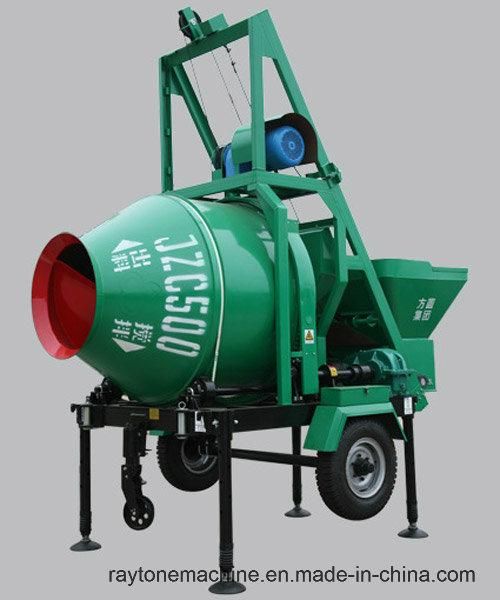

Model	JZC350	JZC500
Overall size	2766x2140x3000mm	3500x2200x3200mm
Discharging capacity	560L	800L
Charging capacity	350L	500L
Mixing cycle	3min	3min
Stirring vane speed	14r/min	13r/min
Productivity	10-14 m3/h	18~20m3/h
Total weight	1950kg	2400kg
Mixing  motor	5.5kw	7.5kw
Hoisting motor	4.5kw	5.5kw
Voltage	Adapt to your local voltage	Adapt to your local voltage
Max trailing speed	20km/h	20km/h
Accuracy of water supply	Error≤2%	Error≤2%
Max. aggregate size	60mm	60~80mm

Detailed Pictures:
