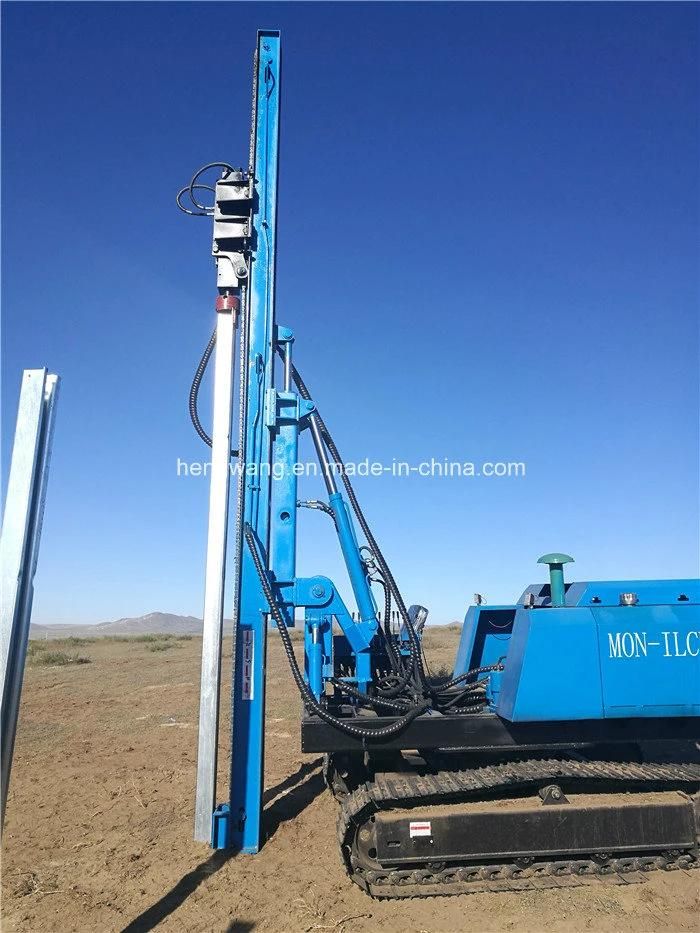

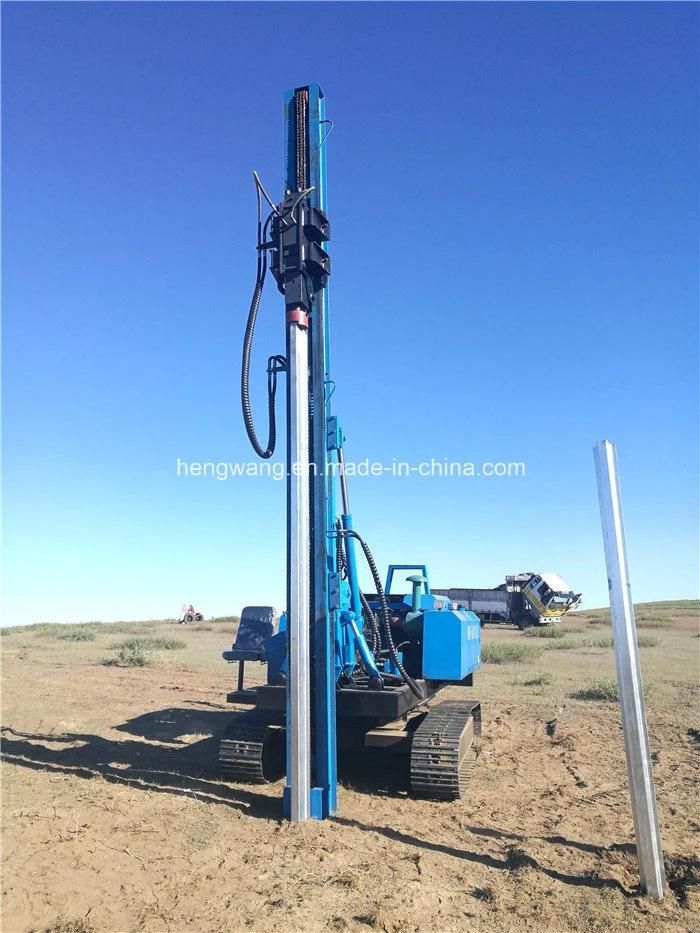

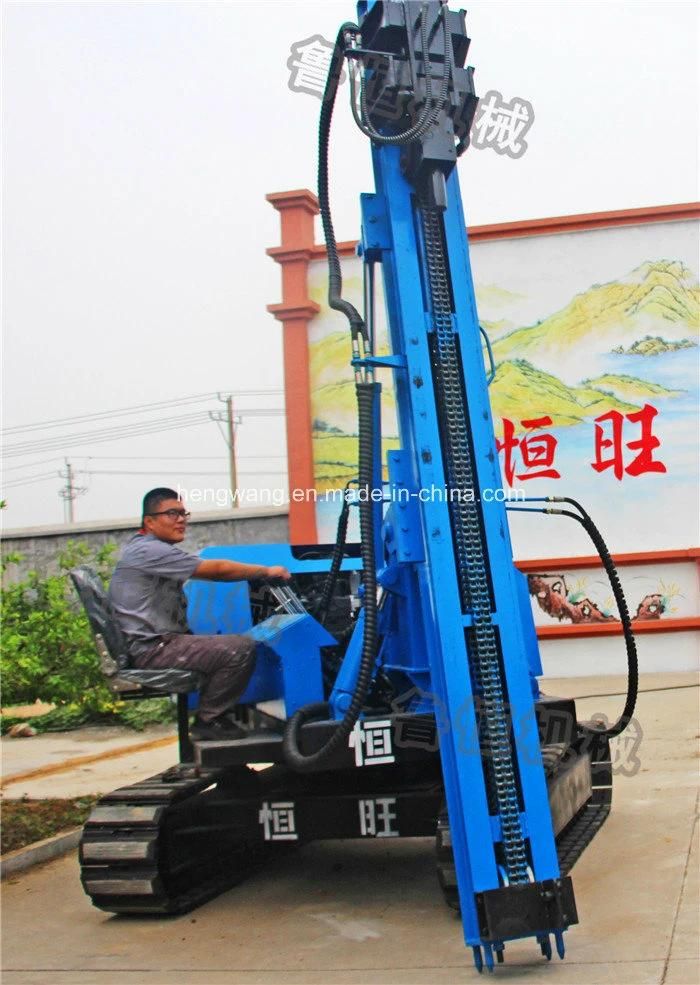

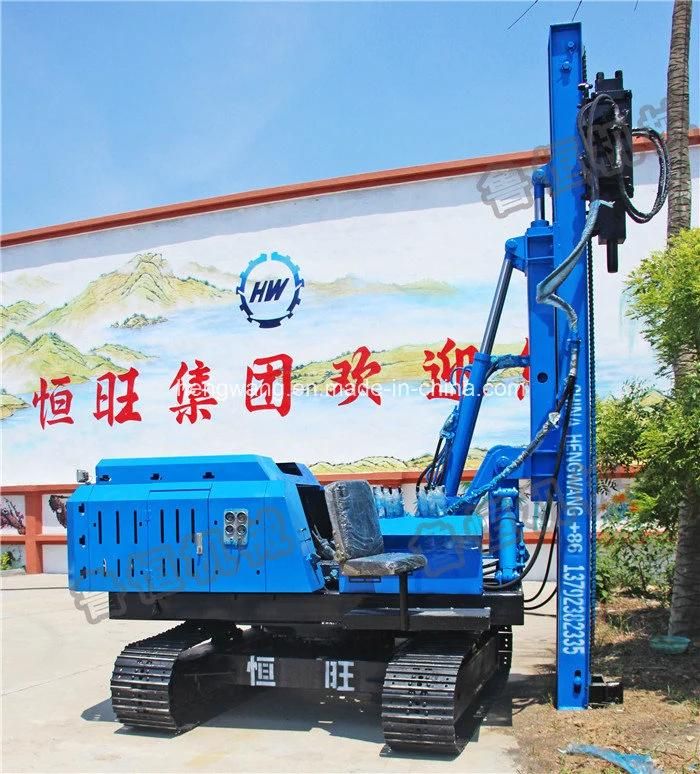

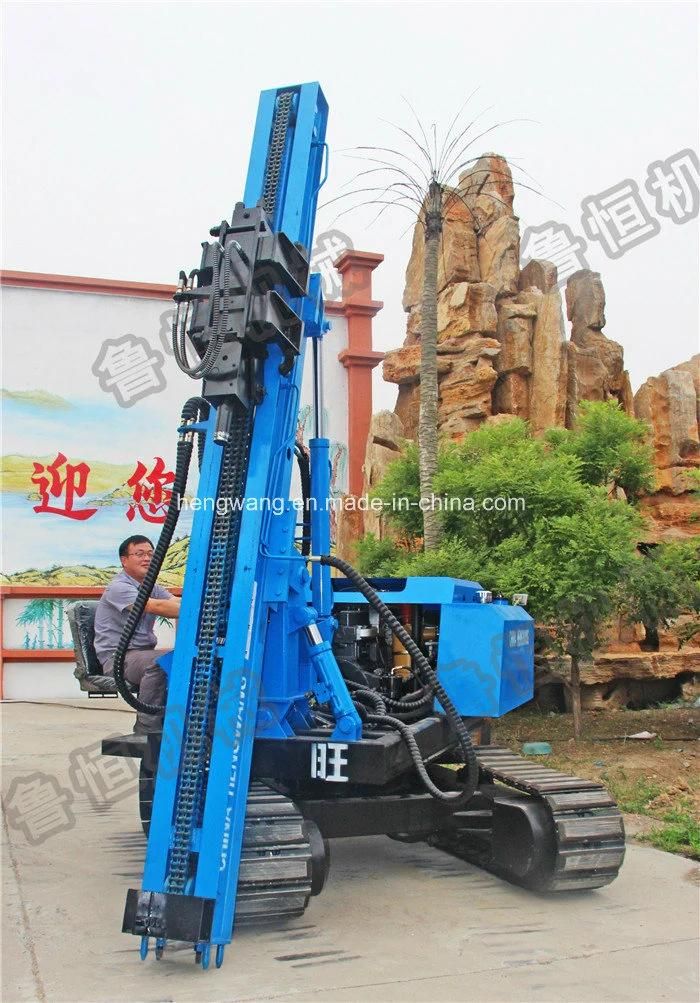

High Speed Hydraulic Solar Pile Driver for Installing Post

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Type：Vibration Piling Machine
  • Pressure Pile Driver Type：Hydraulic Pile Driver
  • Pile Hammer Type：Drop Hammer
  • Motor Power：55kw
  • Noise：With Noise
  • Certification：ISO 9001:2000

Base Info

  • Model NO.：HW 650
  • Condition：New
  • Piling Speed(M/Min)：1-2m,Min
  • Min Ground Interspace：380mm
  • Main Valve Flow：100L,Min
  • Drilling Diameter：130-800mm
  • Climb Angle：35
  • Rated Speed：2400r,Min
  • Max Drill Depth：3600mm
  • Max Travel Speed：5km,H
  • Rated Power：55kw
  • Weight：7200kg
  • Transport Package：Wooden Case
  • Specification：CE
  • Trademark：HW
  • Origin：Shangdong China
  • HS Code：8430100000
  • Production Capacity：5000set,Year

Description

1Diesel engine power65kw2Walking motor torque (max)5700N.M3Rotary motor max torque(impact drill)2000-2500N.M4Rotary motor max torque(Auger drill)8000-10000N.M5Pile height (max)4500mm6Mast route3700mm7Drill depth(impact drill)3500mm8Drill diameters(impact drill)68-300mm9Drill depth(auger drill)3500mm10Drill diameters(auger drill)90-500mm11Drill angle(L/R)25/-90 °12Drill angle(forward/backward)20/-20 °13Hydraulic system pressure16Mpa14Hydraulic system flow90L/min15Travelling speed1.6Km/h16Chassis spec2500*2000*520mm17Track chassis height300mm18Track height above the ground230mm19Clambing ability:≤ 30°20Track working pressure13Mpa21Track rotation angle360°22Hydraulic hammer impact power6-8T23Dimension(L*W*H)4000*2000*6000mm (Working)24Dimension(L*W*H)6000*2000*2400mm (Folden)25Net weight6000kgs
High Speed Hydraulic Solar Pile Driver for Installing PostHigh Speed Hydraulic Solar Pile Driver for Installing PostHigh Speed Hydraulic Solar Pile Driver for Installing PostHigh Speed Hydraulic Solar Pile Driver for Installing PostHigh Speed Hydraulic Solar Pile Driver for Installing Post
