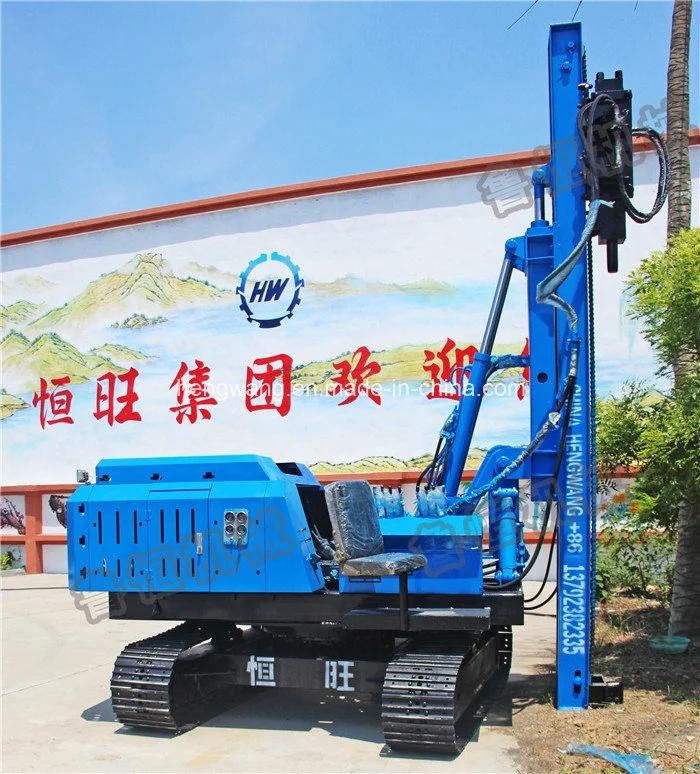

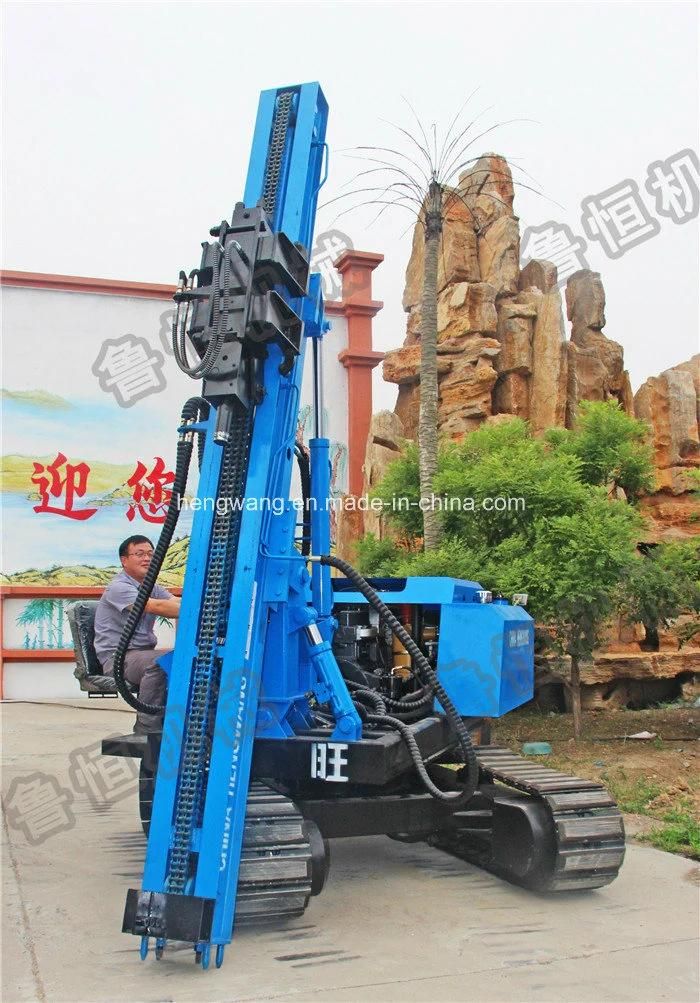

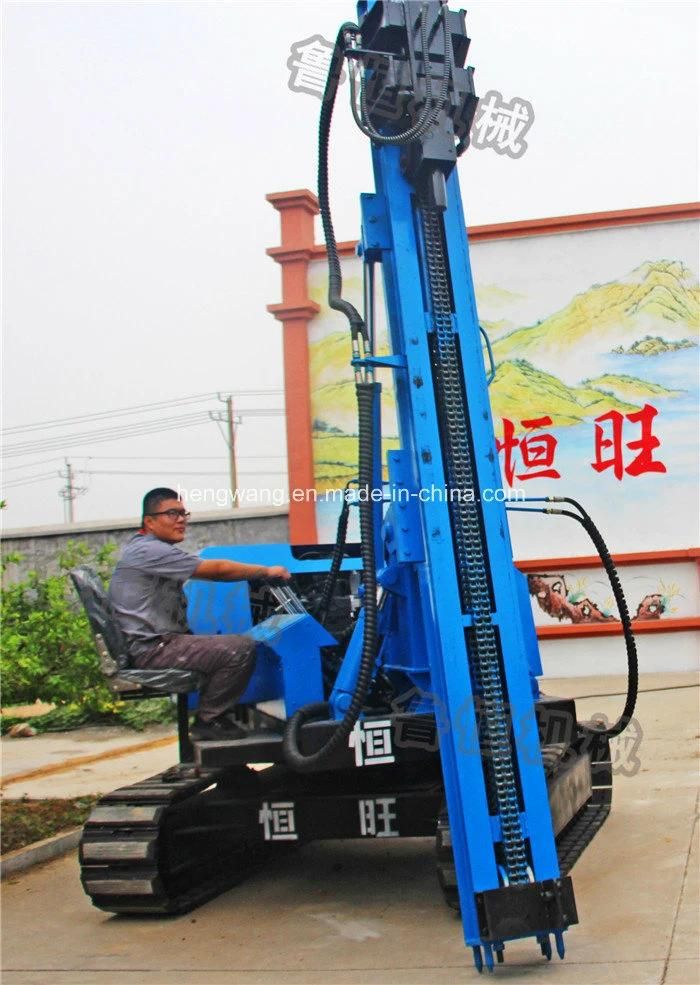

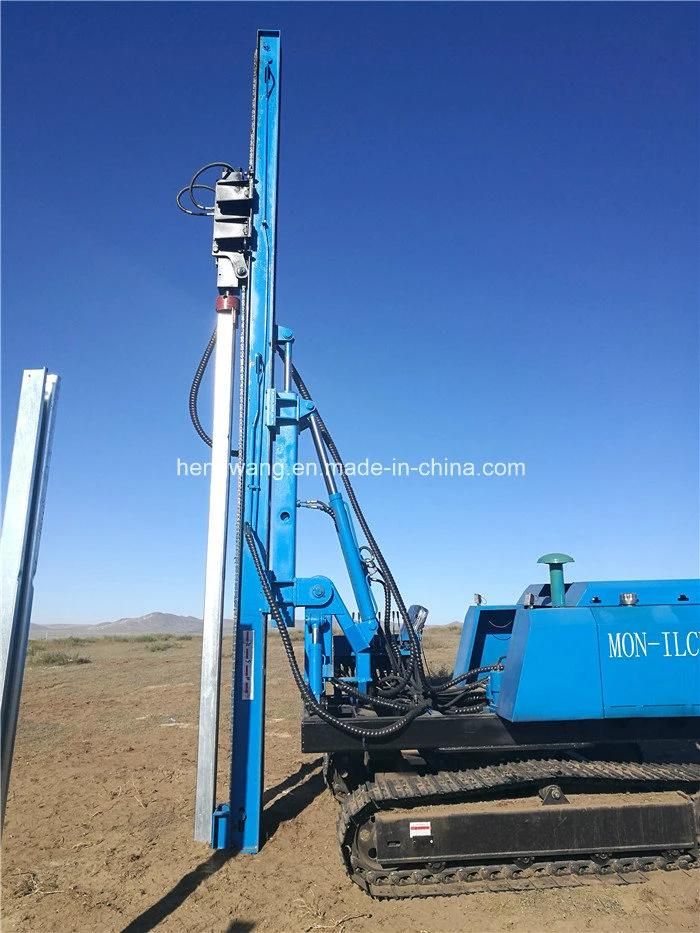

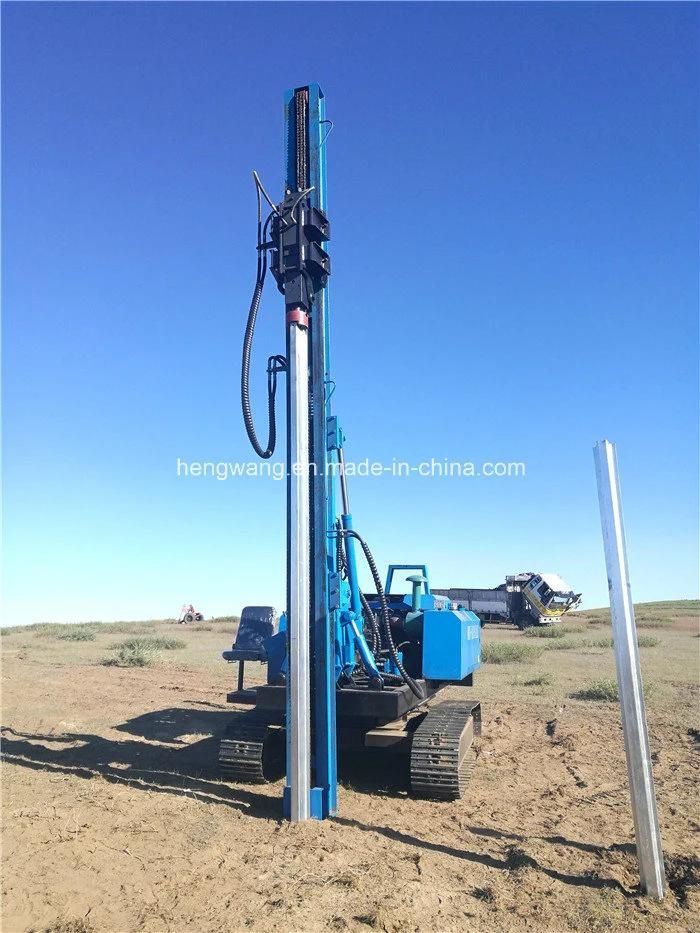

Hammer Hydraulic Injection Pile Driver /Bore Pile Machine Malaysia

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Type：Vibration Piling Machine
  • Pressure Pile Driver Type：Hydraulic Pile Driver
  • Pile Hammer Type：Drop Hammer
  • Motor Power：55kw
  • Noise：With Noise
  • Certification：ISO 9001:2000

Base Info

  • Model NO.：HW
  • Condition：New
  • Piling Speed(M/Min)：1-2m,Min
  • Min Ground Interspace：380mm
  • Main Valve Flow：100L,Min
  • Drilling Diameter：130-800mm
  • Climb Angle：35
  • Rated Speed：2400r,Min
  • Max Drill Depth：3600mm
  • Max Travel Speed：5km,H
  • Rated Power：55kw
  • Weight：7200kg
  • Transport Package：Wooden Case
  • Specification：CE
  • Trademark：HW
  • Origin：Shangdong China
  • HS Code：8430100000
  • Production Capacity：5000set,Year

Description

1Diesel engine power65kw2Walking motor torque (max)5700N.M3Rotary motor max torque(impact drill)2000-2500N.M4Rotary motor max torque(Auger drill)8000-10000N.M5Pile height (max)4500mm6Mast route3700mm7Drill depth(impact drill)3500mm8Drill diameters(impact drill)68-300mm9Drill depth(auger drill)3500mm10Drill diameters(auger drill)90-500mm11Drill angle(L/R)25/-90 °12Drill angle(forward/backward)20/-20 °13Hydraulic system pressure16Mpa14Hydraulic system flow90L/min15Travelling speed1.6Km/h16Chassis spec2500*2000*520mm17Track chassis height300mm18Track height above the ground230mm19Clambing ability:≤ 30°20Track working pressure13Mpa21Track rotation angle360°22Hydraulic hammer impact power6-8T23Dimension(L*W*H)4000*2000*6000mm (Working)24Dimension(L*W*H)6000*2000*2400mm (Folden)25Net weight6000kgs
Hammer Hydraulic Injection Pile Driver /Bore Pile Machine MalaysiaHammer Hydraulic Injection Pile Driver /Bore Pile Machine MalaysiaHammer Hydraulic Injection Pile Driver /Bore Pile Machine MalaysiaHammer Hydraulic Injection Pile Driver /Bore Pile Machine MalaysiaHammer Hydraulic Injection Pile Driver /Bore Pile Machine Malaysia
