• Model NO.：LZ-9E
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Color：Customized
• Drive Mode：Electric Motor Drive, Pneumatic Drive, Diesel Driv
• Output Capacity：9m 3 ,H
• Max. Horizontal Conveying Distance：200m
• Max. Aggregate Size：Dia.20 mm
• Conveying Hose Inner Diameter：Dia.64 mm
• Transport Package：Plywood Case, Free-Fumigation
• Specification：ISO
• Trademark：Leadcrete
• Origin：China
• HS Code：84743100
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LZ-9E Certification ISO9001: 2000, CE, SGS Condition New Color Customized Drive Mode Electric Motor Drive, Pneumatic Drive, Diesel Driv Output Capacity 9m 3 /H Max. Horizontal Conveying Distance 200m Max. Aggregate Size Dia.20 mm Conveying Hose Inner Diameter Dia.64 mm Transport Package Plywood Case, Free-Fumigation Specification ISO Trademark Leadcrete Origin China HS Code 84743100 Production Capacity 5000 Sets/Year

Product Description

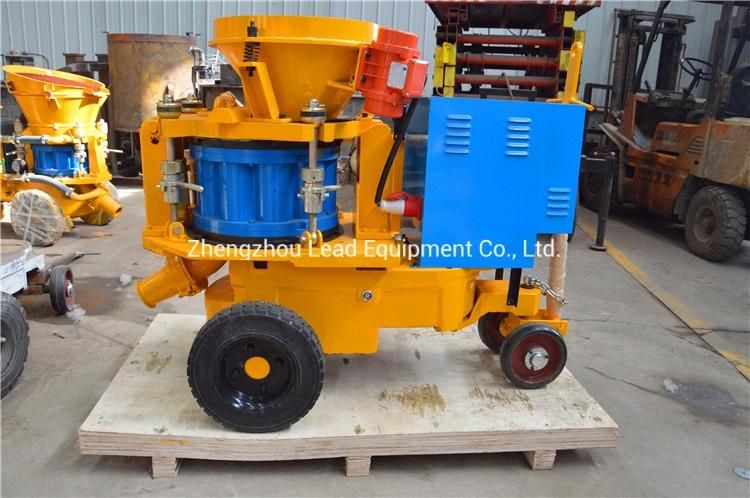

LZ-9 tunnel building used large size shotcrete machine for sale



1. Description:
LZ-9 is large-sized shotcrete machine for the spraying process.
LZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel


2. Application:
LZ-9 can be used for large-section tunnel building, mine, etc


3. Features:
1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

4.Technical data:
Partifularly used for dry, damp mix and steel(polymer)fiber reinforced shotcrete.

Drive type	electric motor
Output Capacity	9m 3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:4~5
Max. Aggregate Size	Dia.20 mm
Conveying Hose Inner Diameter	Dia.64 mm
Conveying Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	10~12m 3 /min(357-430CFM)
Material Charging Height	1.1m
Rotor Speed	11r/min
Electric Motor	7.5kW,Y132M-4,IP55
Vibrator Electric Motor	0.15kW,XVM-A1.5-2
Available Voltage	220V,380V, 440V,660V 50Hz/60Hz
Overall Dimension(length×width×height)	1.65×0.9×1.25m
Net Weight	900kg

5.Company Information:
