• Model NO.：LZ-3
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Product Name：Shotcrete Machine
• Drive Mode：Electric Motor Drive, Pneumatic Drive, Diesel Driv
• Max. Horizontal Conveying Distance：200m
• Max. Aggregate Size：10 mm
• Conveying Pressure：0.2-0.4MPa
• Rotor Speed：14r,Min
• Transport Package：Standard Free-Fumigation Packing Case
• Specification：ISO, CE, SGS
• Trademark：Leadcrete
• Origin：China
• HS Code：84743100
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LZ-3 Certification ISO9001: 2000, CE, SGS Condition New Product Name Shotcrete Machine Drive Mode Electric Motor Drive, Pneumatic Drive, Diesel Driv Max. Horizontal Conveying Distance 200m Max. Aggregate Size 10 mm Conveying Pressure 0.2-0.4MPa Rotor Speed 14r/Min Transport Package Standard Free-Fumigation Packing Case Specification ISO, CE, SGS Trademark Leadcrete Origin China HS Code 84743100 Production Capacity 5000 Sets/Year

Product Description

LZ-3 electric motor drive concrete spraying shotcrete machine

Description:
LZ-3 Shotcrete machine/Gunite machine /Concrete Spraying Machine is small-sized shotcrete machine for the dry spraying process.
LZ-3 shotcrete machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.

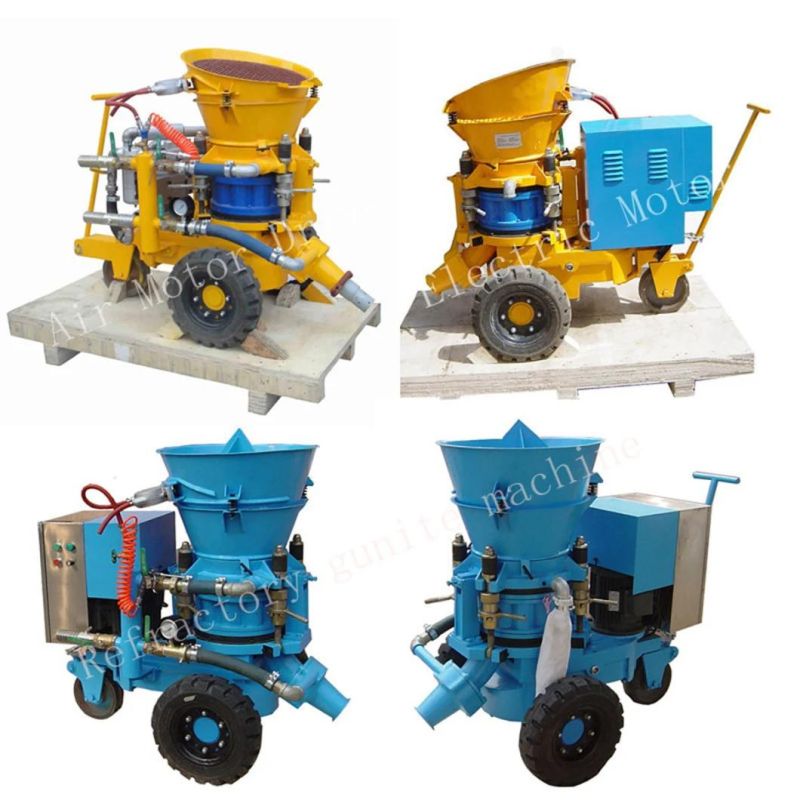

LZ-3 shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel

Other type LZ-3 shotcrete machine:

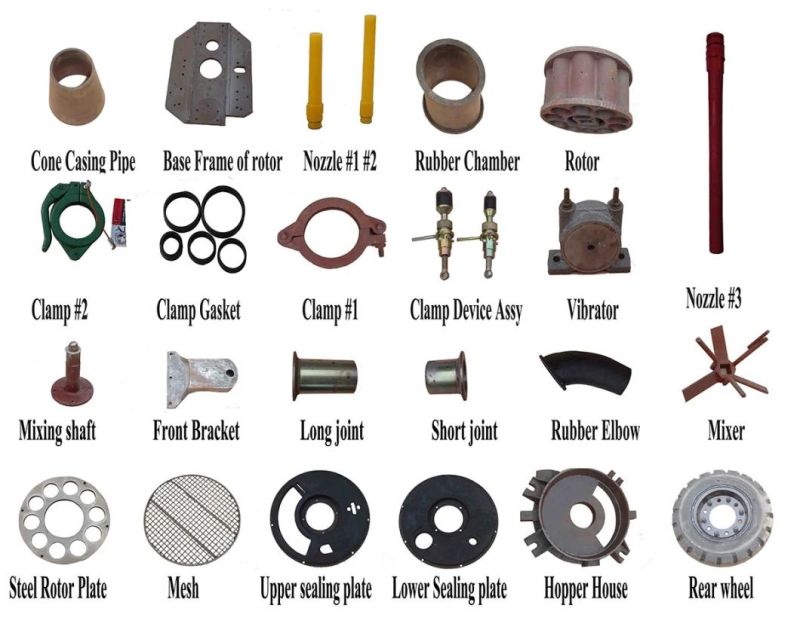

spare parts:


Spray refractory application:(it can also used for concrete spraying)




Type	electric motor drive
Output Capacity	3m 3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:3~5
Max. Aggregate Size	Φ10 mm
Conveying Hose Inner Diameter	Φ38/Φ50mm
Conveying Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption for conveying material	5~6m 3 /min(180-215CFM)
Material Charging Height	0.9m
Rotor Speed	14r/min
Motor Power	3kW(4hp),IP55
Available Voltage	220V,380V, 440V,660V 50Hz/60Hz
Overall Dimension(length×width×height)	1.13×0.54×1.02m
Net Weight	430kg
