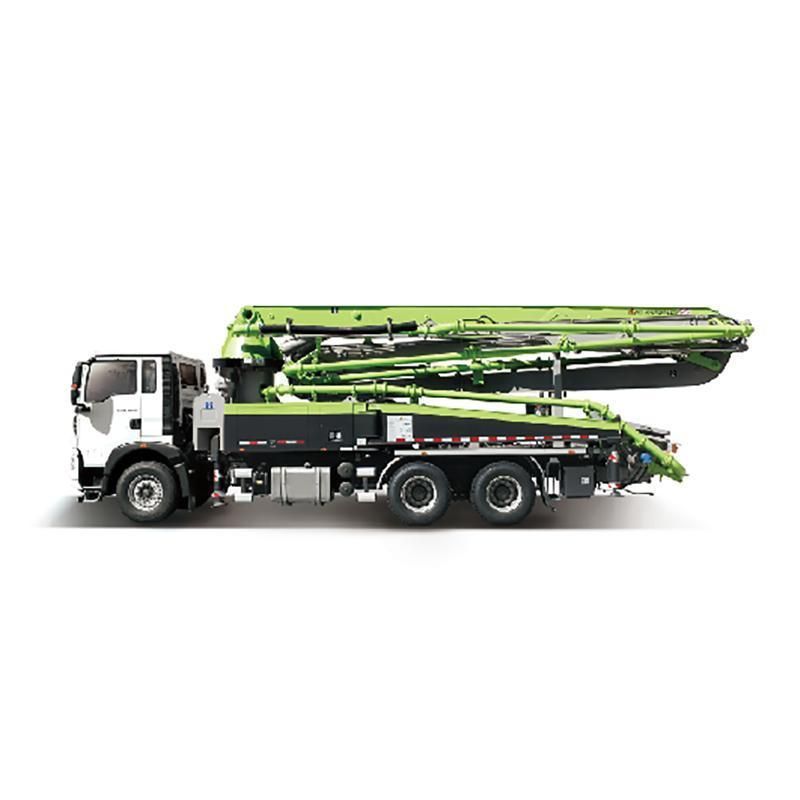

Zoomlion Truck Mounted Pumps 36X-5z 36m Portable Concrete Pump

Sinomada Heavy Industry (Changsha) Co., Ltd.

After-sales Service：Available
Warranty：2 Years
Type：Concrete Pump
Shotcrete Type：Wet
Machining Process：Hydraulic
Structure：Cylinder Type

Base Info

Model NO.：36X-5Z
Productivity：120m²,h
Feeding Height：1400mm
Vibrating Amplitude：2.6mm
Certification：ISO9001: 2000, CE
Condition：New
Color：White
Max. Theor Output：120,80 M3,H
Rated Working Pressure：35 MPa
Hopper Capacity：550 L
Filling Height：1540 mm
Transport Package：Roro,Nude
Specification：10740*2500*3886 mm
Trademark：Zoomlion
Origin：China
HS Code：87059090
Production Capacity：50units,Month

Description

ModelUnit36X-5ZPump UnitMax. Theor. output m³/h120/80Max. Theor. concrete output PressureMPa7/11Rated working pressure MPa35Pumping frequency min-124/15Hopper capacity L550Filling height mm1540Hydraulic system type opened loopDistribution valve S valveOil cylinder dia.×strokemmφ130×2100Concrete cylinder dia.×stroke mmφ230×2100Hydraulic oil cooling Wind coolingRecommended concrete slump cm12~23Max. aggregate dimension mm40Boom SectionStructure type 36X-5ZPlacing depth m35.5Max. horizontal distance m35.15Max. placing depth m23.13Slewing angle ±350°Boom number 5The length of boom section mm7700/5950/5950/5950/5950Sections folding angle 90°/180°/230°/180°/250°Pipe diameter mm125End hose length mm3000Min. height of opening placing boom mm8520Outriggers span (front×rear×side) mm6030×5950×7300Upper StructureUpper Structure Mass kg25000Dimensions(L×W×H)mm10740×2500×3886
Product Pictures
Zoomlion Truck Mounted Pumps 36X-5z 36m Portable Concrete Pump

Zoomlion Truck Mounted Pumps 36X-5z 36m Portable Concrete Pump

Zoomlion Truck Mounted Pumps 36X-5z 36m Portable Concrete Pump

Company Information

Category

Concrete Machinery

Engineering & Construction Machinery Parts

Mortar Spray Machine

Other Engineering & Construction Machinery

Paving Machinery

Pipe Jacking Machine

Rendering Machine

Recommended

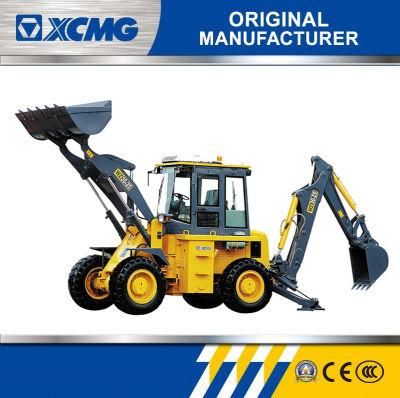

XCMG Official Wz30-25 2.5ton Mini Electric Backhoe Loader Sale
9500[Product Picture][Company Information][FAQ]1: What kind terms of payment can be accepted?A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.2: What certificates are available in Machinery?A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.3: What about the
XCMG Official Wz30-25 Small Garden Tractor Loader Backhoe
9500[Product Picture][Company Information][FAQ]1: What kind terms of payment can be accepted?A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.2: What certificates are available in Machinery?A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.3: What about the
XCMG Official Wz30-25 2.5ton Mini Front End Loader with Backhoe
9500[Product Picture][Company Information][FAQ]1: What kind terms of payment can be accepted?A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.2: What certificates are available in Machinery?A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.3: What about the

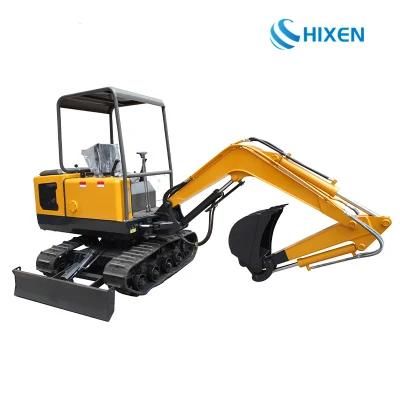

Multi-Functional Hydraulic Mini Small Excavator with Quick Coupler/Attach/ Connect Alternative
Main Features:1) High efficiency and low fuel consumption.2) Convenient operation, compact design, flexible movement.3) Adapting to various working conditions like hills and muddy areas.4) Solid cast iron counterweight improves working stability.5) Multi-purpose such as: Excavation, crushing, bulldo

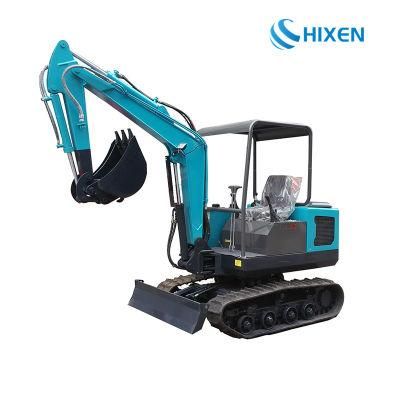

1.5 Tonne and 1.8 Tonne Small Excavator Equipment for Sale
Main Features:1) High efficiency and low fuel consumption.2) Convenient operation, compact design, flexible movement.3) Adapting to various working conditions like hills and muddy areas.4) Solid cast iron counterweight improves working stability.5) Multi-purpose such as: Excavation, crushing, bulldo

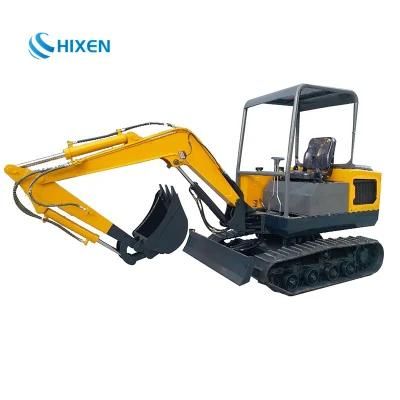

Mini Crawler Backhoe Excavator Digger 0.8 Ton - 3.5 Ton
Main Features:1) High efficiency and low fuel consumption.2) Convenient operation, compact design, flexible movement.3) Adapting to various working conditions like hills and muddy areas.4) Solid cast iron counterweight improves working stability.5) Multi-purpose such as: Excavation, crushing, bulldo

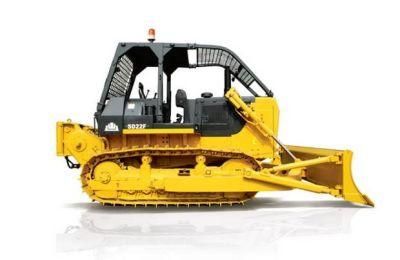

Chinese Good Supplier SD22 Bulldozers
Bladeblade typeStraight-tiltDozing capacity(m3)6.4Blade height x width(mm)1315 x 3725Max. Drop below ground(mm)538Max. Tilt adjustment(mm)735Operating weight(kg)2830Efficiency(m3/h)330TRAVEL SPEEDGear1st2nd3rdFoward(km/h)0~3.60~6.50~11.2Reverse(km/h)0~4.30~7.70~13.2FEATURES &APPLICATIONThe widen

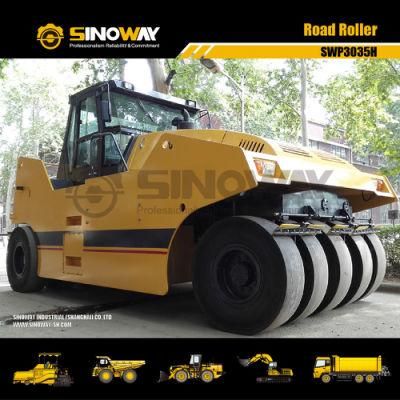

Heavy Duty 35ton Asphalt Compactor Wheel Road Roller with Inflated Tires
