• Model NO.：GMEC
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：84283200
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. GMEC Trademark GMEC Origin Zhengzhou HS Code 84283200 Production Capacity 1000 Sets Per Month

Product Description

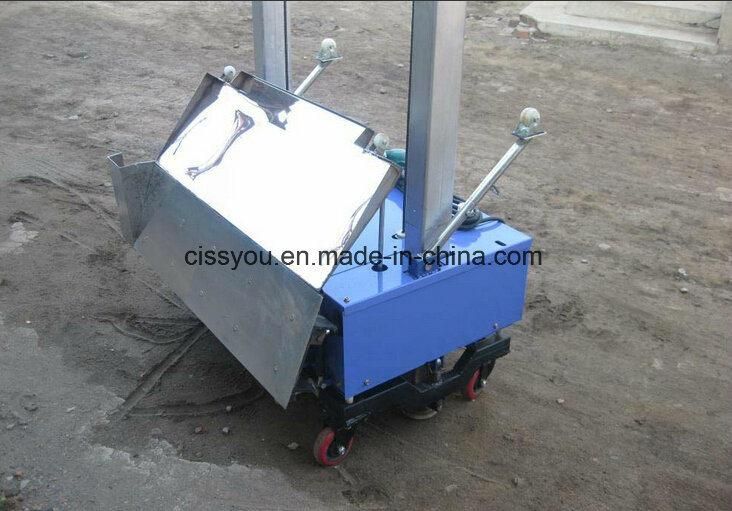

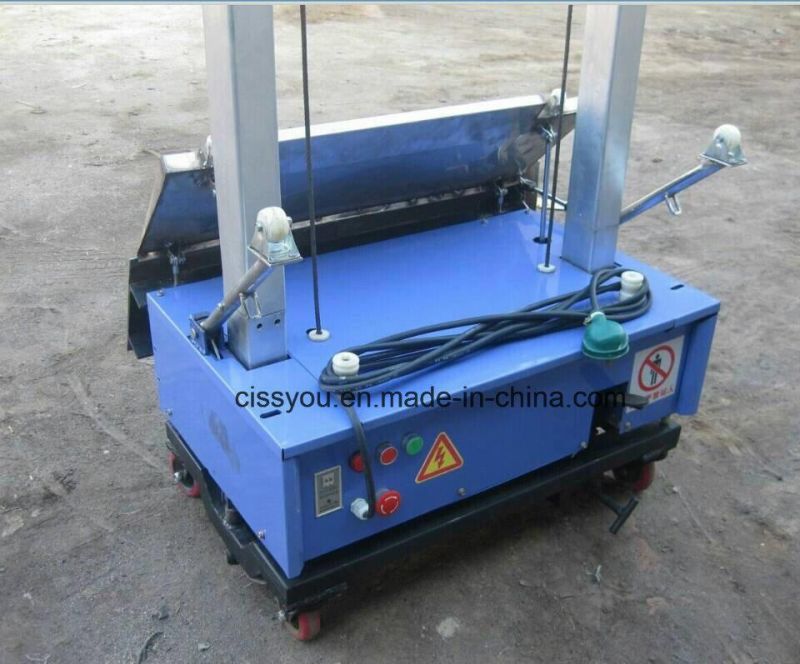

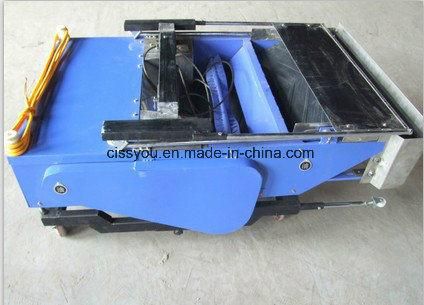

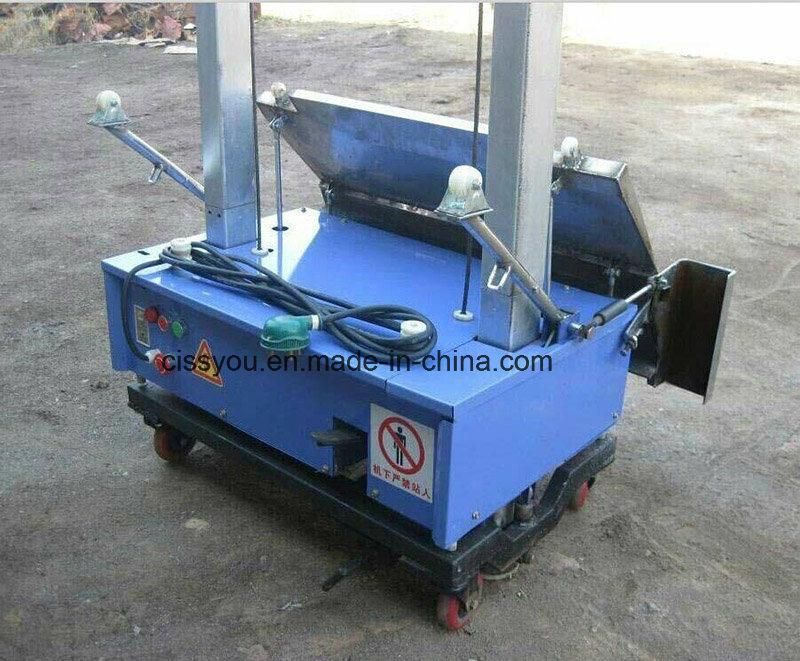

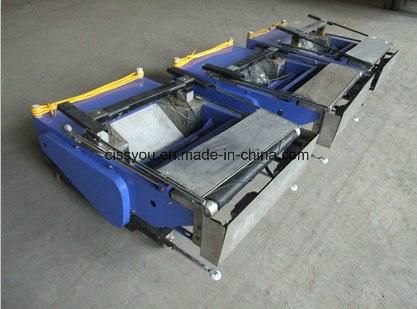

   Automatic wall cement plastering machine for wall render machine








1.Features of China Auto Cement Block Wall Plaster Rendering plastering Machine

1.The new design makes it is possible to operate the wall plastering just by one person.

2.The design of welding connecting two vertical rod makes the error of the wall plastering machine to a minimum scale. Vertical rod with remote control inclinometer can be easily rectified the vertical angle of the pipe thus to achieve zero error on the verticality aspect of the cement rendering machine.

3.In addition to reduce the width of wall plastering machine for wall to 700mm, the wall plastering machine can easily pass to the door. Heightening ash blocking plate makes the cement rendering machine contain more cement and sand.

4.Gear design to make the rising and falling of the pipe Synchronously. It changes the previous wire rope design and makes the machine more stable and accurately.


2. Application
brick wall, block wall, cement wall, internal wall, house, building, skyscraper, villa, etc.

3. Applied materials
cement, gypsum, lime, ready mix, perlite, general mortar, insulation mortar, clay mortar or similar materials.

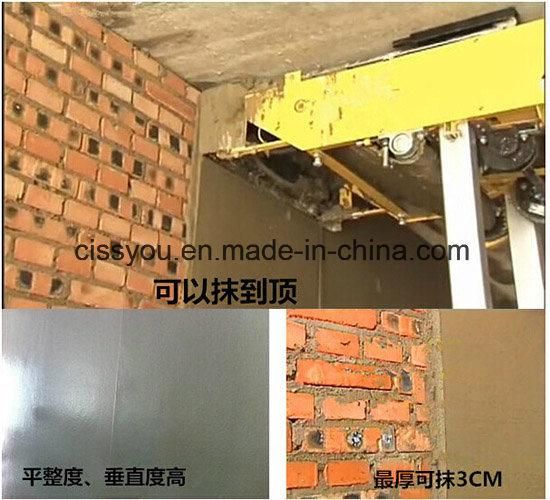

4. Comparison between machine and manual rendering.

Comparison	Rendering Machine	Manual Rendering
Speed/8h	500-750m2	less than 50m2
Finishing	smooth & flat with mirror finishing.	always reveal crack, bubbles, etc.
Coating	Once coating while render up and smooth down	several times coating by numberless trowels
Procedures	Automatic by machine	adjust leveling by square bar again and again
Extra supporting	electricity	scaffolding, mop, trowel, square bar, lots of extra tools
Labor Intensity	two workers.	a lot more. Hard work.
Time Consumption	saving 70% - 80% time	long time work

5. After-Sale Service:
1. Free training course in China, including engineering lecture, operation instruction and practices.
2. Engineers sent to your construction sites for operation, maintenance training on site.


Single-phase motor	0.65kw	Startup mode	Control button ( distribution box)
Motor speed	1440n/min	Reducer	Reduction ratio30 :1
Plastering speed	5m/39s	Plaster width	0.3m- 0.8m
Plastering height	0.5- 5m	Plaster efficiency	2.56 /39s
Plastering time	39s	A plastered area	2.56/39s
Secondary calender time	39s	Secondary pressure light area	2.56/39s
Flatness error	≤3mm	Vertical error	≤ 3mm
Flatness, plaster thickness , Plaster joints, adjust the motor	24v 30w	Walking speed	10m/ Minute
Vertical adjustment motor	24v 30w	Alignment guide motor	550W
Walking mot	550w	Reducer	30 :1
Lifting motor	0.65kw	Reducer	30 :1
Console shape size	30cm*50cm*80cm	Console weight	20kg
The plaster drive motor	650w	Reducer	30 :1
The main rail height	176cm	Positioning rail height	176cm
