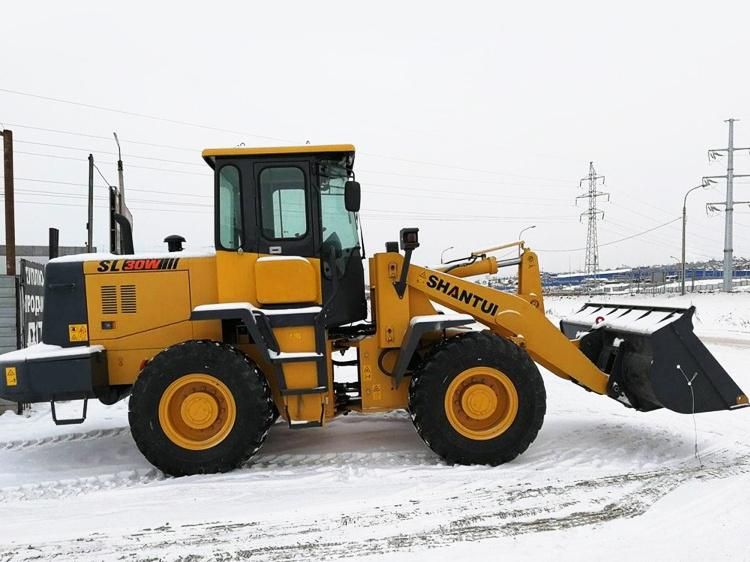

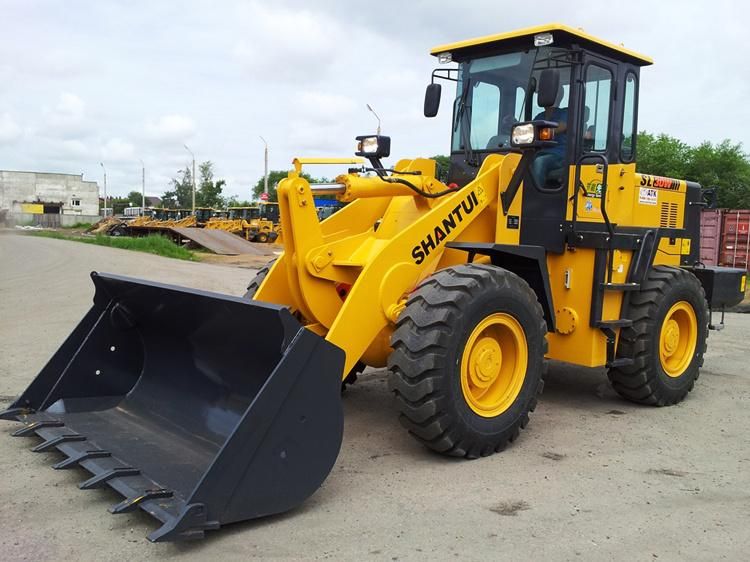

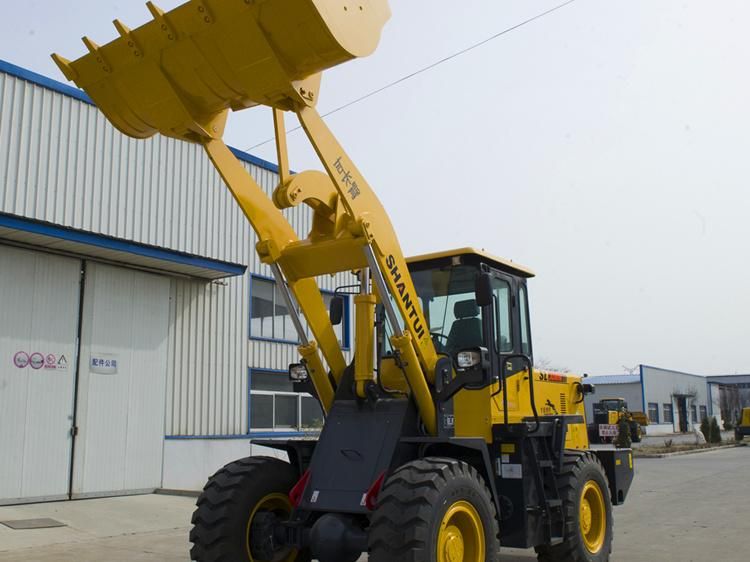

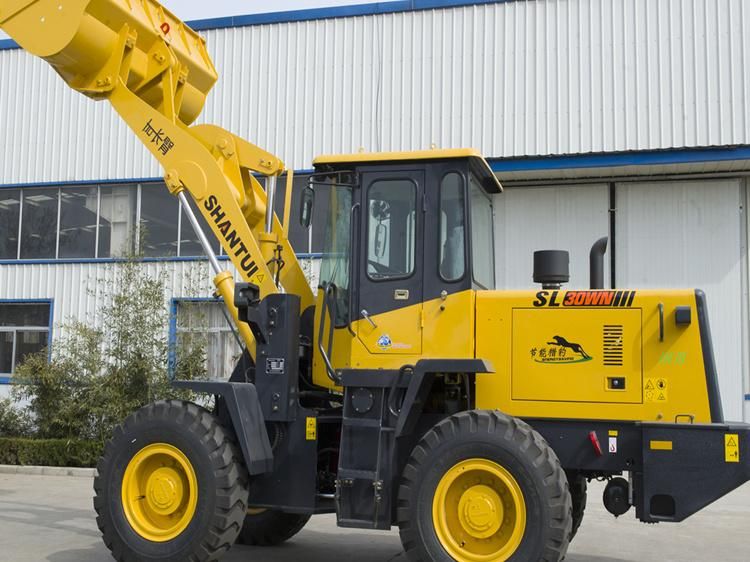

Shantui Small Loader L36-B3 with 1.3cbm Bucket in Stock

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Certification:ISO, CE
  • Condition:New
  • Rated Load:1-3t
  • Transmission:Hydraulic
  • Load and Unload Mode:Front Discharge
  • Walking Mode:Wheeled

Base Info

  • Model NO.:L36-B3
  • Type:Small Loader
  • Operating Weight (Kg):10500
  • Total Cycle Time (S):9
  • Engine Model:Wp6
  • Rated Power/Rated Speed (Kw/Rpm):92,2000
  • Wheelbase (mm):2700
  • Fuel Tank (L):500
  • Rated Bucket Capacity (Cbm):1.7
  • Rated Loading Capacity (T):3
  • Transport Package:Nude Package,RO-RO,Bulk Shipment,Suitable Containe
  • Specification:7170*2484*3235
  • Trademark:shantui
  • Origin:China
  • Production Capacity:300piece,Month

Description

Basic Info.

Model NO. L36-B3 Type Small Loader Operating Weight (Kg) 10500 Total Cycle Time (S) 9 Engine Model Wp6 Rated Power/Rated Speed (Kw/Rpm) 92/2000 Wheelbase (mm) 2700 Fuel Tank (L) 500 Rated Bucket Capacity (Cbm) 1.7 Rated Loading Capacity (T) 3 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 7170*2484*3235 Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

Shantui Small Loader L36-B3 With 1.3Cbm Bucket In StockContact  Ash for more information



CHARACTERISTICPower System

The drivetrain system of Weichai low-speed energy-saving engine + Shantui low-speed high-capacity torque converter + fixed shaft transmission features low fuel consumption, low malfunction rate, and high energy-saving and efficiency.

Driving/Riding Environment

The new generation cab with all-new design optimization guarantees broader vision and more fashionable appearance.

The framework structure in four sides guarantees high safety, comfort, and reliability.

The extensively adjustable seat provides the driver with the most comfortable operation;

It provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.

Operating performance

The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The optional pilot control system features flexible and convenient operations.

High operating efficiency

The new bucket in optimized bucket shape is applied to improve the bucket fullness rate and shoveling and loading efficiency.

High tipping load, good heavy-load stability, and high efficiency;

Weichai low-speed engine special for Shantui and Shantui's self-made low-speed high-capacity torque converter achieve optimal match performance, high traction force, high insertion force into material pile, and good startup performance (Loaded startup capability even in 3rd gear).

The double pump confluence hydraulic working system and the load-sensing steering system are applied to ensure flexible operations and fast and stable steering speed. The 125 large-bore lifting cylinder is applied to increase the lifting force by 12% and the total cycle time is as low as 9s to achieve higher shoveling and loading efficiency.

Reliable performance

The structural parts, including front and rear frames and working device, are optimized and enhanced, the CAE analysis is taken for critical parts, and the main welded parts are welded by robots to ensure reliable welding quality;

The hydraulic system parts adopt domestic renowned brand products.

The radiator system adopts composite integrated radiator to enhance the heat dissipation area and achieve better heat dissipation performance. The fan diameter is enlarged to increase the airflow rate and improve the system heat dissipation performance.

The patented double locating structure (Upper and lower articulated joints) features flexible steering and stable and reliable performance, with the life more than 2 times of that of single locating structure.

Convenient maintenances

The transmission oil filler pipe is directed and the maintenance locations (Such as booster pump) are optimized to ease the routine repairs and maintenances.


PARAMETER
Parameter nameL36-B3 SG (Sandstone version)L36-B3 CH (Coal version)L36-B3 MH (Ore version)
Performance parameters
Operating weight (Kg)105001050010500
Maximum dumping height (mm)3057 (Extended boom)3200 (Long boom)3055 (Long boom)3040 (Extended boom)
Dumping reach (mm)906 (Extended boom)886 (Long boom)1057 (Long boom)936 (Extended boom)
Maximum breakout force (kN)≥105≥100≥105
Total cycle time (s)999
Engine
Engine modelWP6WP6WP6
Rated power/rated speed (kW/rpm)92/200092/200092/2000
Overall dimensions
Overall dimensions of machine (mm)7170*2484*32357350*2450*32357265*2490*3235
Driving performance
Forward speed (km/h)F1:0-7, F2:0-12, F3:0-23, F4:0-37F1:0-7, F2:0-12, F3:0-23, F4:0-37F1:0-7, F2:0-12, F3:0-23, F4:0-37
Reversing speed (km/h)R1:0-8.3, R2:0-28R1:0-8.3, R2:0-28R1:0-8.3, R2:0-28
Chassis System
Wheelbase (mm)270027002700
Tank capacity
Fuel tank (L)150150150
Working device
Rated bucket capacity (m³)1.72.21.7
Rated loading capacity (t)333
