• Model NO.：LTC212
• Travel Speed：35cm,s
• Centrifugal Force：40KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Transport Package：Nude Package
• Specification：2450*820*1030mm
• Trademark：LUTONG
• Origin：China
• Production Capacity：5000

Basic Info.

Model NO. LTC212 Travel Speed 35cm/s Centrifugal Force 40KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package Nude Package Specification 2450*820*1030mm Trademark LUTONG Origin China Production Capacity 5000

Product Description

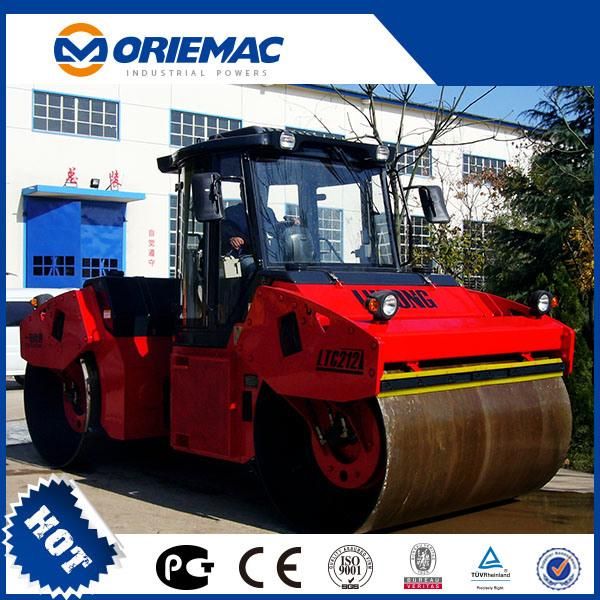

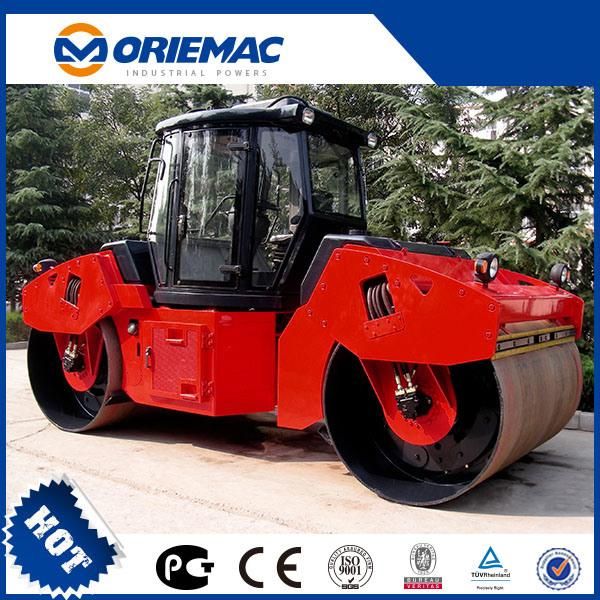

Full Hydraulic Lutong Vibratory Roller 12 Ton LTC212

Product Description

Technical Paramters


LTC212 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc. Main Features: 1. LTC212 Hydraulic double drum vibratory road roller. Full hydraulic two wheel drive and vibration. 2. Double frequency double vibration system. 3. Hydrostatic center articulated steering, patented crab mechanism. 4. Cabin with air conditooner, comfortable and spacious, the flexible steering seat facilitates the operation. 5. The driver's cabin can be turned on one side as a whole, to facilitate maintenance. 6. Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER of German manufacturers REXROTH. Model   LTC212 Operating mass kg 12000 Font axle load kg 6000 Rear axle load kg 6000 Static linear load N/cm 286 Crabwise movement distance mm ± 170 Water tank capacity L 2x600 Fuel tank capacity L 154 Hydraulic tank capacity L 65 Vibration frequency mm   High ampl mm 0.8 Low ampl mm 0.4 Vibration frequency Hz   High ampl Hz 40 Low ampl Hz 46 Centrifugal force kN   High ampl kN 160x2 Low ampl kN 90x2 Travel speed km/h 0-12 Turning radius mm 7000 Grade ability % 40 Steering angle . ± 35 Drum diameter mm 1350 Drum width mm 2100 Drum rim thickness mm 20 Transverse swing angle of the vibrating wheel . ± 8 Type of water spray   pressure Wheel base mm 3717 Overall length mm 5062 Overall width mm 2250 Overall height mm 3000 Ground clearance mm 324 Diesel model   6BT5.9 Diesel power kW 110
