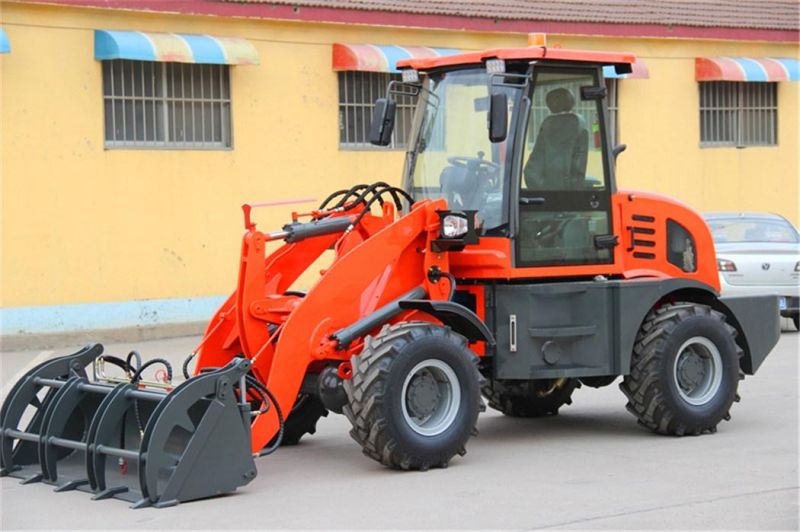

Mini Dumper Zl15f Skid Steer Wheel Loader with Construction Equipment
Qingdao Zongjin Engineering Machinery Co., Ltd.- Warranty：1 Year
- Certification：TUV, ISO, CE, Rops & Fops
Base Info
- Model NO.：WL150
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Bucket Indicator：Yes
- Optional Engine：Xichai 490,Xinchai C490bpg Euro III,Xinchai A498bt
- Standard Tyres：20.5-16 Agricultural
- Optional Tyres：23.5-16 Agricultural
- Min Turning Radius(mm)：3000
- Brake Type：Oil Brake(Vacuum Booster)
- Gearbox Type：Fixed-Spindle Power Shift
- Max. Breakout Force(Kn)：43
- Transmission System Type：Single-Phase Single-Stage Radial-Inward Turbine Tr
- Model of Torque Converter：Yj240
- Gear Shift：2 Gears Ahead,2 Gear Astern
- Engine Type：in-Line Arrangement, Water Cooling, Four-Stroke
- Rated Load(Kg)：1500
- Hydraulic Systemdistribution of Work VAL：Zl20b
- Hydraulic System Working Pump：Cbgj1045,Cbgq1018
- Transport Package：1 Set,20gp Container, 3 Sets,40hq
- Specification：LxWxH(mm) 5280x1700x2580
- Trademark：WOLF
- Origin：Shandong
- HS Code：84295100
- Production Capacity：3000 Sets,Year
- Package size per unit product：510.00cm * 170.00cm * 258.00cm
- Gross weight per unit product：3600.000kg
Description
SpecificationOverall Weight(Kg) 3600 L×W×H(Mm) 5280×1700×2580 Rated Bucket Capacity(M3) 0.7 Rated Load(Kg) 1500 Maximum Dump Height (Mm) 2850 Bucket Indicator Yes Max. Breakout Force(KN) 43 Engine Standard Model Changchai490 Type In-Line Arrangement, Water Cooling, Four-Stroke Rated Power(Kw) 39KW Rated Speed(R/Min) 2200 Optional Engine Xichai 490/Xinchai C490BPG Euro III/Xinchai A498BT1 Euro III Transmission System Model Of Torque Converter YJ240 Type Single-Phase Single-Stage Radial-Inward Turbine Triplex Gearbox Type Fixed-Spindle Power Shift Gear Shift 2 Gears Ahead,2 Gear Astern Hydraulic System Distribution Of Work Valve ZL20B Working Pump Cbgj1045,Cbgq1018 Steering System Type Articulated Hydraulic Steering Max. Turning Angle 27±1° Min Turning Radius(Mm) 3000 Brake System Brake Type Oil Brake(Vacuum Booster) Tyres Standard Tyres 20.5-16 agricultural Optional Tyres 23.5-16 agricultural

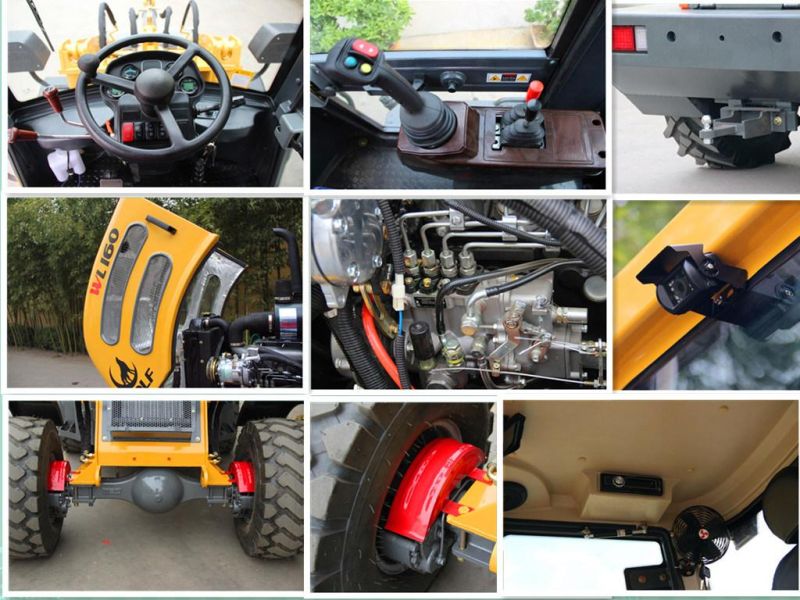

Detailed pictures about WL150 wheel loader

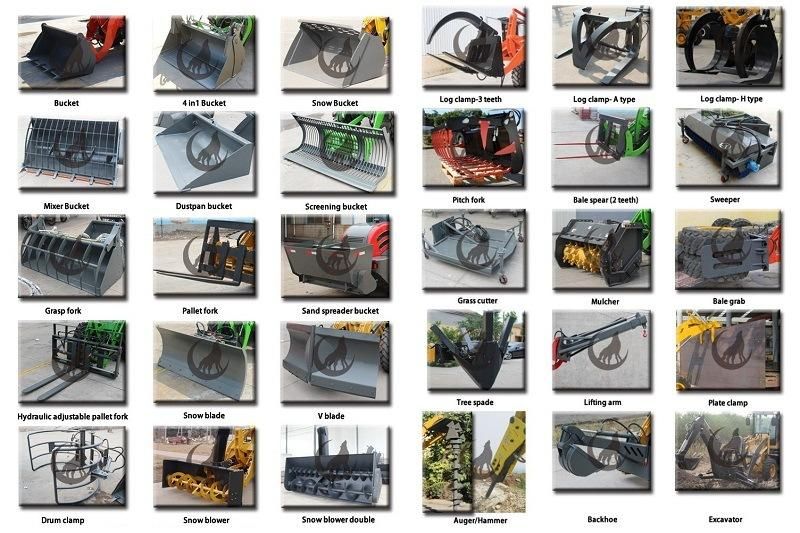

Optional Attachments for WL150, she can do different jobs for you.
2. Products Categories
3. Company Profile
4.Company Strength Display
5. Engineering Case
6.Products Packing Logistics
7.FAQ
FAQ:
1.How long is your lead time?
30~40days after receiving the deposit
2.How is the warranty?
Our warranty time is 1 year from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WOLF?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from WOLF?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose WOLF?
Wolf Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
8.Our slogan
QUALITY WITHOUT COMPROMISE
