New Construction Equipment Zl968 Wheel Loader with Concrete Mixer
Qingdao Zongjin Engineering Machinery Co., Ltd.- Warranty：1 Year
- Certification：TUV, ISO, CE, Rops & Fops
Base Info
- Model NO.：wl680
- Condition：New
- Rated Load：6-9t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Rated Bucket Capacity：3.3 Cubic Meter
- Rated Power：175,179 Kw
- Tyre：26.5-25
- Max.Dump Height：2950 mm
- Operation Weight：19800kg
- Maximum Tractive Force：158 Kn
- Maximum Breakout Force：204 Kn
- Maximum Grade Ability：30°
- Maximum Dump Reach：1255 mm
- Minimum Turning Radius：6500 mm
- Maximum Torque：843n.M
- Min Fuel-Consume Ratio：≤220g,Kw.H
- Gear Shift：2 Forward Shift 1reverse Shift
- Maximum Speed：38km,H
- Wheel Base：3350mm
- Transport Package：1 Set,20gp Container, 3 Sets,40hq Conatiner.
- Specification：LxWxH(mm8250x3100x3400
- Trademark：WOLF
- Origin：Shandong
- HS Code：84295100
- Production Capacity：3000 Sets,Year
- Package size per unit product：839.00cm * 288.00cm * 352.00cm
- Gross weight per unit product：18200.000kg
Description
PerformanceRated load 6000kg Overall weight 19800kg Rated bucket capacity 3.3m³ Maximum tractive force 158KN Maximum breakout force 204KN Maximum grade ability 30° Maximum dump height 2950mm Maximum dump reach 1255mm Overall dimension (L×W×H) 8250×3100×3400mm Minimum turning radius 6500mm Engine Model WD10G240E21
Cummins 6CTA8.3-C240 Type Inline water cooling dry cylinder injection No. of cylinder-bore/stroke 6-126×130mm Rated power 175kw/ 179kw Maximum torque 843N.m Min fuel-consume ratio ≤220g/kw.h Transmission System Torque converter Double turbine four original Gearbox number ZL60601006 Gear shift 2 forward shift 1reverse shift Maximum speed 38km/h Drive axles
Main reducing spiral Bevel gear grade 1 reduction Decelerating mode Planetary reduction,grade 1 Wheel base (mm) 3350mm Wheel tread 2250mm Minimum ground clearance 450mm Hydraulic system System working pressure 18Mpa Boom lifting time 6.15±0.25s Total time 10.65±0.5s Fuel tank capacity 300L Function of leveling automatically Yes Brake system Service brake Air over hydraulic disc brake on 4 wheels Parking brake Manual parking brake Tyre Type specification 26.5-25 Front tyre pressure 0.4Mpa Rear tyre pressure 0.35Mpa

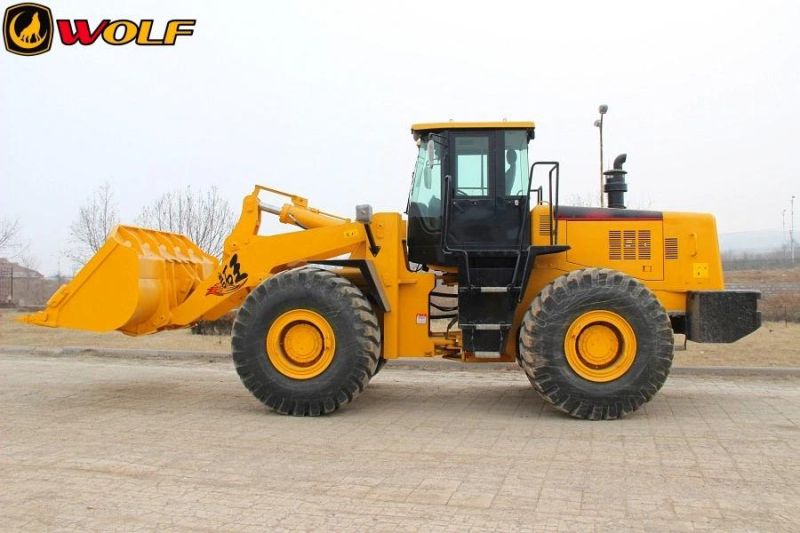

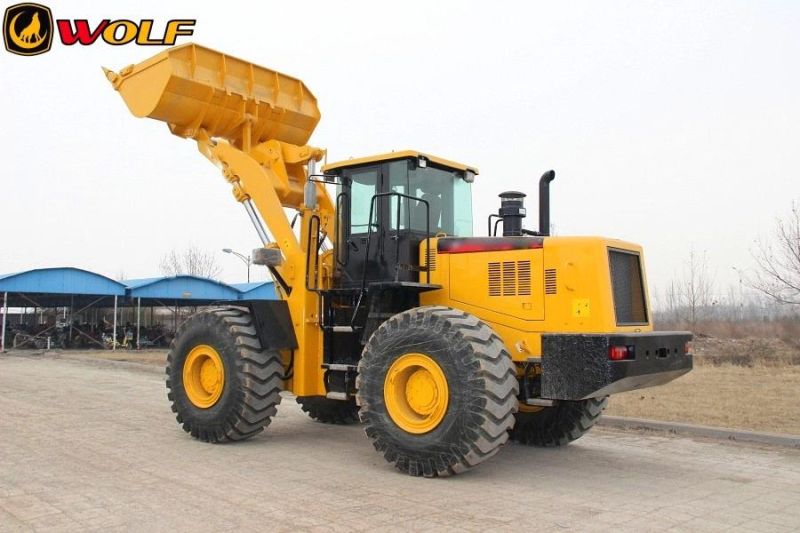

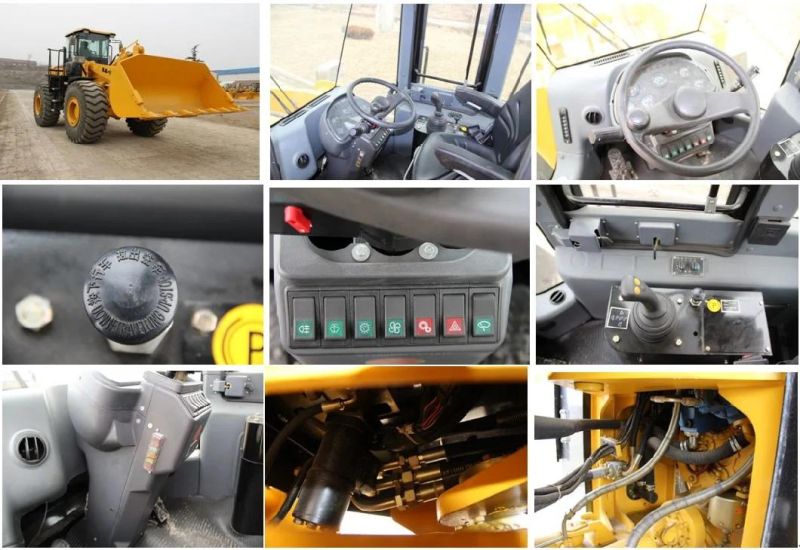

Detailed pictures about WL680 wheel loader
2.Products Categories
3.Company Profile
4.Company Strength Display
5.Engineering Case
6.Products Packing Logistics
7.FAQ
FAQ:
1.How long is your lead time?
30~40days after receiving the deposit
2.How is the warranty?
Our warranty time is 1 year from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WOLF?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from WOLF?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose WOLF?
Wolf Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
8.Our slogan
QUALITY WITHOUT COMPROMISE
