High Quality New Style Bull Dozer with Big Bucket Manufacture Price
Jining VOTE Machinery Technology Co., Ltd.- Type：Universal Type
- Transmission：Power Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：131-235kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：VT-160,VT-180,VTG-220,VT-320,VT-160TL
- Condition：New
- Color：Customized
- OEM：Accept
- Spare Parts：According to Customer Requirements
- Product Name：Bulldozer
- Application：Construction Project
- Control：Hydraulic ,Mechanical
- Transport Package：Bulk
- Specification：Multiple models optional
- Trademark：VOTE
- Origin：China-Shandong
- HS Code：8431420000
- Production Capacity：50,Month
Description
Main ParametersModel VT-160 VT-220 VT-320 VT-160TL Engine model Weichai WP10G178E355 Cummins NT855-C280S10 Cummins NTA855-C360S10 Weichai WP10G178E355 Rated power(kw/rpm) 131/1850 175/1800 235/2000 131/1850 Displacement(L) 9.726 14.01 14.01 9.726 Max.torque(N.m/rpm) 830/1000-1200 1030/1250 1440/1400 830/1000-1200 Operating weight(Kg) 17000 23500 37200 18300 kg Dimension(no ripper)(mm) 5140*3388*3032 5492*3726*3742 6885*4128*3645 5256*4153*3072 Min ground clearance(mm) 405 405 500 492 Ground pressure(MPa) 0.067 0.072-0.077 0.105/0.09/0.078 0.026 Track shoe width(mm) 510 560/610/660 560/660/760 1100 Track gauge(mm) 1880 2000 2140 2300 Dozing capacity( m3) 4.55 6.4 10 3.85 Blade width(mm) 3390 3725 4130 4145 Blade height(mm) 1150 1315 1590 962 Maxdrop below ground(mm) 540 540 560 488 Pitch(mm) 203.2 216 228 203.2 Quantity of track link 37 38 41 Quantity of Carrier rollers 4 4 4 2 Quantity of Track rollers 12 12 14 7 Max pressure(MPa) 14 14 14 14 Discharge(L/min) 213 262 355 227 Max tractor force(KN) 146 202 280 Grade ability(°) 30 30 30 30 Forward(km/h) 3.29/5.82/9.63 3.6/6.5/11.2 3.6/6.6/11.5 2.67/3.76/5.41/7.62/11.13 Reverse(km/h) 4.28/7.59/12.53 4.3/7.7/13.2 4.4/7.8/13.5 3.48/4.9/7.05/9.92
1. Cummins engine gives you the power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.
2. The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.

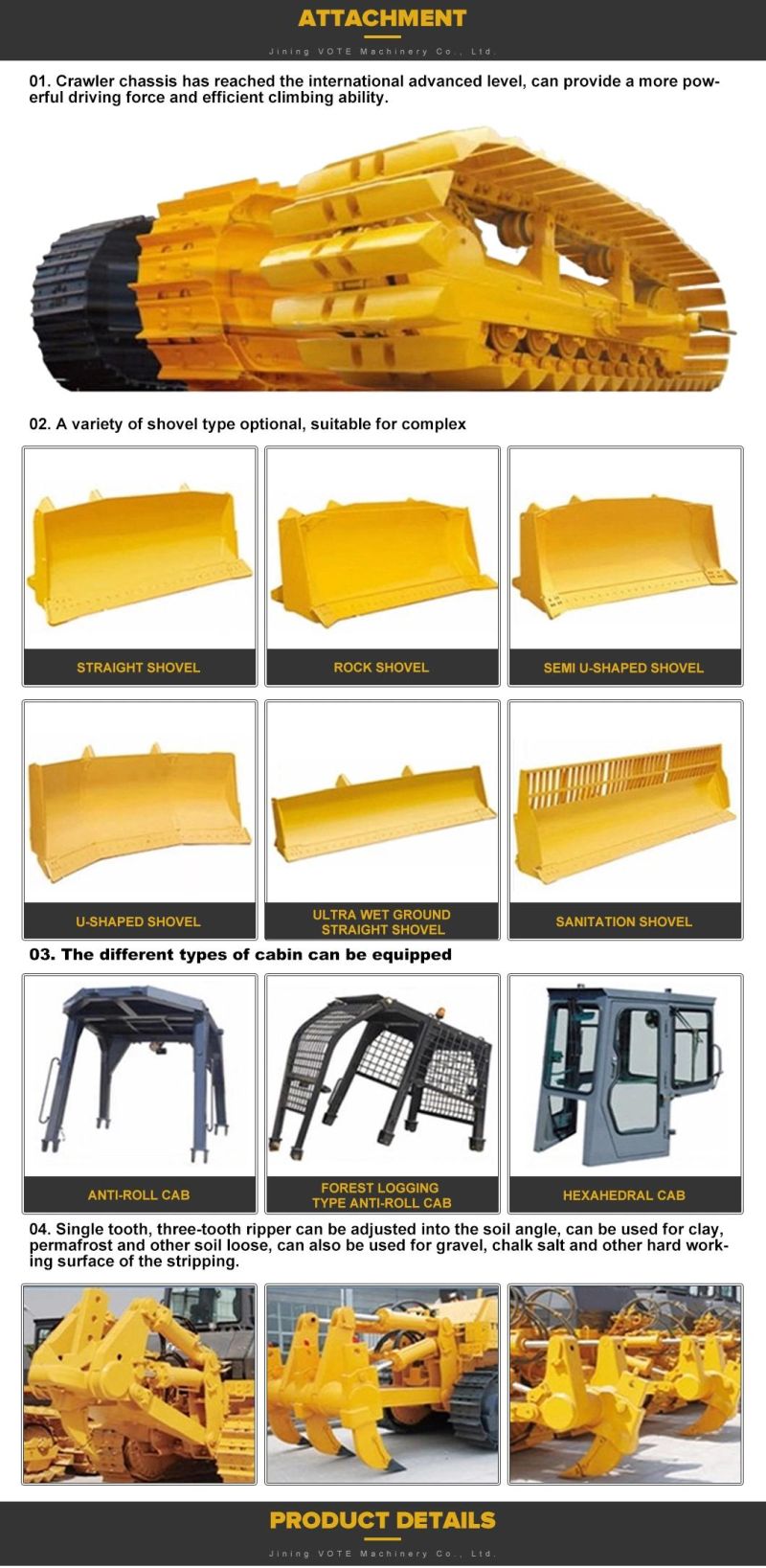

3. Quality undercarriage parts including rollers, tracks and chains ensures the stable and good performance of the dozer. Different types of the tracks can meet different working condition, like dryland, wetland and rock conditions.
4. Roomier cab with a wider entry offers added comforts like a adjustable seat, manually adjustable armrests, larger cup holder and auxiliary power port. Smoother shifting and a quieter.
5. The hexahedral cabin for standard type dozer and different types of cabins can be equipped, like ROPS cabin, forest logging anti-roll cabin etc.
6. The standard straight tilt blade features powerful cutting force and variety of shovels can be optional, like rock shovel, U-shaped shovel, semi-U shaped shovel, sanitation shovel etc.
7. Variety devices can be equipped with crawler bulldozer, like three tooth ripper, winch.
OUR WORKSHOP AND TEAM:
Love and trust make our team more and more stronger!
Our product already exported to the USA, Europe, Asia, Middle east , and Australia etc.
Pls believe in our professional after-sales service, Everything is done for the product and customers!
