• Model NO.：FYL-860
• Travel Speed：0-5km,H
• Centrifugal Force：20kn
• Certification：EPA, CE
• Condition：New
• Power(W)：6HP
• Weight：750kg
• Drive Type：Hydraulic Drive
• Nominal Amplitude：0.5mm
• Steel Wheel Size：540*740mm 425*675mm
• Engine Model：Dieselcf178f
• Grade Ability：30%
• Starting Mode：Hand,Electric
• Transport Package：Wooden Case
• Specification：1720*860*1400mm
• Trademark：FURD
• Origin：Shandong, China (Mainland)
• HS Code：8429401900
• Production Capacity：500pieces,Month

Basic Info.

Model NO. FYL-860 Travel Speed 0-5km/H Centrifugal Force 20kn Certification EPA, CE Condition New Power(W) 6HP Weight 750kg Drive Type Hydraulic Drive Nominal Amplitude 0.5mm Steel Wheel Size 540*740mm 425*675mm Engine Model Dieselcf178f Grade Ability 30% Starting Mode Hand/Electric Transport Package Wooden Case Specification 1720*860*1400mm Trademark FURD Origin Shandong, China (Mainland) HS Code 8429401900 Production Capacity 500pieces/Month

Product Description

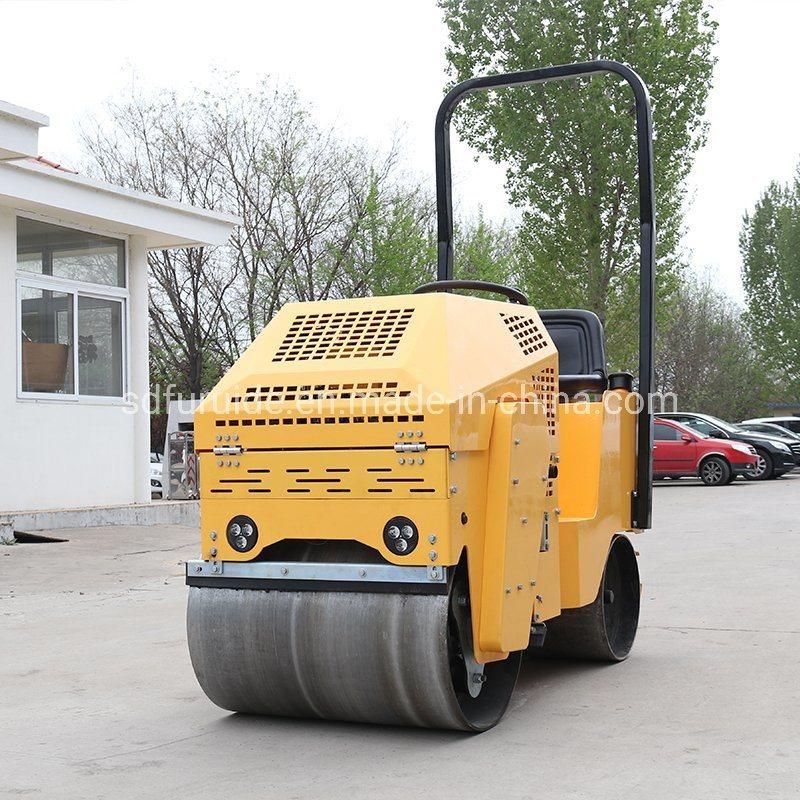

Mini asphalt roller soil compactor vibratory roller smooth drum roller for sale FYL-860
For compaction of asphalt surface, compaction of gravel, sand and other projects.The vibratory road roller is small-size vibratory roller, applied to mend and maintain various roads, expressway, roadside walk, parking area, sports ground and garden lawn.They are especially suitable for compaction of narrow areas as pipeline channel and drainage trench etc.

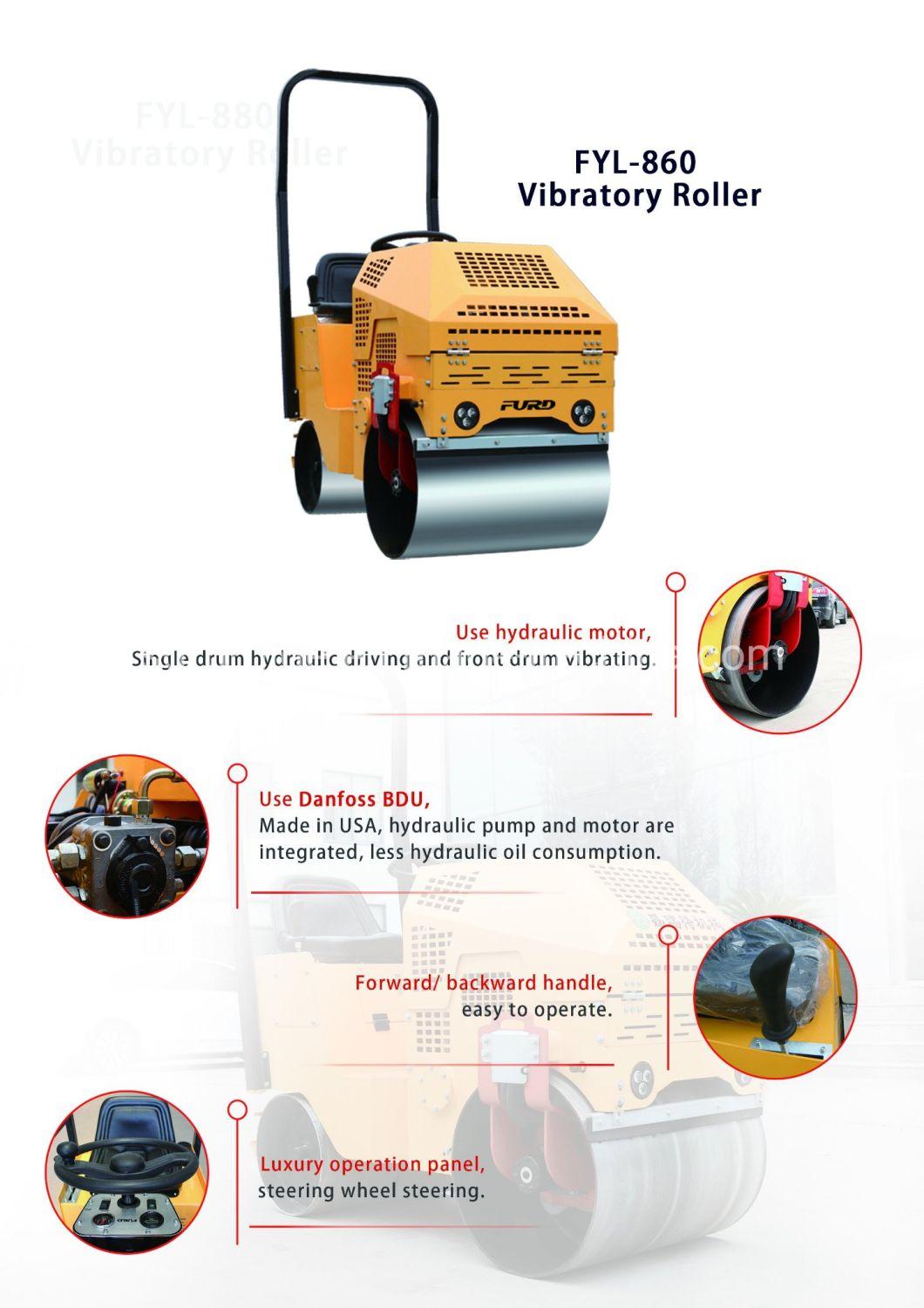

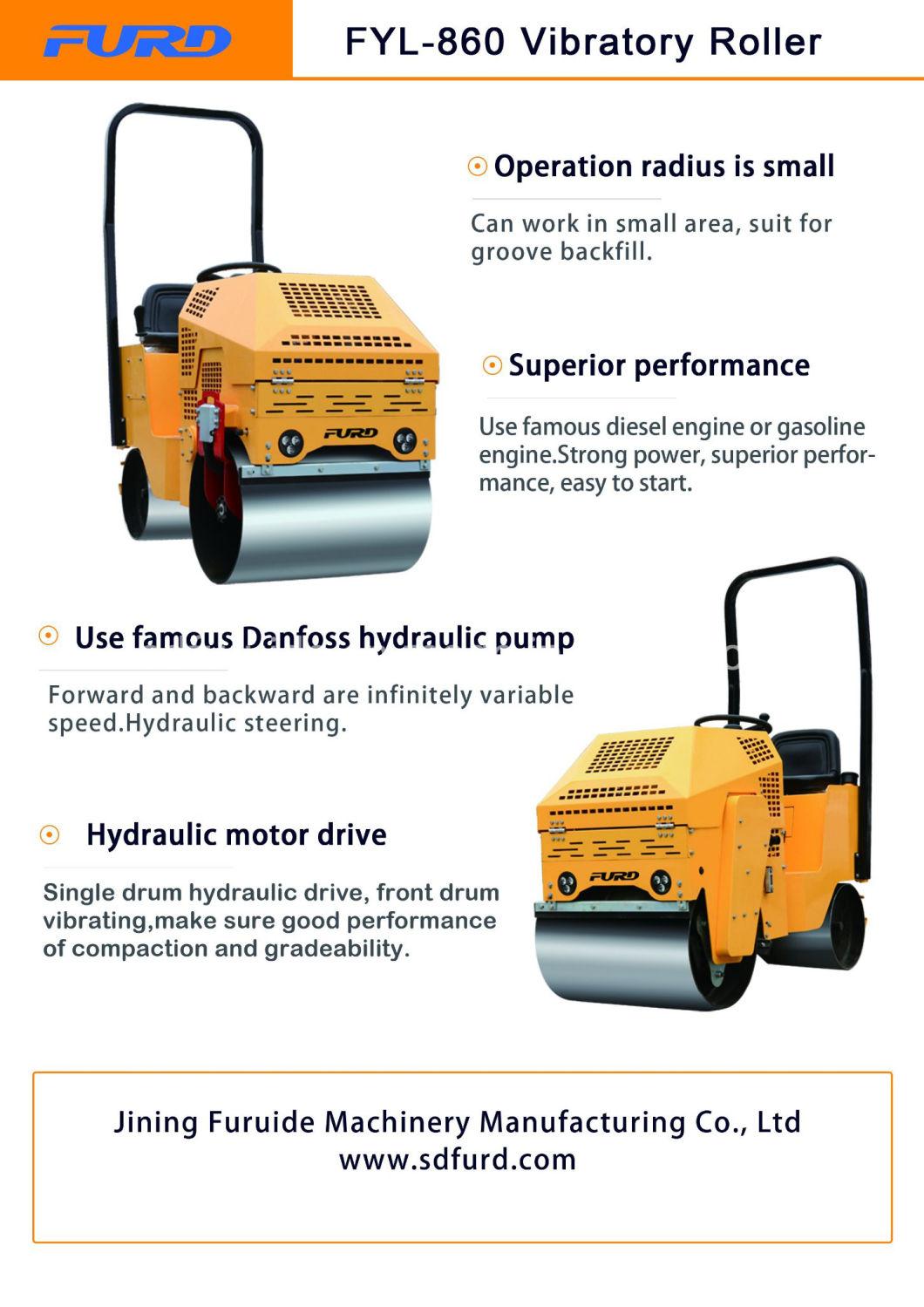

Feature
1.Operating radius is small, can work in a narrow area;Mini Vibratory Roller
2.Adopt Imported DANFOSS pump,hydraulic motor directly drive infinitely variable walking speed,
3.Famous diesel engine or HONDA gasoline engine, quality assurance, superior performance;
4.Electric key strat,easy to operate;Mini Road Roller Compactor
5.Front wheel vibration,vibration force is 2 ton,with water tank can compact different kinds of pavement;
6.Surface spray, beautiful appearance, rust protection;

Technical Parameter

Model	FYL-860	Model	FYL-860
Walk Speed	0-5km/h	Water tank	20L
Gradeability	30%	Hydraulic oil tank	19L
Drive Type	Full hydraulic drive	Engine Model	CF178F/HONDA GX270
Vibration Control	Electromagnetic Clutch	Power	6.0HP/9.0HP
Static linear load	55N/cm Mini Vibratory Roller	Steel Wheel Size	φ540*740mm  φ425*675mm
Nominal amplitude	0.6mm	Packing Size	1720X860X1400mm
Vibration frequency	70Hz	Net Weight	800kg
Exciting force	20KN	Starting Mode	Key start

Figure Photos



Road Roller Series


Figure Photos

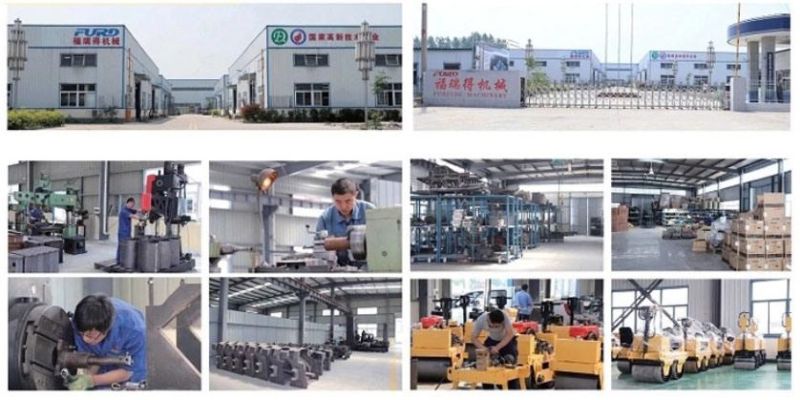

Factory

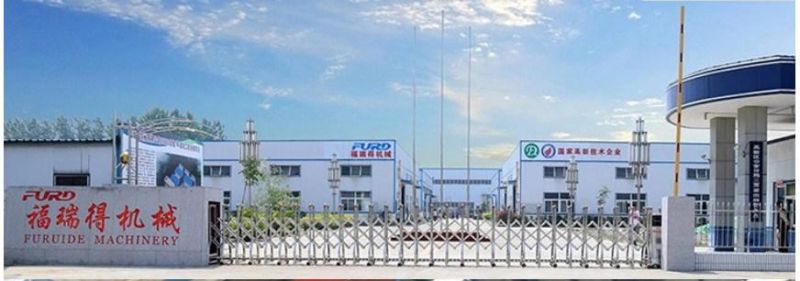

Jining Furuide Machinery Manufacturing Co., Ltd

Jining Furuide Machinery Manufacturing Co., Ltd is high-tech enterprise specialized ín research& development and manufacture of Vibratory Road Roller since 2006. Our main products are: Road Roller, Concrete Laser Screed, Concrete Truss Screed, Mobile Light Tower, Road CrackSealing Machine with CE, EPA, ISO 9001 and ISO1400 certification.

We have professional R&D team in design and producing all of light construction machines,with strict quality control system and continued efforts to ensure high quality of our products.Our products have good quality and competitive prices, have been exported to more than 50countries of the world, such as Australia, America, Canada, Russia, Brazil, Qatar, UAE and soon. FURD aim to supply firstclass products to the domestic market and the global.
