Cheap 12.5ton 6212e with 119kw/2200rpm Engine Power Hot Selling
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Road Roller
- Working Method：Vibration
- Axle：.
- Grinding Wheel Type：Slot Grind
Base Info
- Model NO.：6212E
- Compaction Depth：.
- Engine Type：Diesel Engine
- Travel Speed：0-12 Km,H
- Centrifugal Force：159,103 Kn
- Certification：CE, ISO 9001:2000
- Condition：New
- Operating Mass：12500 Kg
- Mass on Vibrating Drum：6250 Kg
- Mass on Drive Axle：6250 Kg
- Front Drum Static Linear Load：293 N,Cm
- Engine Model：Qsb4.5
- Emission Regulation：Stage III
- Rated Power：119kw,2200 Rpm
- Vibration Frequency：45,50 Hz
- Nominal Amplitude：45,50 Hz
- Drum Diameter：1300 mm
- Min. Groundclearance：320 mm
- Wheelbase：3585mm
- Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
- Specification：5050 mm*2280*mm*3170*mm
- Trademark：SINOMADA
- Origin：China
- HS Code：8429521200
- Production Capacity：300piece,Month
Description
- Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing's working life to beyond 10,000 hours increasing productivity and reducing part wear.
- LiuGong's innovative auto throttle reduces fuel consumption by automatically switching the engine to idling mode during periods of inactivity.
- Soft starting and braking technology significantly improves the operator's experience helping to reduce pavement damage and ensure a high quality finish to every job.
Specifications 6120E:
Operating Mass
12500 kg
Mass On Front Drum
6250 kg
Mass On Rear Axle
6250 kg
Front Drum Static Linear Load
293 N/cm
Rear Drum Static Linear Load
293 N/cm
Model
Cummins QSB4.5
Emission Regulation
Stage III
Rated Power
119 kW (162 hp) @ 2200 rpm
Vibration Frequency Low
45/50 Hz
Nominal Amplitude Low
0.75/0.4 mm
Centrifugal Force Low
140/85 kN
Vibration Frequency High
50/67 Hz
Nominal Amplitude High
0.8/0.3 mm
Centrifugal Force High
159/103 kN
Drum Diameter
1300 mm
Drum Width
2130 mm
1st Maximum Speed, fwd
0-6 km/h
2nd Maximum Speed, fwd
0-8 km/h
3rd Maximum Speed, fwd
0-12 km/h
Theoretical Gradeability
40%
Min. Ground Clearance
320 mm
Wheelbase
3585 mm
Min. Outside Turning Radius
6770 mm
Overall Length
5050 mm
Overall Width
2280 mm
Overall Height
3170 mm

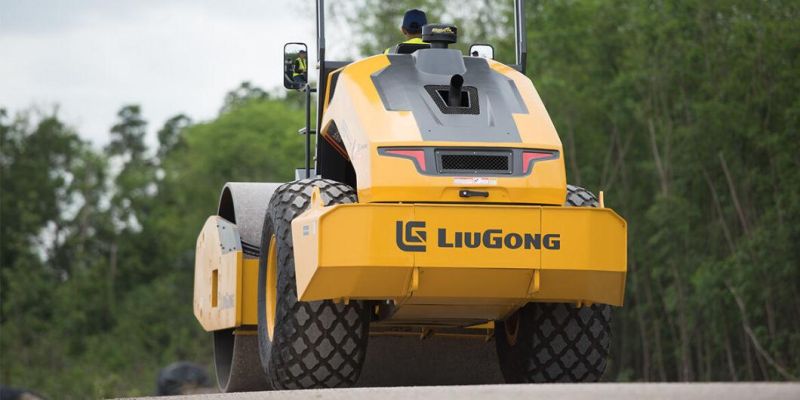

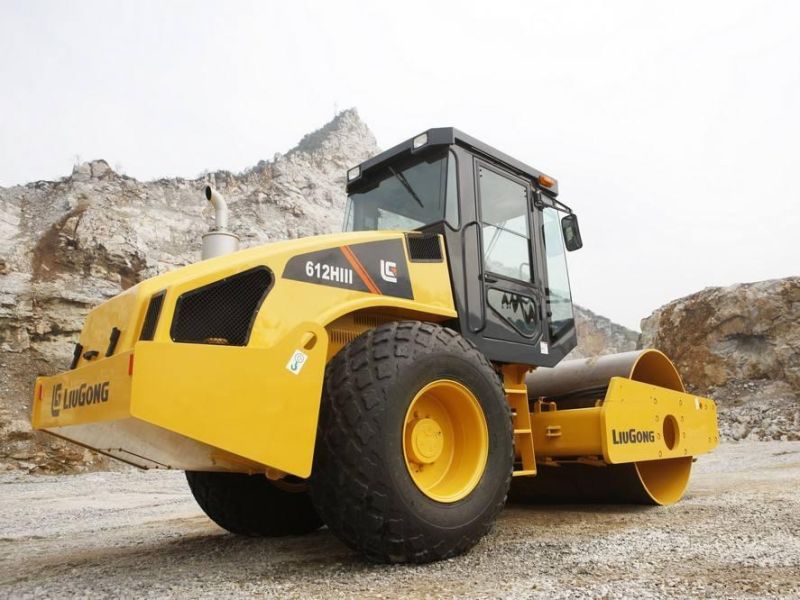

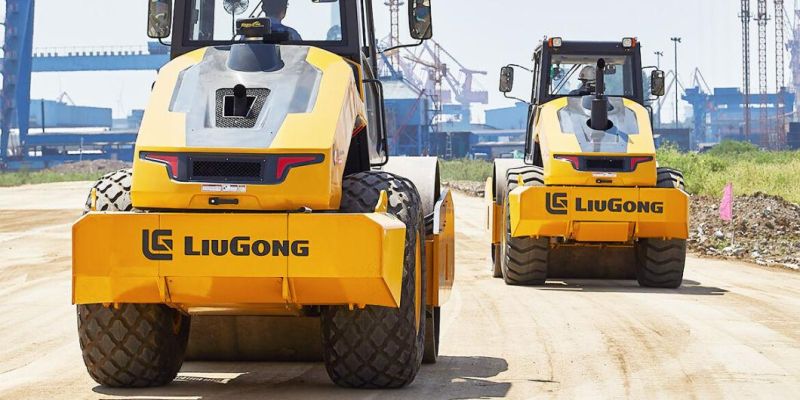

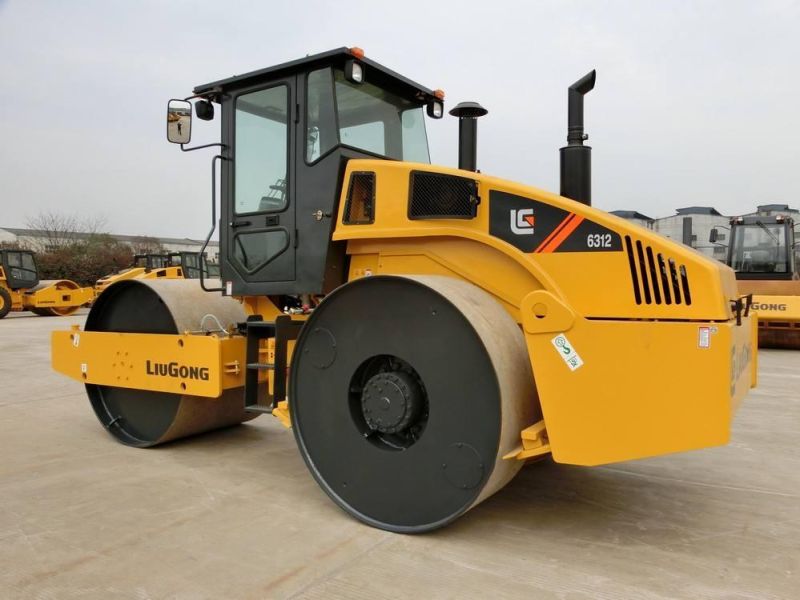

Detailed Images:
