• Model NO.：XS143J
• Travel Speed：35cm,s
• Centrifugal Force：27KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008, GOST
• Condition：New
• Operating Weight：14ton
• Transport Package：N,P
• Specification：CE
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：60sets, Month

Basic Info.

Model NO. XS143J Travel Speed 35cm/s Centrifugal Force 27KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008, GOST Condition New Operating Weight 14ton Transport Package N/P Specification CE Trademark ORIEMAC Origin Jiangsu, China HS Code 84294019 Production Capacity 60sets/ Month

Product Description

Mechanical single drum vibratory compactor 14ton XS143J
Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
 is the first manufacturer to adopt the central engine for effortless maintenance.
Leading compacting performance
The unique hydraulic driving system design and heavy vibratory wheel weight make the s roller highly advanced in compaction ability.
Heavy loaded drive axle and nonskid differential mechanism can furthest transfer the output power as well as the tractive force of engines.
Outstanding configuration
The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer's needs.
Multiple functions

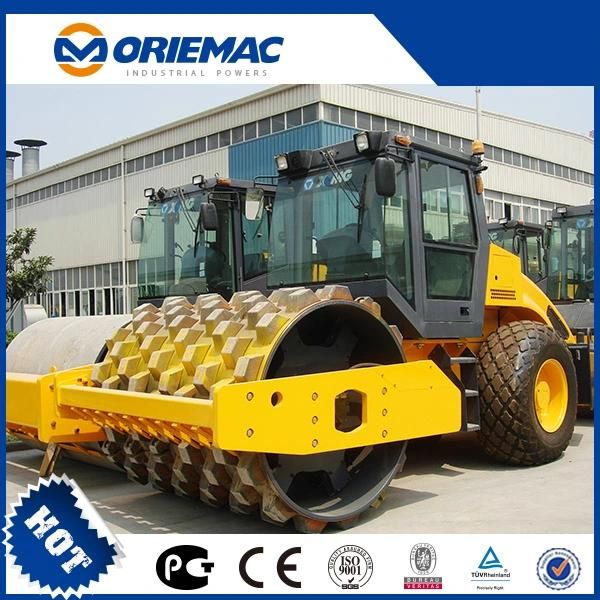

The split convex block drum (below 16t) and integral convex block drum (18-20t) can be selected according to the customer's requirement.
Easy maintenance
The aural and visual alarm device can timely provide the maintenance message to avoid the machine faults and to shorten the down time.
The self-opening engine shield makes the engine and hydraulic pump easy to access to

Type	Unit	XS143J
Operating weight	kg	14000
Load on front drum	kg	8200
Load on rear wheels	kg	5800
Drum width	mm	2130
Static linear load	N/cm	385
Vibration frequency(Low/High)	Hz	28/35
Nominal amplitude(High/Low)	mm	1.86/0.88
Excitation  force(High/Low)	KN	305/225
Travel speed	km/h	0~12
Steering angle	°	± 33
Swing angle	°	± 10
Theoretical   gradeability	%	55
Min. external turning radius	mm	6415
Engine model		Cummins B5.9
Engine power	kw	110
Rated  engine speed	r/min	2200
Engine oil consumption	g/kW. h	232
Hydraulic oil tank capacity	L	240
Fuel tank capacity	L	240
