• Model NO.：450T*100KTF*48
• Pitch：100mm
• Link：48
• Net Weight：244.32kg
• Export Market：Global
• Warranty：12 Months Under Normal Use
• Delivery Time：15-20 Days
• Color：Black
• Transport Package：Bare Packing
• Specification：450T*100KTF*48
• Trademark：PY
• Origin：Shanghai
• HS Code：8708996000
• Production Capacity：5000, Month

Basic Info.

Model NO. 450T*100KTF*48 Pitch 100mm Link 48 Net Weight 244.32kg Export Market Global Warranty 12 Months Under Normal Use Delivery Time 15-20 Days Color Black Transport Package Bare Packing Specification 450T*100KTF*48 Trademark PY Origin Shanghai HS Code 8708996000 Production Capacity 5000/ Month

Product Description

Puyi Rubber Tracks 450t*100ktf*48 for Excavators
Specification:
Continuous rubber track 450T * 100KTF* 48
Conventional type or interchangeable type rubber track
Warranty: guarantee one year under normal use

Application: Mini-Excavator, Bulldozer, Dumper, Crawler Loader, Crawler Crane, Crawler Carrier Vehicle, Agriculture Machinery, Paver and other special machine

Rubber Track we can supply such as KUBOTA, MOROOKA, YANMAR, TAKEUCHI, BOBCAT, CAT, KOMATSU, KOBELCO, SUMITOMO, DOOSAN, DAEWOO, FIAT, IHI, HITACHI, HYUNDAI, KATO, JCB, JOHN DEERE, YUCHAI, VOLVO, TEREX...

The PY Rubber Track Advantage

PY Rubber Tracks are made with a Premium Blend of Natural and Synthetic Rubber which makes for a stronger track that is less likely to separate.

PY closed looped continuous wound corrosion resistant multi-strand internal cable system is the strongest internal cable system.

Our track cable is wound up to 56 times on each side. For a total of 112 windings in our 700MM (28 inch) wide track.

Our smallest 180MM (7 inch) wide track has 16 windings each side for a total of 32 windings

Our rubber JingYu Track: Rubber Tracks generally weight considerably more than the competition as well. This is due to our rubber compound, which is blended to provide both track longevity and traction.


Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80

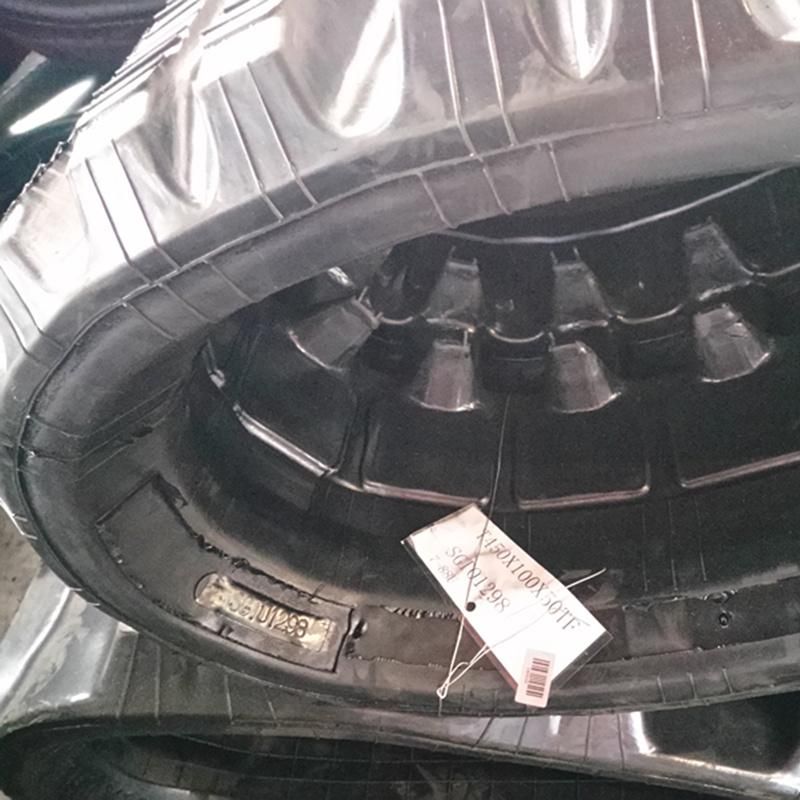

Details:

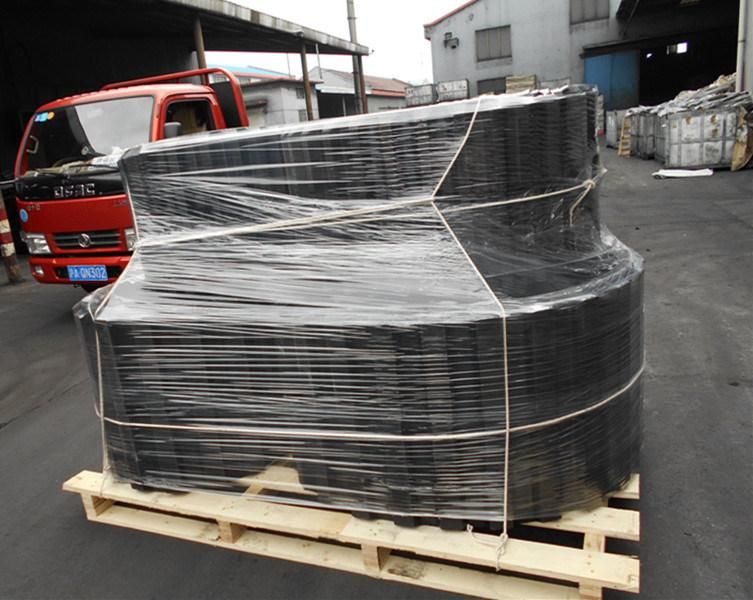

Package:
