• Model NO.：350*52.5*104
• Link：104
• Weight：192.4kg
• Material：Rubber and Steel
• Color：Black
• Delivery：Within 15 Days
• Warranty：12 Months
• Export Markets：Global
• Transport Package：Bare Packing or Wooden Pallets
• Specification：350*52.5*104
• Trademark：PY
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000 Per Month

Basic Info.

Model NO. 350*52.5*104 Link 104 Weight 192.4kg Material Rubber and Steel Color Black Delivery Within 15 Days Warranty 12 Months Export Markets Global Transport Package Bare Packing or Wooden Pallets Specification 350*52.5*104 Trademark PY Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Per Month

Product Description

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Model Number:	350*52.5*104
Brand Name:	PY
Packaging Details:	Bare Packing or Pallets
FOB Price:	500-550 USD/Piece
Payment Terms:	T/T, Western Union
Min.Order Quantity:	2 Piece/Pieces
Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	15 DAYS
Update Time:	2016-3/22

Rubber Tracks -

* Lug patterns on rubber tracks may be different but they are guaranteed to fit.

* Other part no. Not included in the list are available.

* Please contact your sales representative if you have any questions.

* Part Numbers and Brand names are used for reference purposes only.

* Part No. Description Most Popular Brand and Model Application (Interchangeable)

* 230X48X66 RUBBER TRACKS Bobcat: X320, 320L, X320 Delta, X320E, X322 (TYPE2), X322D,

X322E, X323 Cat: 301.8, ME15, MH15

* 230X48X68 RUBBER TRACKS Hitachi: Ex15 Lotus Root Takeuchi: TB016, TB016 S/LSA, TB016E

* 300X52.5X84 RUBBER TRACKS Cat: 303.5, 303CR, ME35, MM35, MM35Bm MM35T, MS35 (TYPE2)

* 381X101.6X42 RUBBER TRACKS ASV: RC50 Cat: 247

* 457X101.6X51 RUBBER TRACKS ASV: RC100 Cat: 287B

* 4500X90X47 RUBBER TRACKS: KUBOTA COMBINE HARVESTER DC-60

* Special Features of the PY Rubber Tracks

- 3 Metal Cores Wound Up: Higher durability & Better flexibility

- Smaller Contact Surface (Smaller Lug): Better grip & traction

- Bi Directional: Tracks are Interchangeable

- Reinforced Edges Between Lugs: Decreasing the chance of slicing

- Jointless: Track is much stronger than the joint type

*(Other Brand applications Include: Volvo, KOMATSU, KUBOTA, IHI, TAKEUCHI, KOBELKO, HITACHI,

YANMAR, FURKAWA, HANIX, KATO, SUMITOMO, BOBCAT, AIRMANN, Caterpillar, Doosan,

*For Mini/MIDI Excavators & Compact Track Loaders

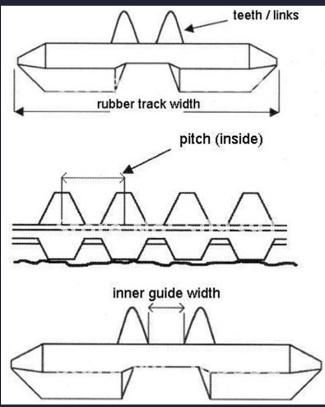

*Size Classification and Part number: Width(mm) X Pitch(mm)

(=Distance Between Metal Cores) X Numberof Links (=Number of Metal Core)

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

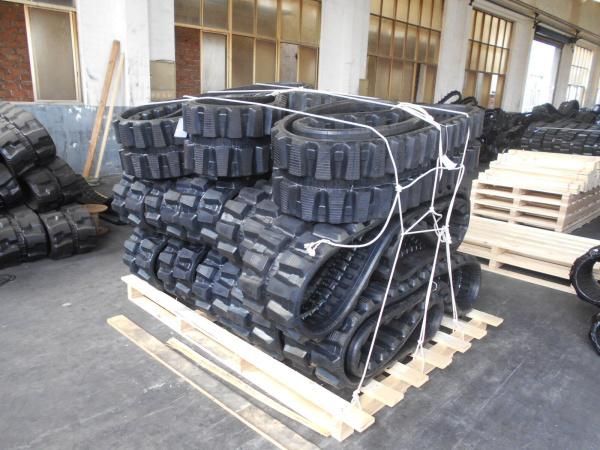

Package of the rubber track :
