Front Dozer New 165HP Mini Motor Grader Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：Sinomada Motor Grader
- Walking Mode：Wheeled
- Type：Medium-sized Grader
- Engine Power：74~147kw
- Transport Package：Container,Roro,Bulk
- Specification：Standard Configuration
- Trademark：Sinomada
- Origin：China
- HS Code：8429201000
- Production Capacity：500unit,Month
Description
Basic specificationEngine model CUMMINS CTAA8.3 /SC 8D190G2B1 Rated power/speed 138kW/2200 140kW/2300rpm Dimension(LxWxH) 8900×2625×3470mm Operating weight(Standard) 15400kg Performance specification Travelling speed ,forward 5,8,11,19,23,38 km/h Travelling speed ,reverse 5,11,23 km/h Tractive force(f=0.8) 84KN Max. gradeability 30% Tire inflation pressure 260 MPa Working hydraulic pressure 18 MPa Transmission pressure 1.3~1.8MPa Operating specification Max. steering angle of front wheels Left / Right50° Max. lean angle of front wheels Left / Right17° Max. oscillation angle of front axle Up / down15° Max. oscillation angle of balance box Before / after15 Frame articulation angle Left / Right27° Min. turning radius using articulation 7.3m Blade Maximum lift above ground 450mm Maximum depth of cutting 500mm Maximum blade position angle 90° Blade cutting angle 28°_70° Circle reversing rotation 360° Moldboard height X width 3965×610mm

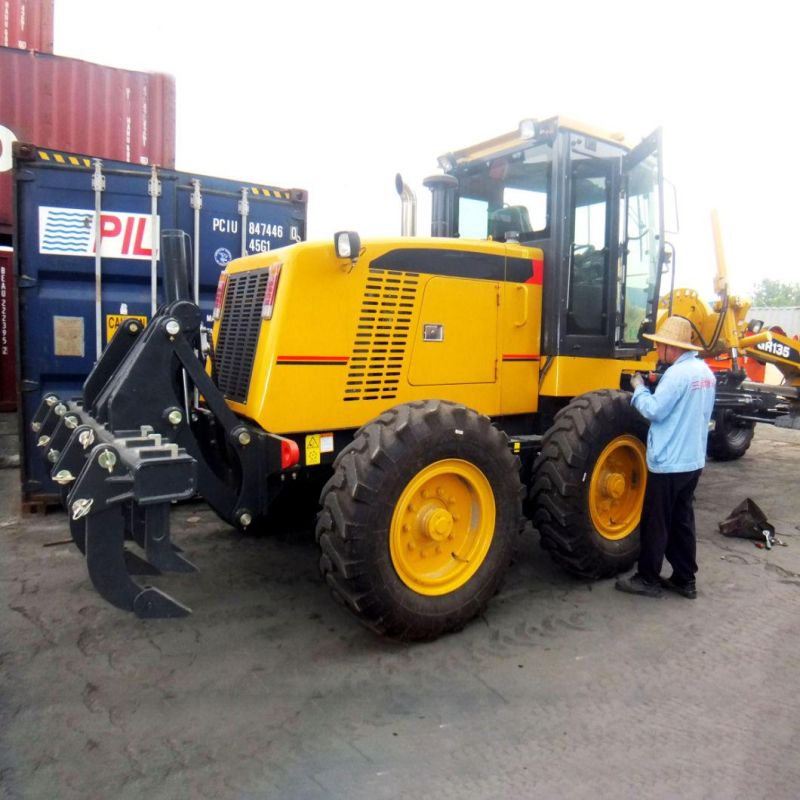

Product Photos:
