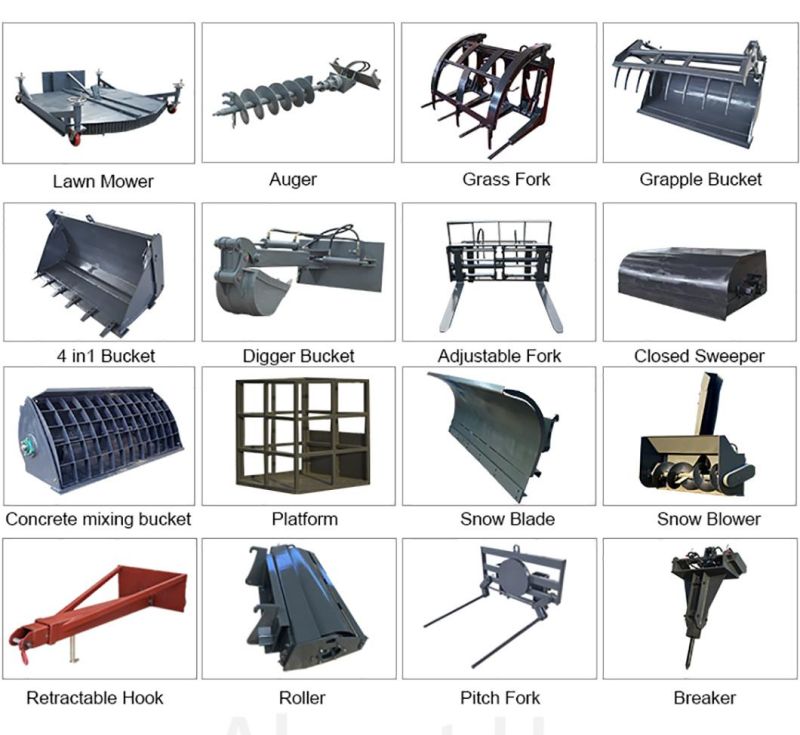

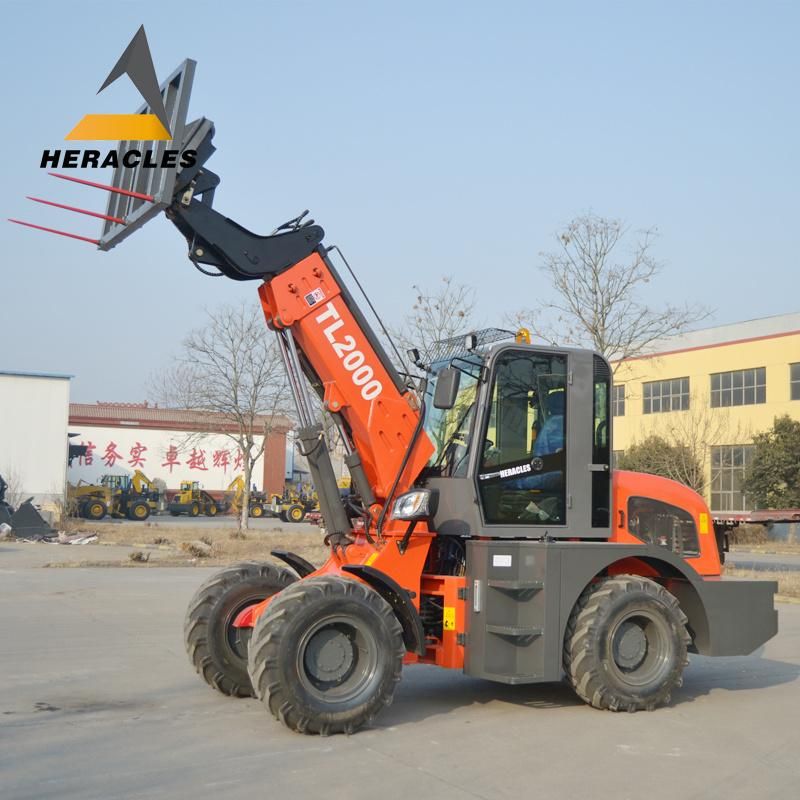

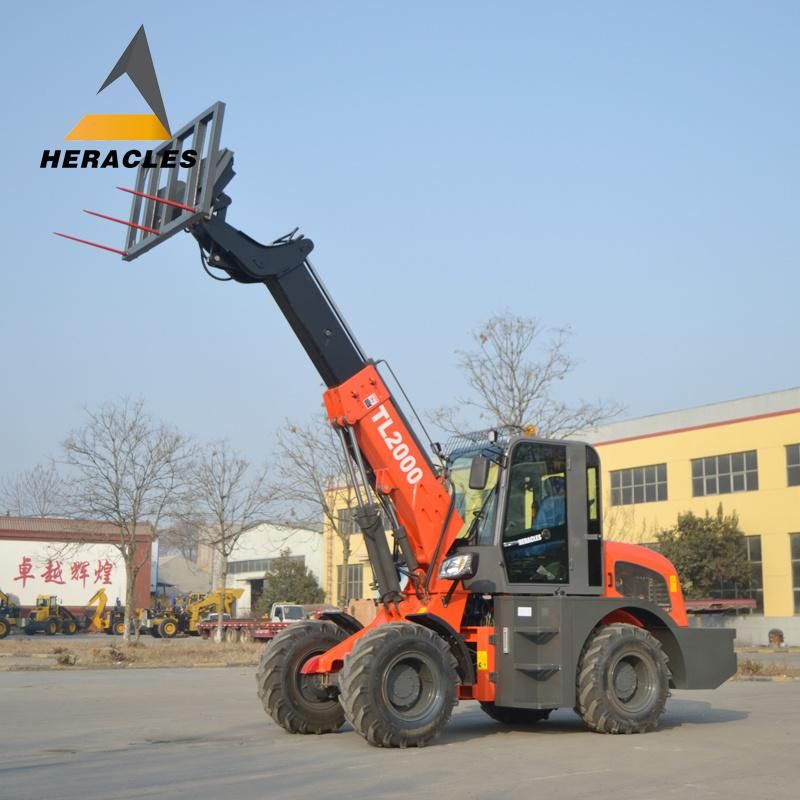

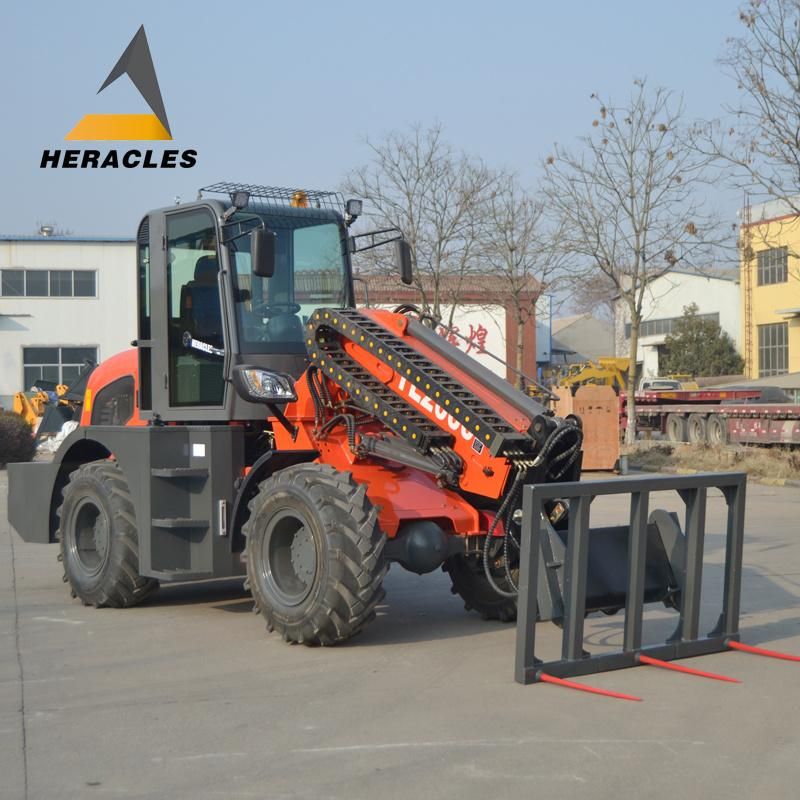

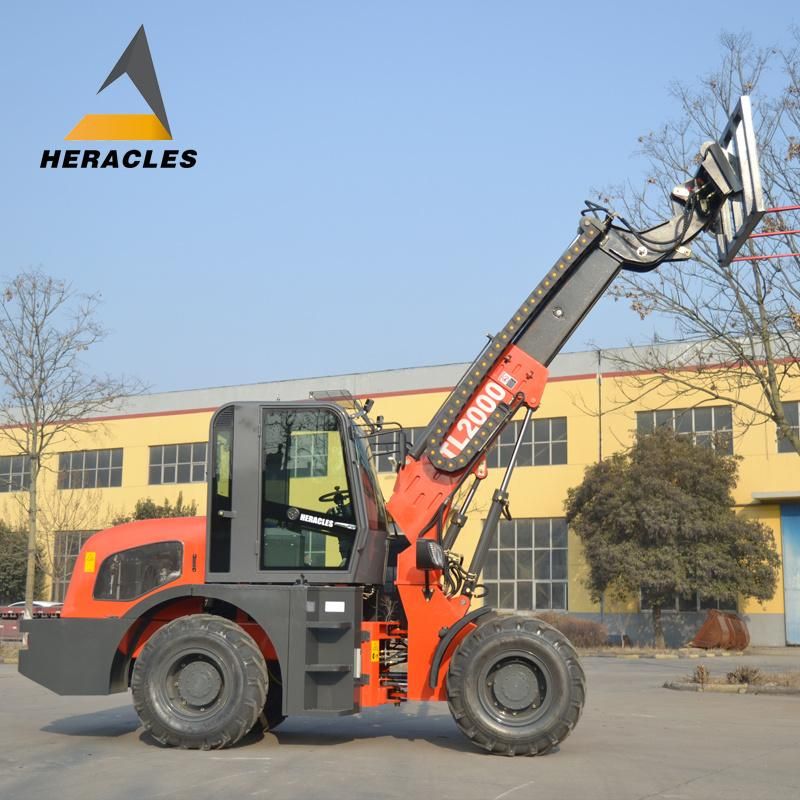

Tures Small Telescopic Boom Loader 2 Ton with Fork Accessory

Qingzhou Heracles Industry & Trade Co.,Ltd.
  • After-sales Service：Yes
  • Warranty：One Year
  • Certification：TUV, ISO, CE
  • Condition：New
  • Rated Load：1-4t
  • Transmission：Hydraulic

Base Info

  • Model NO.：TL2000
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Medium-sized Loader
  • Standard Engine：Yunnei Brand 65kw
  • Optional Engine：Cummins,Hetz,Kholer,Yuchai
  • Engine Certificate：Euro5,EPA4 Tier
  • Total Wegiht：5400kg
  • Rated Power：2000kg
  • Max. Shovel Width：2000mm
  • Bucket Capacity：1cbm
  • Max. Lifting Height：5000mm
  • Lifting to Bucket Hinge Pin Height：4500mm
  • Bucket Unloading Height：3950mm
  • Tire Model：16,70-20
  • Optional Tier Type：Snow Tires,Terrain Tires,Agriculture Tire
  • Transport Package：Nude Package in Container
  • Specification：6800*2050*2750mm
  • Trademark：Heracles
  • Origin：Qingzhou City, Shandong Province
  • HS Code：84295100
  • Production Capacity：600sets

Description

Tures Small Telescopic Boom Loader 2 Ton with Fork AccessoryTures Small Telescopic Boom Loader 2 Ton with Fork AccessoryTures Small Telescopic Boom Loader 2 Ton with Fork AccessoryTures Small Telescopic Boom Loader 2 Ton with Fork Accessory
1.0 Engine Details
(1) Model: YUNNEI Engine
(2) Engine Type:In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 65KW
(4) Rated Speed: 2400 r/p.min (rpm)
2.0 Transmission System
Hydraulic converter + gearbox+drive shaft + hub reduction axles
3.0 Bucket
(1) Bucket Capacity: 1m³
(2) Bucket width: 1900mm
(3) Bucket type:Heavy-duty bolt on teeth
(5) Rated Load: 2000kg including attachment or bucket
4.0 Overall Dimensions
(1) Overall Length: 6600mm
(2) Overall Height:2750mm
(3) Overall Width: 2050mm
(4) Max. lifting Height:5000mm
(5) Lifting to bucket hinge pin Height:4500mm
(6) Bucket Unloading Height:3950mm
(7) Unloading Distance:  1950mm(Arm extended)
                     1150mm(Arms recovered)
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4600mm(The right front wheel)
   Min Turning Radius: 2300mm(The left rear wheel)
(3) Driving System: Hydraulic converter, four wheel drive
(4) Hydraulic joystick control.
6.0 Brake System
(1) Service Brake:Safer air assist disc brake braking system
(2) Parking Brake:Hand operated(Disc brakes)
7.0 Tire
  1. Model:16/70-20  (2)Width: 380mm(3) Diameter: 1075mm
  2. Optional Model:16/70-20 Herringbone tire
8.0 Wheelbase: 2500mm
9.0 Track: 1600mm
10.System pressure: 20Mpa; Hydraulic output:96L/min
11.Machine weight: 5400KG




Tures Small Telescopic Boom Loader 2 Ton with Fork AccessoryTures Small Telescopic Boom Loader 2 Ton with Fork AccessoryTures Small Telescopic Boom Loader 2 Ton with Fork Accessory
Tures Small Telescopic Boom Loader 2 Ton with Fork AccessoryRFQ

1. Are you manufacturer of wheel loader?
Yes, we are Shandong Heracles Machinery Co., Ltd professional manufacturer of wheel loader, backhoe loader, telescopic loader and electric loader with more than 10 years experience. And we are keep developing.

2. What's your payment term?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

3. Can you customize and design as the clients' requirement?We are one actually OEM manufacturer, we have strong develop team, and our boss also have over 15 years' experience in this field. So we will try best to meet all kinds of clients' special requirements based on safety and scientifically. Colors can be painted as client's need.

4. What about the delivery time?
Within 30 days after receiving the down payment

5. What about the warranty time?
One year warranty.

6.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
