• Model NO.：SD16E
• Condition：New
• Color：Yellow
• Rated Power：120,1850kw,Rpm
• Engine：Shangchai Sc11CB184G2b1, Weichai Wd10g178e25
• Dozing Capacity：Straight Tilt Blade 4.5 U Blade 5 Angle Bladem
• Ripper Type：Three-Shank Ripper
• Transport Package：Nude
• Specification：CE, SGS
• Trademark：shantui
• Origin：China
• Production Capacity：200units,Month

Basic Info.

Model NO. SD16E Condition New Color Yellow Rated Power 120/1850kw/Rpm Engine Shangchai Sc11CB184G2b1/ Weichai Wd10g178e25 Dozing Capacity Straight Tilt Blade 4.5 U Blade 5 Angle Bladem Ripper Type Three-Shank Ripper Transport Package Nude Specification CE, SGS Trademark shantui Origin China Production Capacity 200units/Month

Product Description

Earthmoving machinery Dozer Shantui factory 160HP crawler bulldozer SD16E

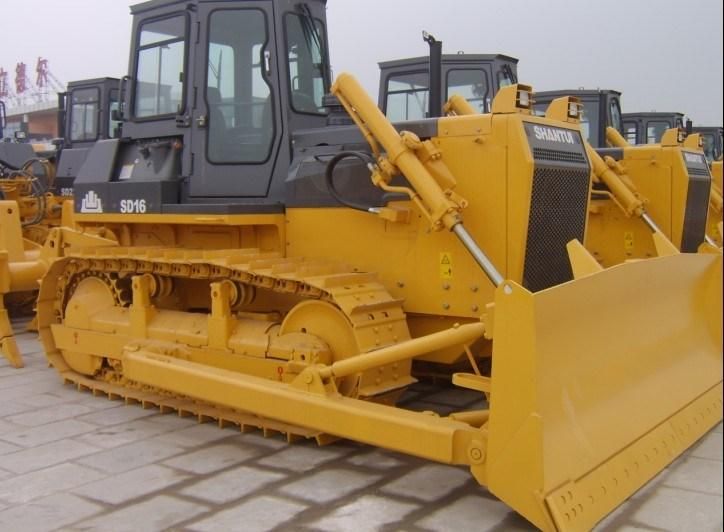

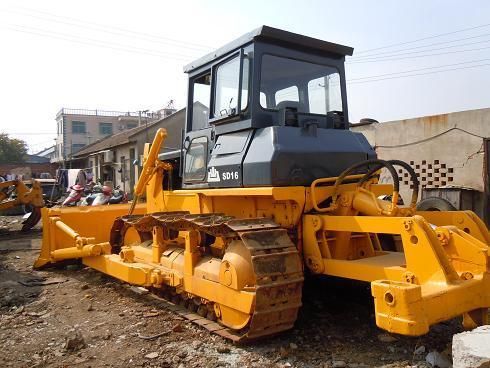

Shantui Bulldozer SD16E

Engine model: Weichai WD10G178E25 Rated power: 120 kW/1850 rpm Operating weight: 17.5 t The SD16E bulldozer has been developed to meet special requirements of certain earth-moving projects. It's equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, providing reliable performance and convenient and flexible operation. The SD16E's extended track makes it suitable for projects requiring low ground pressure.

Parameter

Parameter name	SD16 (Standard version)	SD16C (Coal version)	SD16E (Extended version)	SD16L(Super-wetland version)	SD16R (Environmental sanitation version)	SD16D (Desert version)
Performance parameters
Operating weight (Kg)	17000	17500	17346	18400	18400	18200
Ground pressure (kPa)	58	50	55	25	25	33.2
Engine
Engine model	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)
Rated power/rated speed (kW/rpm)	131/1850	131/1850	131/1850	131/1850	131/1850	131/1850

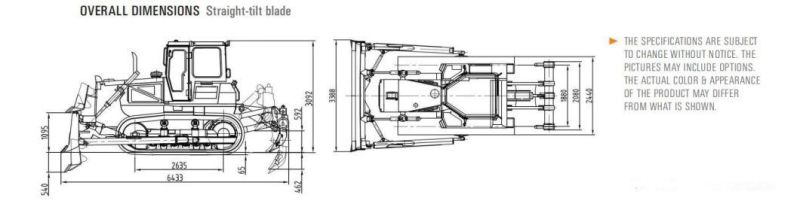

Overall dimensions
Overall dimensions of machine (mm)	5140*3388*3032	5427*3900*3032	5345*3388*3032	5262*4150*3074	5262*4150*3074	5262*4150*3074
