Jzc350 Smoonth Running Concrete Mixer
Henan Tarzan Industrial Co., Ltd.- Type:Concrete Mixer
- Shotcrete Type:Semi-Dry
- Machining Process:Hydraulic
- Structure:Rotor Type
- Productivity:10-14
- Feeding Height:1370mm
Base Info
- Vibrating Amplitude:2.0mm
- Condition:New
- Color:Green
- Discharge Volume(L):350
- Charge Volume(L):560
- Capacity( M³/H):10-14
- Mixing Motor( Kw):5.5
- Transport Package:Container
- Specification:2766× 2140× 3000
- Origin:China
- Production Capacity:2000units,Month
Description
Basic Info.
Vibrating Amplitude 2.0mm Condition New Color Green Discharge Volume(L) 350 Charge Volume(L) 560 Capacity( M³/H) 10-14 Mixing Motor( Kw) 5.5 Transport Package Container Specification 2766× 2140× 3000 Origin China Production Capacity 2000units/MonthProduct Description

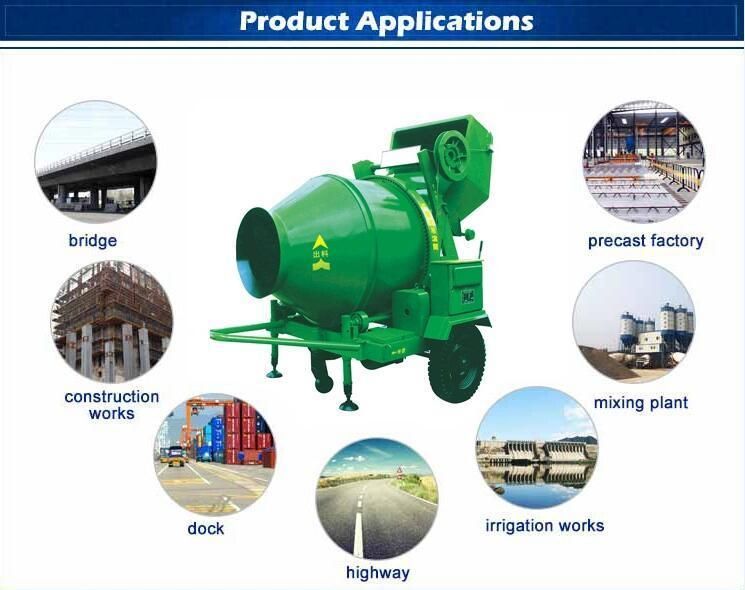

the concrete mixer can mix plastic and half-hard concrete; it suits general construction site, road, bridge, and hydroelectric power projects and some small and middle concrete component factory.Main Features:
Reasonable structure, smooth running, easy control;
Good quality of mixing, high productivity and automaticity.
Model | JZC350 | JZC300 | JZC500 |
Discharge volume(L) | 350 | 300 | 500 |
Charge volume(L) | 560 | 480 | 800 |
Capacity( m³/h) | 10-14 | 9-12 | 18-20 |
Mixing motor( KW) | 5.5 | 4 | 7.5 |
Lifting motor() KW | 3 | 4 | 5.5 |
Water pump motor( KW) | 0.55-0.75 | 0.55 | 0.55 |
Rotating speed ( r/min) | 14 | 14-17 | 13 |
Max. aggregate size( mm) | 60 | 60 | 60 |
Dragging speed( km/h) | 20 | 10-15 | 20 |
Overall weight (kg) | 1950 | 1650 | 2400 |
Dimensions (L×W×H) (mm) | 2766×2140×3000 | 2766×2140×3000 | 3500×2200×3200 |
