Excavator Rubber Track Pad 450HD
Shanghai Puyi Industrial Co., Ltd.- Type：Rubber Track Pad
- Application：Crane
- Certification：ISO9001: 2000
- Condition：New
- Warranty：12 Months
- Color：Black
Base Info
- Model NO.：450HD
- Width：450mm
- Pitch：154mm
- Transport Package：Standard Packings or as Your Requirements
- Specification：all size, Bolt on Type,Clip on Type
- Trademark：No Marks or As buyer′s requests
- Origin：Shanghai
- HS Code：843149900
- Production Capacity：6000 Pieces,Month
Description
Bolt-onType Pitch h D d Bolt L W H 230BA 90 15 150 0 M12 230 60 31 230B 101 16 150 0 M12 230 70 39 250B 101 16 200 0 M12 250 70 39 300B 101 16 200 0 M12 300 70 39 300BA 101 16 200 0 M12 300 70 39 350B 101 16 200 0 M12 350 70 39 350BA 101 16 250 0 M12 350 70 39 350BD 135 14 250 46 M12 350 106 40 350BL 135 14 290 46 M12 350 106 40 350BR 135 14 290 46 M12 350 106 40 380B 135 14 300 46 M12 380 106 40 400B 135 14 300 46 M12 400 106 40 400BLR 135 14 300 46 M12 400 106 40 400BW 140 18 300 52 M14 400 123 65 400BH 140 18 350 52 M14 400 123 45 450BE 135 14 350 46 M12 450 106 40 450B 154 20 350 58 M14 450 124 49 450BLR 154 20 350 58 M14 450 124 49 500B 171 20 400 60 M16 500 137 57 500BA 175 26 400 57 M16 500 126 59 600B 190 26 400 69 M20 600 136 71 260BM 18 190 53 M12 260 120 50 260B 18 200 54 M14 260 112 48 260BK 18 200 57 M14 260 120 48 300BM 18 227 57 M12 300 120 50 300BK 18 220 57 M14 300 130 55 350BK 155 25 270 60 M14 350 135 60 400BK 25 300 60 M14 400 135 60 450BK 31 350 80 M14 450 170 76 200T 0 160 0 M14 200 90 30 305BP 0 177.8 0 M16 305 114 32 355BP 0 237.5 0 5/8" 355 132 32 455BP 0 305 0 3/4" 455 132 32 300-2 155 18 220 0 M14 300 135 50 300-4 155 18 220 45 M12 300 135 50 320-2 155 18 220 0 M14 320 135 50 320-4 155 18 220 45 M12 320 135 50 Type Pitch D d S Bolt L W H 300C 135 144 116 22 M12 300 95 45 400C 135 94 64 46 M12 400 125 52 400CA 135 99 72 43.5 M12 400 125 52 400CK 135 100 73 43.5 M12 400 125 52 400CB 135 104 80 46 M12 400 125 52 400CD 135 110 80 46 M12 400 125 52 400CV 135 106 76 46 M12 400 125 52 400CK 140 80 80 52 M12 400 125 52 400CW 140 86 86 52 M12 400 125 52 450CN 140 83 83 52 M12 450 125 52 450CW 140 86 86 52 M12 450 125 52 450CA 135 99 72 43.5 M12 450 125 52 450CB 154 90 90 46.3 M14 450 146 55 450CD 154 90 90 55 M14 450 146 55 450CS 154 73 73 57 M14 450 146 55 450C 154 89 73 57 M14 450 146 55 500CW 135 104 80 46 M12 500 125 52 500CB 175 102.4 86.4 57 M16 500 162 69 500C 171 108 108 60.4 M16 500 162 69 500CS 171 104 88 58 M16 500 162 69 500CA 190 160.4 124.4 62 M20 500 178 72 500CD 190 155.6 119.6 69 M20 500 178 72 600C 171 108 108 60.4 M16 600 162 69 600CD 190 155.6 119.6 69 M20 600 178 72 600CA 190 160.4 124.4 62 M20 600 178 72 600CB 190 160.4 124.4 62 M18 600 178 72 300 155 88.9 88.9 57.1 M12 300 186 55 320 155 104 88.9 55 M12 320 186 55 Type Pitch h L W H 380HD 135 18 380 104 55 400HD 135 18 400 106 51 450HD 135 18 450 106 51 450HW 154 20 450 124 50 450HB 175 26 450 127 68 500HD 175 26 500 127 68 500HW 171 20 500 137 68 500HB 175 18 500 127 60 600HD 175 26 600 127 68 600HB 190 26 600 137 71 600HA 216 30 600 160 76 700HW 171 20 700 137 63 700HD 175 26 700 127 68 700HD 190 750HA 216 30 750 160 76 800HD 190 26 800 137 70

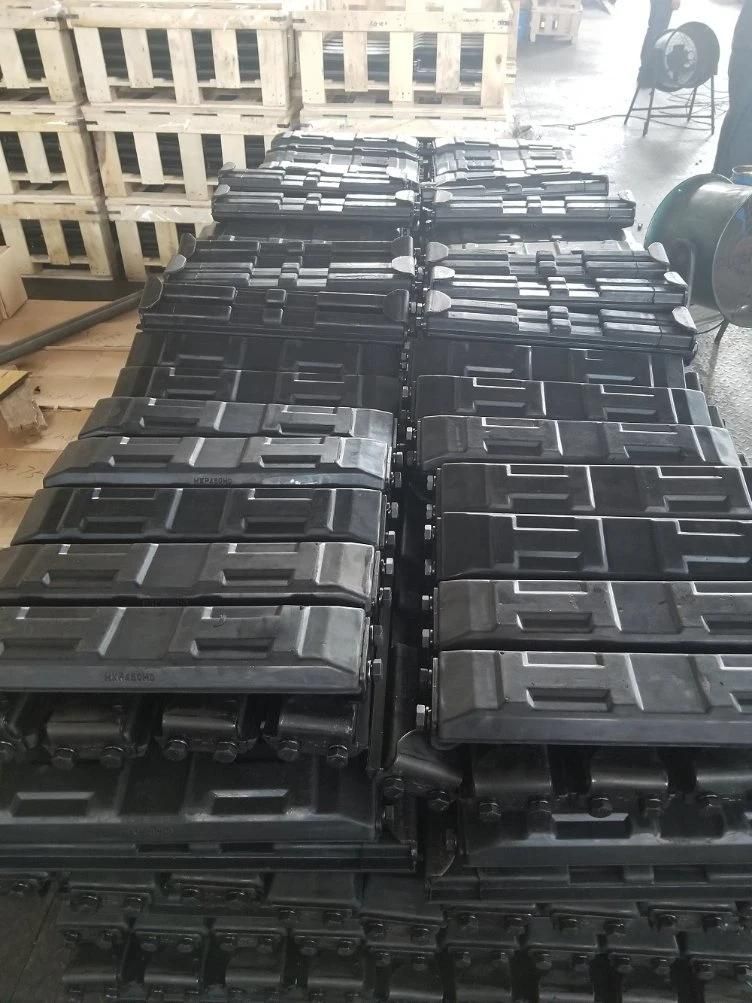

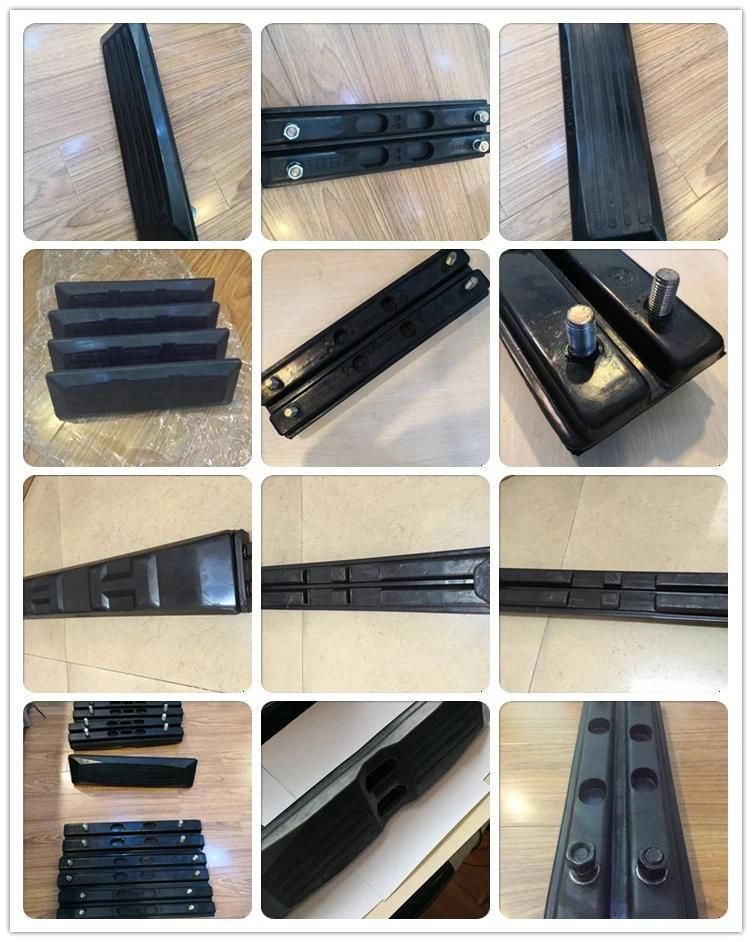

Pictures for reference
