New Amphibious Chassis Sinoway Amphibious Pontoon Undercarriage Chassis for Sale
Sinoway Industrial (Shanghai) Co., Ltd.- Warranty：1 Year
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
Base Info
- Model NO.：SWPU80,SWPU90
- Bucket Capacity：0.5~1.0m³
- Size：Medium-Sized
- Certification：ISO9001: 2000, ISO14001
- Condition：New
- Engine Power：125HP
- Hydraulic System：Doosan
- Max. Reach：10.2 M
- Pontoon Length：8.5 M
- Track Shoe：Bolted
- Transport Package：Naked
- Specification：ISO
- Trademark：SINOWAY
- Origin：China
- HS Code：84294090
- Production Capacity：50PCS,Month
Description
Basic Info.
Model NO. SWPU80/SWPU90 Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Engine Power 125HP Hydraulic System Doosan Max. Reach 10.2 M Pontoon Length 8.5 M Track Shoe Bolted Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84294090 Production Capacity 50PCS/MonthProduct Description

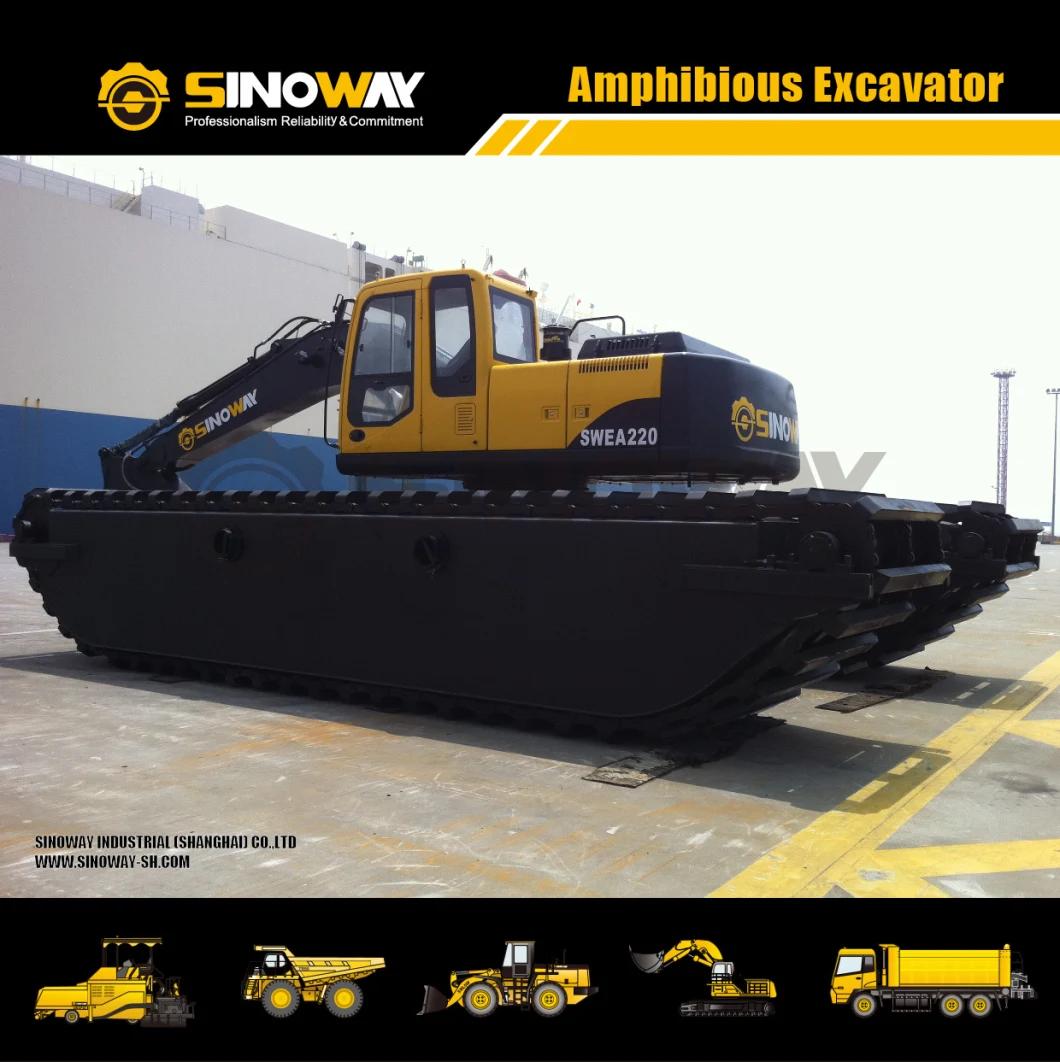

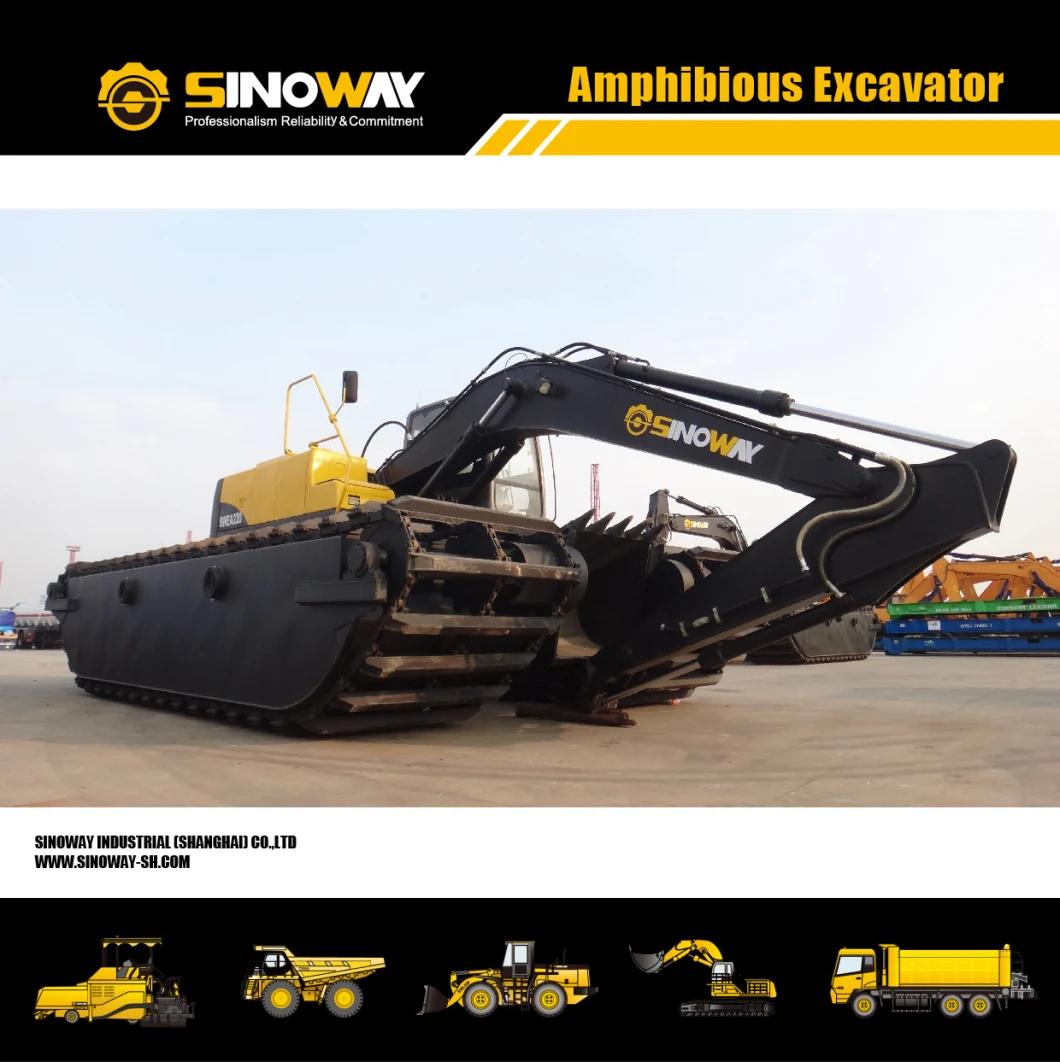

SINOWAY Amphibious Excavator
Machine Show
Machine Introduction
Specifications
| Engine | |
| Model | Isuzu/Cummins/Doosan |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 110KW |
| Main Technical Specification | |
| Operating weight | 30000Kg |
| Standard bucket capacity | 0.9m3 |
| Slewing speed | 11rpm |
| Travelling speed | 0~5.4km/h |
| Grade ability | 65% |
| Ground pressure | 0.014MPa |
| No. of chains | 3 |
| Dimensions | |
| Overall length | 11200mm |
| Overall width | 5350mm |
| Overall height | 3900mm |
| Ground clearance | 1192mm |
| Length of pontoon | 8000mm |
| Width of pontoon | 1500mm |
| Height of pontoon | 1500mm |
| Stick length | 2900mm |
| A: Max. cutting height | 10577mm |
| B: Max. dumping height | 7810mm |
| C: Max. digging depth | 5704mm |
| D: Max. reach | 10000mm |
