• Model NO.：CX-118
• Color：Black
• Width：118mm
• Pitch Length：61mm
• Link：18
• Weight：2.32kg
• Warranty：12months
• Transport Package：Kraft Paper, Wooden Case, Pallet
• Specification：118*61*18
• Trademark：puyi
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：10000PCS,Months

Basic Info.

Model NO. CX-118 Color Black Width 118mm Pitch Length 61mm Link 18 Weight 2.32kg Warranty 12months Transport Package Kraft Paper, Wooden Case, Pallet Specification 118*61*18 Trademark puyi Origin Shanghai, China HS Code 8431499900 Production Capacity 10000PCS/Months

Product Description

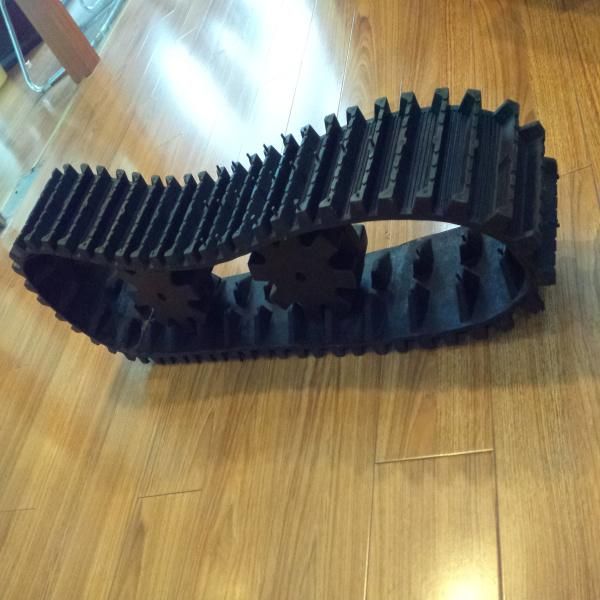

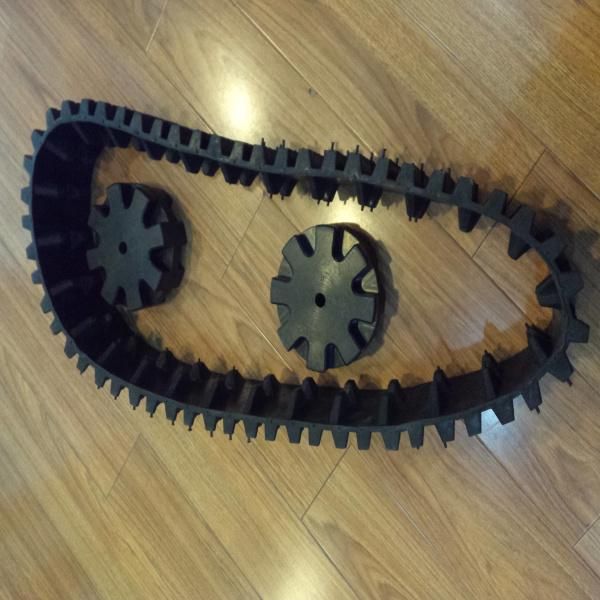

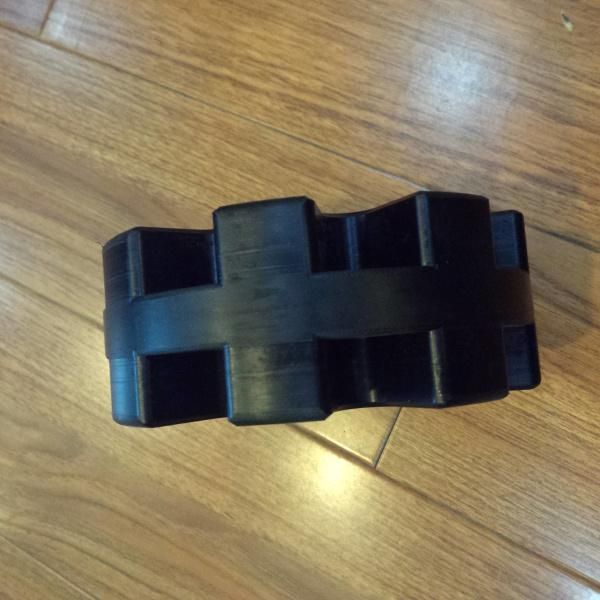

Small Robot Rubber Track (118*61*18)





1.Characteristics of rubber track:

1).Less damage to the ground surface

2).Low noise

3).High running speed

4).Less vibration;

5).Low ground contack specific pressure

6).High tractive force

7).Light weight

2.Convontional type or interchangeable type rubber track

3.Application:robot,mini-excavator, bulldozer, dumper, crawler loader, crawler crane, carrier

vehicle, agriculture machinery, paver and other special machine

4. Warranty: guarantee one year under normal use

Model:BF-A Links:108(multiple of 3) Pitch Length:15 mm Width:80 mm Total Length:1620 mm Weight:1.2 kg	Model:HL-105 Links:35 Pitch Length:42mm Width:105 mm Total Length:1470 mm	Model:HL-80 Links:42 Pitch Length:44 mm Width:80 mm Total Length:1848 mm	Model:CX-118 Link:24 Pitch:61 mm Width:118 mm Total Length:1464 mm Weigth:3.9 kg
Model:CHJ-80 Links:41 Pitch Length:40.2 mm Width:80 mm Total Length:1608 mm Weight:3.35kg	Model:QD-118 Links:20 Pitch Length: 60mm Width:118 mm Total Length:1200mm Weight: 2.44kg	Model:TH-85 Links:24 Pitch Length:59.4 mm Width:85 mm Total Length:1425.6 mm Weight:1.92 kg Thickness for driving wheels:20mm Thickness for roller:20mm	Model:DB-A Link:18 Pitch length:61 mm Width:118 mm Length:1098 mm Weight:2.32 kg Drive wheel thickness:60mm
Model:BD-A Links:50 Pitch Length:40 mm Width:100 mm Total Length:2000 mm Weight:4 kg Thickness for driving wheels:60mm Thickness for roller:30mm	Model:RN-120 links:20 Pitch Length:60mm Width:120mm Total Length:1200mm Weight:2.5kg	Model:GMD-A Links:76(multiple of 2) Pitch Length:20 mm Width:100 mm Total Length:1520 mm Weight:1.84 kg Thickness for driving wheels:50mm Thickness for roller:50mm	Model:SJ-120 Link:44 Pitch:61mm Width:120mm Total Length:2684mm Weigth:6 .5 kg



Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76
