• Model NO.：JQ-A
• Pitch Length：12.7mm
• Links：120
• Warranty：12months
• Weight：1.9kg,PC

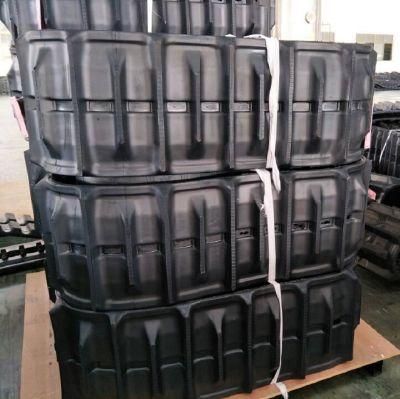

• Transport Package：Nude Packing or Pallets
• Specification：76*12.7*120
• Trademark：POOYERT
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：3000PCS,Months

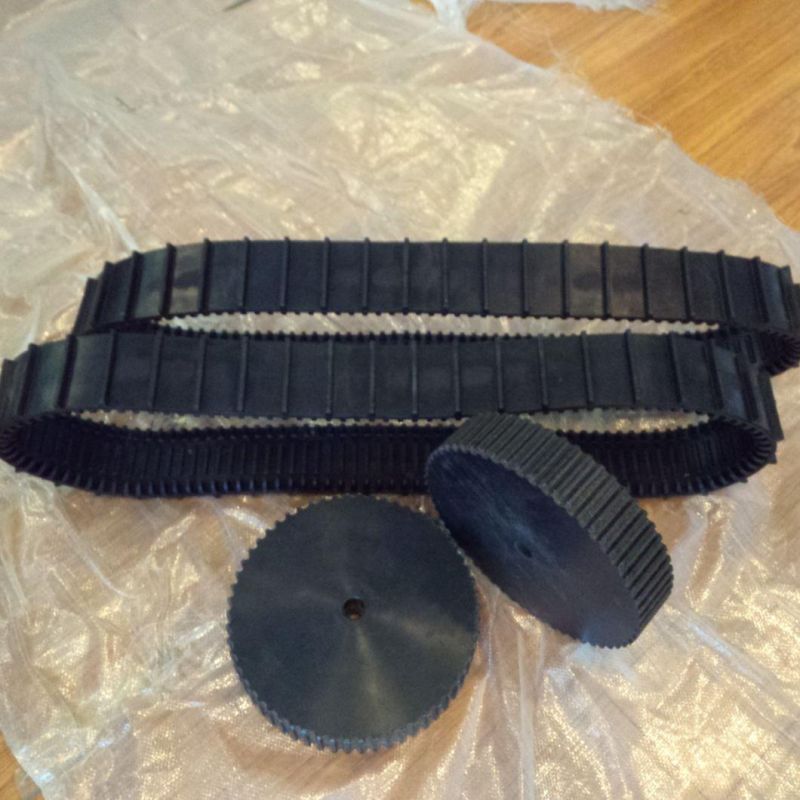

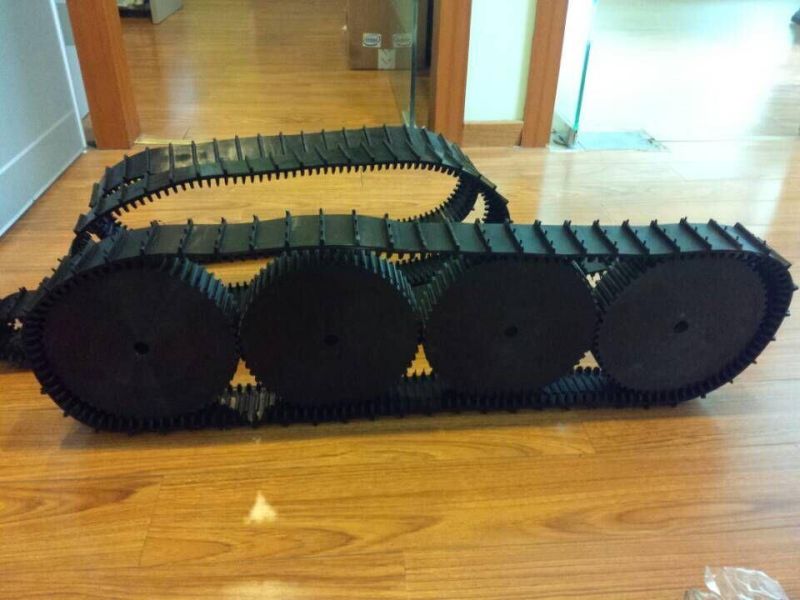

Work environment : The ground, uneven terrain, road and waterwayApplication: Robot , Wheelchair chassisLoad weight 20-300kgsWidth:40mm--60mmLength:Could be customized



2. More models . Pls contact us freely for catalogue .

Model	Size	Weight(kg)/Link	Model	Size	Weight(kg)/Link	Model	Size	Weight(kg)/Link
HS-32	32*12.7	0.0031	HL-105	105*42	0.0572	YT-200	200*52.5	0.3935
BK-B	40*9.3	0.0084	CX-118	118*61	0.1625	SQ-A	220*53.5	0.2062
HL-40	40*44	0.0268	QD-118	118*60	0.122	JH-220	220*85	0.9
PY-40	45*31.75	0.0172	SJ-120	120*61	0.1477	JA-220	220*50.3	0.4
PY-40	40*31.3	0.0163	RN-120	120*60	0.125	DY-250	250*50.3	0.3507
LG-48	48*10	0.0042	WG-123	123*38	0.0703	LP-250	250*50.3	0.523
DG-50	50*22.225	0.03	GF-A	125*19	0.0243	CQ-255	255*72	0.4758
GF-B	50*19	0.0093	DN-A	130*18.5	0.0289	FP-250	250*80	0.4897
GMD-B	50*20	0.0109	WJ-130	130*40	0.1088	WD-255	255*73	0.4549
HGD-52	52*58	0.0474	TH-136	136*45	0.0868	SQ-B	255*72	0.45
JTDX-60	60*15	0.012	WGJ-130	130*65	0.4348	CF-280	280*60	1.9
XL-60	60*13.9	0.59	HBC-140	140*30	0.0334	LEVE-280	280*87	0.4839
LWM-60	60*22.225	0.023	SL-140	140*80	0.2778	KD-320	320*87	2.1607
JQ-B	60*12.7	0.0182	JT-140	140*20	0.0332	QATV-320	320*87	0.4688
BF-B	60*15	0.0073	PW-148	148*60	0.2804	WD-320	320*72
BK-A	60*13.01	0.0178	ZY-148	148*60	0.4445	TG-320	320*87	0.9412
DN-B	60*18.5	0.0088	XF-A	150*59	0.2051	TJ-360A	360*87	0.8285
JT-60	60*20	0.0125	NG-150	150*65	0.3095	NY-380	380*65	0.7854
JQ-A	76*12.7	0.0158	SF-150	150*72	0.3781	YQZG-400	400*73
BF-A	80*15	0.0112	XF-B	150*59	0.2178	QATV-400	400*87	1.25
HL-80	80*44	0.055	LEVE-160	160*60	0.8065	TK-560	560*105	3
SMX-70	70*40	0.0636	YSD-165	165*64.5	0.3612	DNS-580	580*60.5	0.675
CHJ-80	80*40.2	0.0817	WJ-165	165*65.5	0.2989	XLG-620	620*100
TH-85	85*59.4	0.08	WHKD-170	170*64	0.2419	BV206	620*90.6	3.125
THG-85	85*59.4	0.1072	LEVE-180	180*65	0.3571	WZY-800	800*90.6
GMD-A	100*20	0.0242	YN-180	180*72	0.4729	KCM-500	500*110	2.9836
BD-B	100*40	0.0454	HC-200	200*60.2	0.3
BD-A	100*40	0.08	HS-200	200*72	0.75

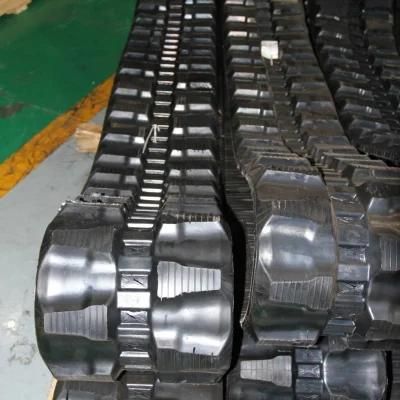

3. The feature of rubber tracks:

• Less round damage ,Low ground pressure , Less vibration
• Low noise , High speed ,Superior traction

Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products

A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

Rubber track permit machines to travel at a higher speed than steel tracks.

Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.

The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .

The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.



4. Application:

For small robot, mini excavator, bulldozer, agriculture, engineering, etc..
