• Model NO.：lss3
• Certification：ISO9001: 2000, CE
• Condition：New
• Operating Mass：19t
• Tallest Headway Speed：10km,H
• Tire Contact Pressure：150-300kpa
• Overall Dimension：6600*2300*3000mm
• Diesel Power：132kw
• Grade Ability：35%
• Rotational Speed：2400r,Min
• Turning Radius：7500mm
• Rolling Width：2286mm
• Wheel Overlap：40mm
• Transport Package：Nude
• Specification：CE
• Trademark：KUDAT
• Origin：China
• Production Capacity：30 Units,Month

Basic Info.

Model NO. lss3 Certification ISO9001: 2000, CE Condition New Operating Mass 19t Tallest Headway Speed 10km/H Tire Contact Pressure 150-300kpa Overall Dimension 6600*2300*3000mm Diesel Power 132kw Grade Ability 35% Rotational Speed 2400r/Min Turning Radius 7500mm Rolling Width 2286mm Wheel Overlap 40mm Transport Package Nude Specification CE Trademark KUDAT Origin China Production Capacity 30 Units/Month

Product Description

Main Features

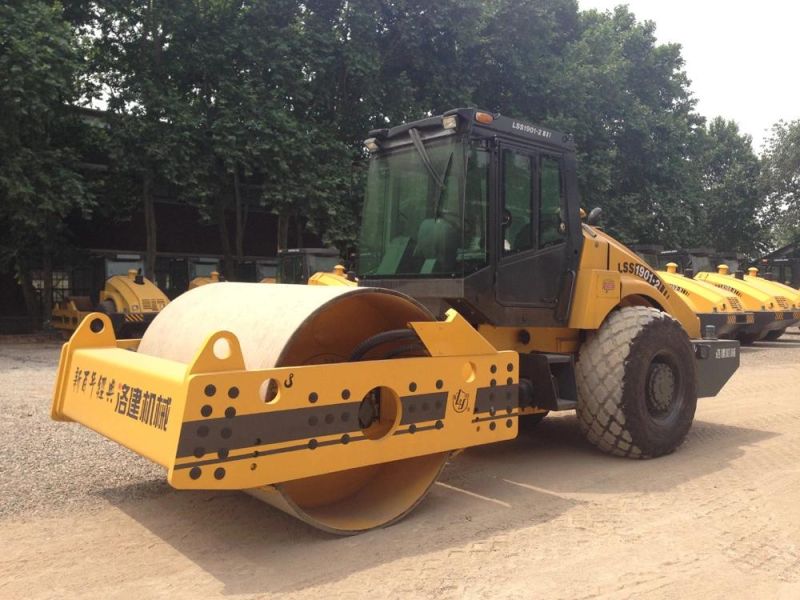

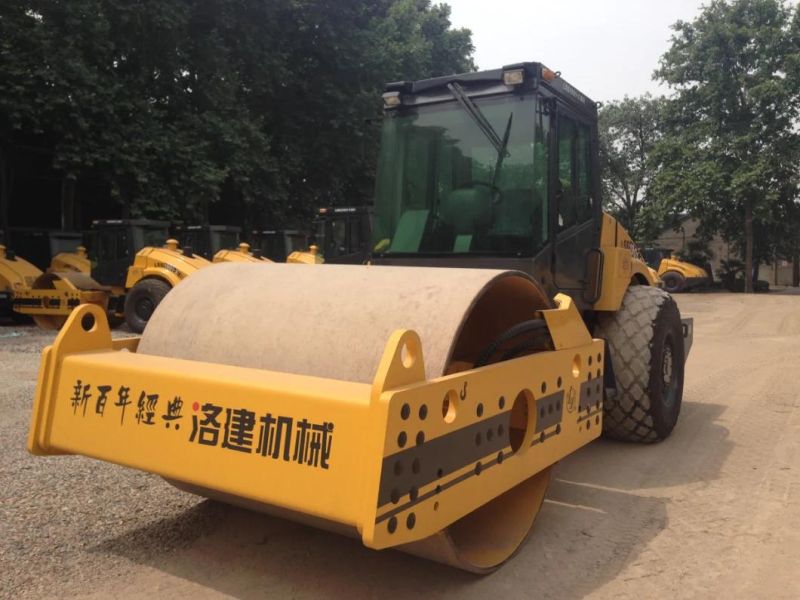

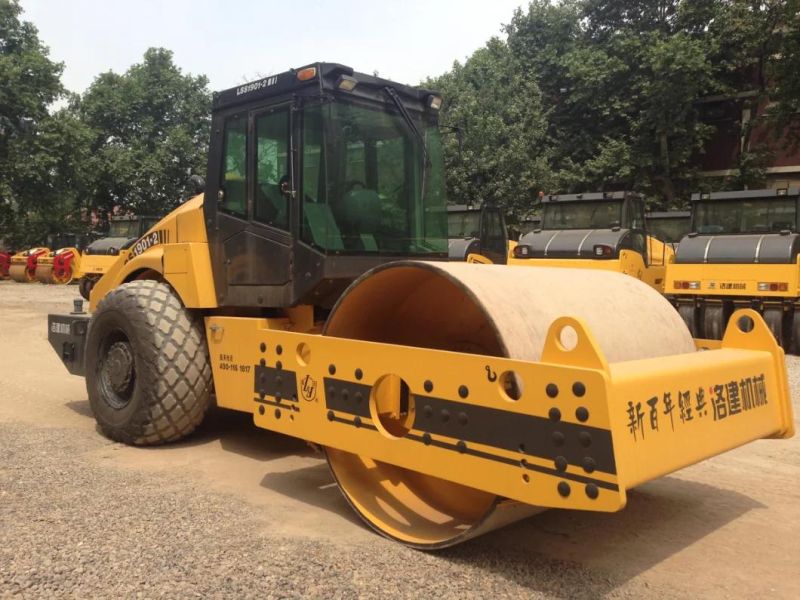

Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel,crushed
stone,sand-macadam mixture, sandy soil and rock filling etc.On base course, sub-base course and
embankment  fill  construction  etc.  which  are  ideal  equipment  for  high-class
highway,railway,airport,harbor,dam and large-scale industrial ground etc.
Features
1.High powerful D6114 Water cooled turbocharged diesel engine; Engine cooling air-path structure and
large capacity of fuel tank.
2.Heavy-duty gearbox; Driving axle with greater braking torque .

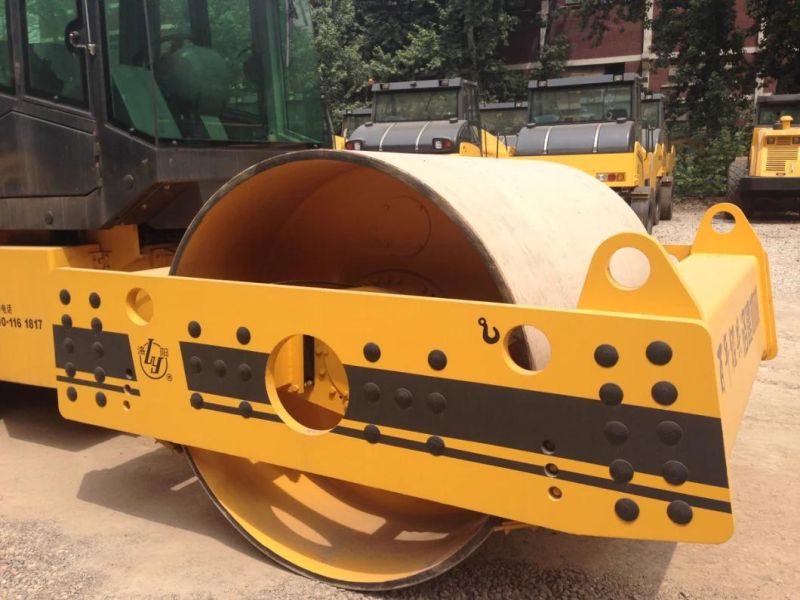

3.Dual amplitude setting of vibration; New types of vibration device and drum travel bearing structure.
4.Modernized style overall appearance; Driver's cabin with T type angular glasses.
5.Joint-moving mechanism of the clutch pedal with engine throttle; Adjustable instrument desk with liquid
crystal instrument panel.
Operating mass  kg  19000
Static linear load  N/cm  437
Vibration amplitude  mm  2.0/1.0
Vibration frequency  Hz  28
Centrifugal force  kN  340/200
Travel speed  km/h  10.5
Gradeability  %  35
Turning radius  mm  7500
Drum width  mm  2130
Drum diameter  mm  1600
Wheelbase  mm  3430
Ground clearance mm  445
Diesel engine model  SC8D180
Diesel engine power  kW  132
Overall dimensions  mm  6600×2300×3000
