• Model NO.：lrs16
• Certification：ISO9001: 2000, CE
• Condition：New
• Operating Mass：10,16t
• Tallest Headway Speed：14km,H
• Tire Contact Pressure：150-300kpa
• Overall Dimension：4770*2290*3100mm
• Diesel Power：75kw
• Grade Ability：20%
• Rotational Speed：2400r,Min
• Turning Radius：7500mm
• Rolling Width：2286mm
• Wheel Overlap：40mm
• Transport Package：Nude
• Specification：CE
• Trademark：KUDAT
• Origin：China
• Production Capacity：30 Units,Month

Basic Info.

Model NO. lrs16 Certification ISO9001: 2000, CE Condition New Operating Mass 10/16t Tallest Headway Speed 14km/H Tire Contact Pressure 150-300kpa Overall Dimension 4770*2290*3100mm Diesel Power 75kw Grade Ability 20% Rotational Speed 2400r/Min Turning Radius 7500mm Rolling Width 2286mm Wheel Overlap 40mm Transport Package Nude Specification CE Trademark KUDAT Origin China Production Capacity 30 Units/Month

Product Description

Main Features

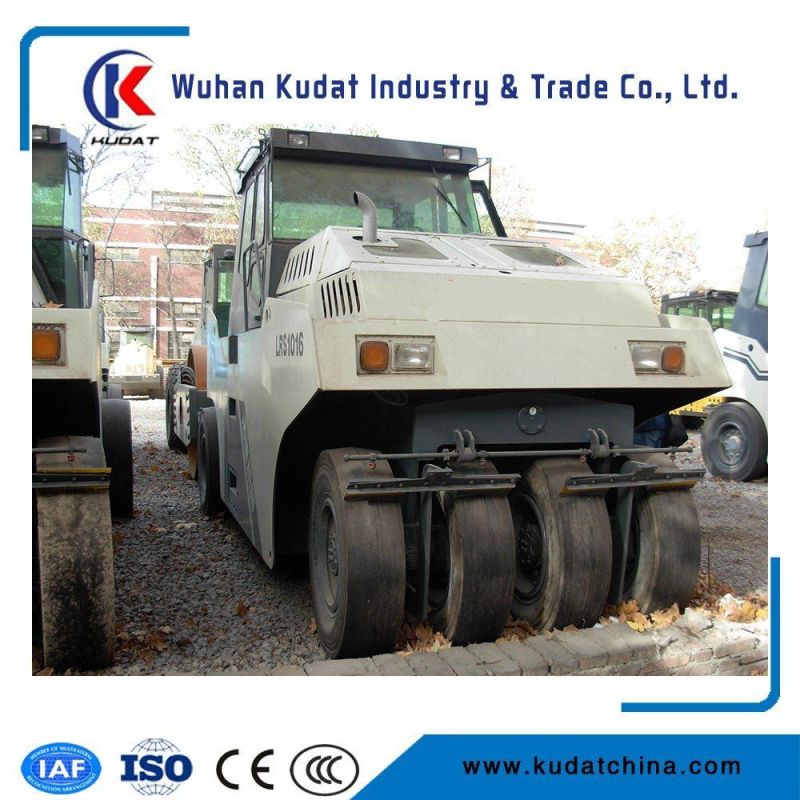

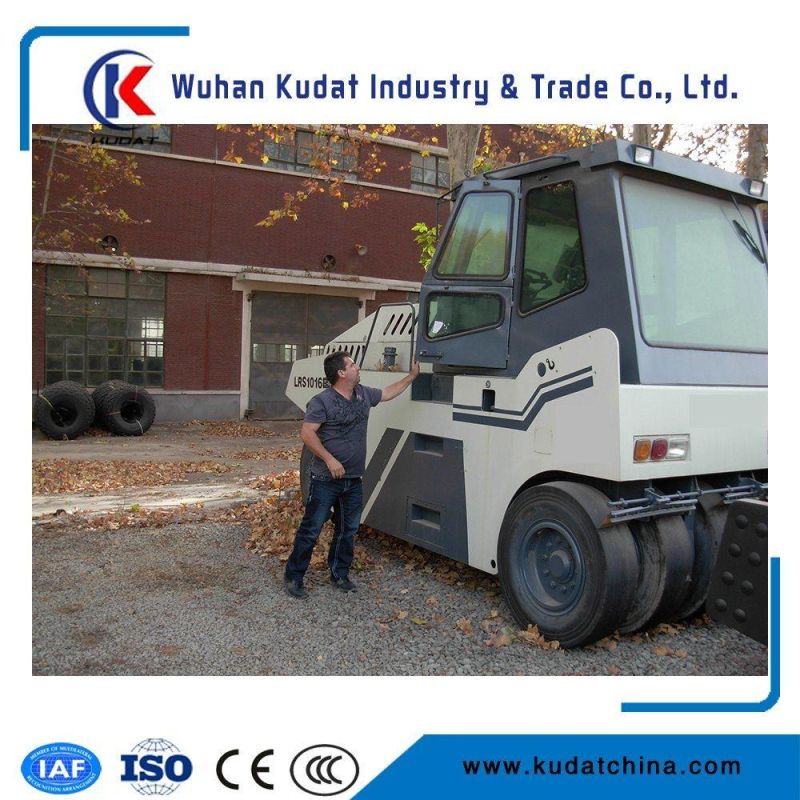

Pneumatic smooth-tire rollers is suitable for compaction of various cohesive and non-cohesive materials
such as sandy soil, crushed stone, stabilized soils, bituminous concrete and rolling cement concrete (RCC) on
road surface construction, especially for final compaction of asphalt surface on high-class highway,which is
super quality compaction equipment for high-class highway, airport, municipal road and industrial ground.
Powerful B series water cooled turbocharged diesel engine with advanced performance.
Compact gearbox with speed-shift synchronous unit or power-shift dynamic-hydraulic gearbox for advanced
design and convenient control.
Power sprinkler system with corrosion free materials and 800L high capacity reinforced polyethylene water
tank for extended operation.
Dual adjustable instruments and controls (optional Infrared vehicle video monitor system) for convenient
operations
Unique beautiful and compact appearance with lower gravity-center.
Spacious and closed operator's cab with ventilating and air conditioning devices (optional).

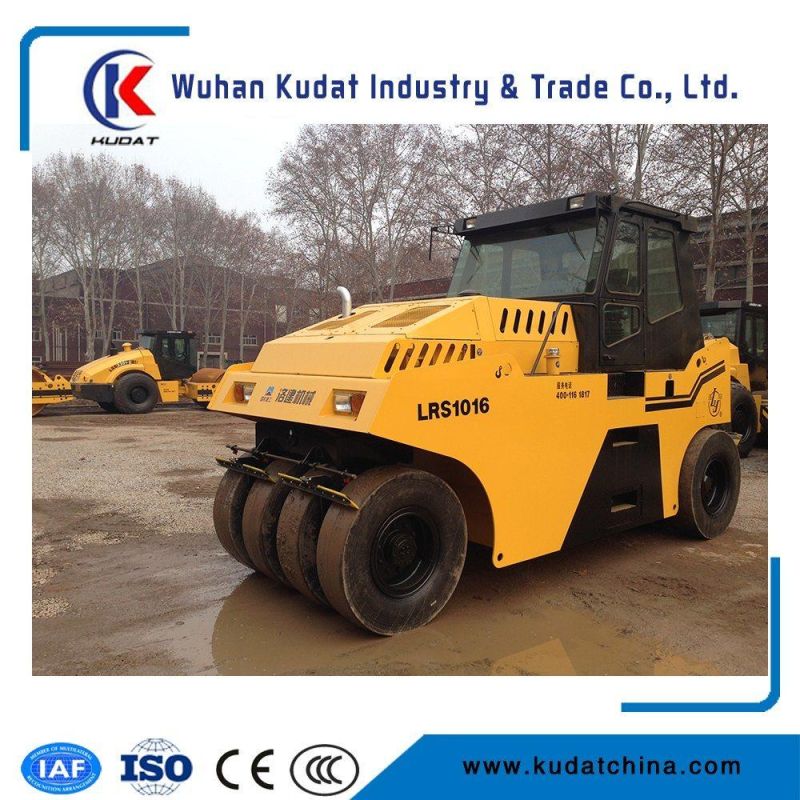

Model LRS1016
Operating mass kg 10000/16000
Tallest headway speed km/h 14.0
Tire quantity 4+5
Tire contact pressure kPa 150~300
Turning radius mm 7500
Rolling width mm 2286
Wheel overlap mm 40
Grade ability % 20
Overall Dimension mm 4770×2290×3100
Wheelbase mm 3630
Engine Type Cummins 4BT3.9
Diesel power kW 75
Rotational speed r/min 2400
