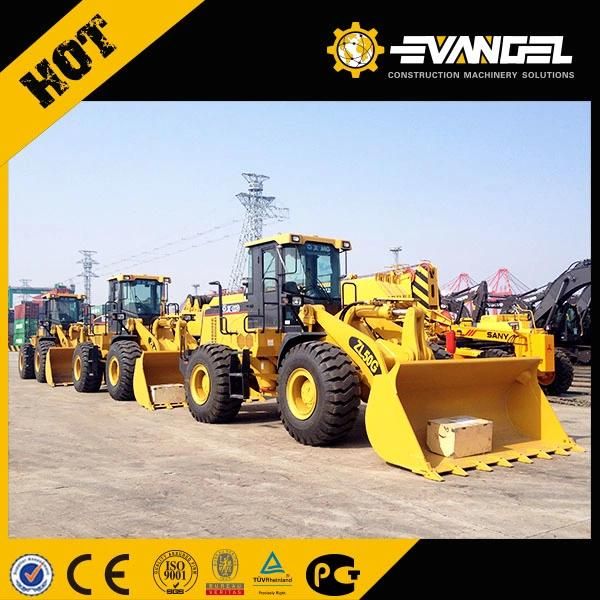

• Model NO.：ZL50GN
• Max. Lifting Height：3000 Mm
• Gantry Tilt Angle (Front / Rear)：6° , 12 °
• Min. Turning Radius：1950 Mm
• Min. Ground Clearance (Beneath The Driv：105 Mm
• Max. Traveling Speed (with Empty Load)：13 Km,H
• Max. Gradeability (with Full Load)：15%
• Transport Package：PP Bags
• Specification：CE
• Origin：Jaingsu China
• HS Code：84295100
• Production Capacity：50, 000 PCS,Year.

Item
Parameter
Unit
Rated load
5.0
t
Bucket capacity
3.0
m³
Dumping height
3100
mm
Dumping distance
1274
mm
Max.drawing force
158
kN
Max. traction
156
kN
Dimension
8010×3016×3350
Operating weight
16.5
t
Boom lifting time
≤5.6
s
Total time of three devices
≤9.9
s
Wheelbase
2900
mm
Min. turning radius (bucket outer)
6920
mm
Rated power
±35°
Travel speed
I Gear (Forward/Backward)
0~11.5/16.5
 km/h
II Gear (Forward)
0~38
 km/h
Long boom parameter

Standard bucket
Coal bucket
Bucket capacity
2.7m³
3.5m³
Rated load
4.5t
4.0t
Dumping height
3520mm
3340mm
Dumping distance
12
Dimension
8300×3016×3350
8530×3016×3350
Min. turning radius (bucket outer)
7060mm
7080mm
Operating weight
16.6t
16.7
