• Model NO.：XM120F
• Automatic Grade：Automatic
• Product Capacity：40～400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• Operating Weight：21000kg
• Ground Clearance：60%
• Max. Milling Width：500mm
• Transport Package：Standard Package for Shipment
• Specification：ISO
• Trademark：EVANGEL
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：600 PCS,Month

Model

XM120F

Max. milling withmm1200Max. milling depthmm320Milling wheelNumber of tools 144Drum diameter with toolsmm980EngineModel QSC8.3Rated powerkW209Rated speedrpm2100SpecificationsOperating speedm/min0~32Travel speedkmh0~5.2Ground clearance%80Ground clearancemm≤300Operating weightkg21000VolumeFuel tankL660Hydraulic oil tankL120Water tankL1250ConveyorWidthmm600MeasurementOverall machinery LxWxHmm5900×2140×3000Conveyor LxWxHmm8200×1200×1500Travel mode Tire

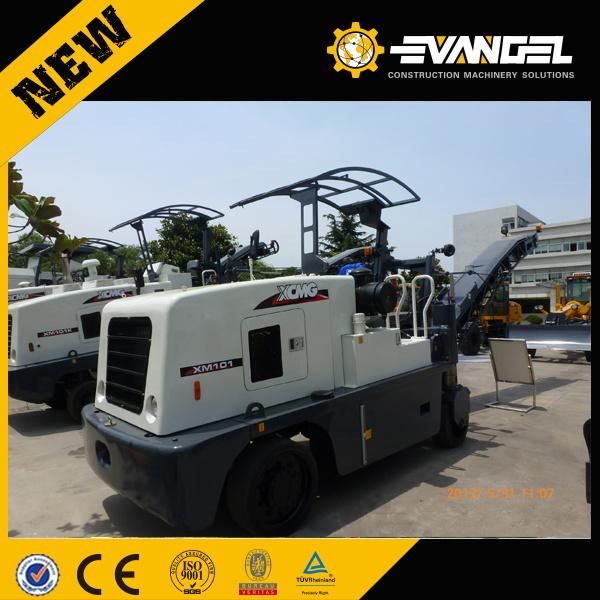

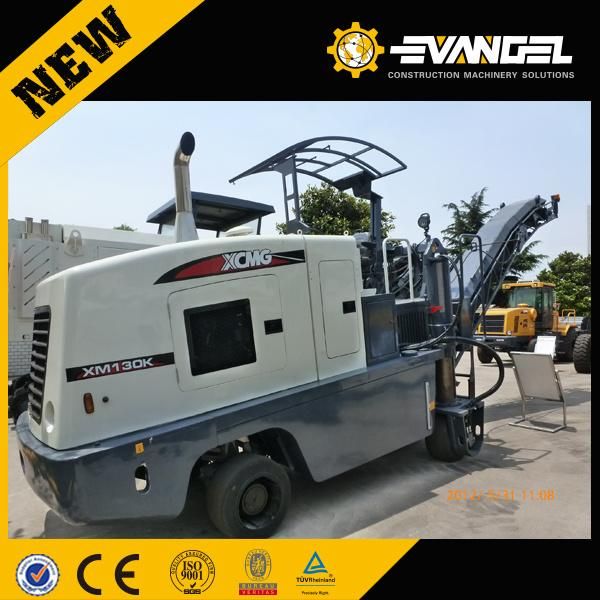

XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
? Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
? Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
? The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.
? The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
? The imported hydraulic elements have high working reliability.
? Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
? Hydraulic handheld breakers and rumble strip equipment can be selected.
