• Model NO.：SWD220Y
• Condition：New
• Color：Yellow
• Track Width：560mm
• Blade Type：Straight
• Blade Height：1590mm
• Max. Tractive Force：281kn
• Warranty：1 Year
• Transport Package：Naked
• Specification：220 hp
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：300 PCS,Month

Basic Info.

Model NO. SWD220Y Condition New Color Yellow Track Width 560mm Blade Type Straight Blade Height 1590mm Max. Tractive Force 281kn Warranty 1 Year Transport Package Naked Specification 220 hp Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 300 PCS/Month

Product Description

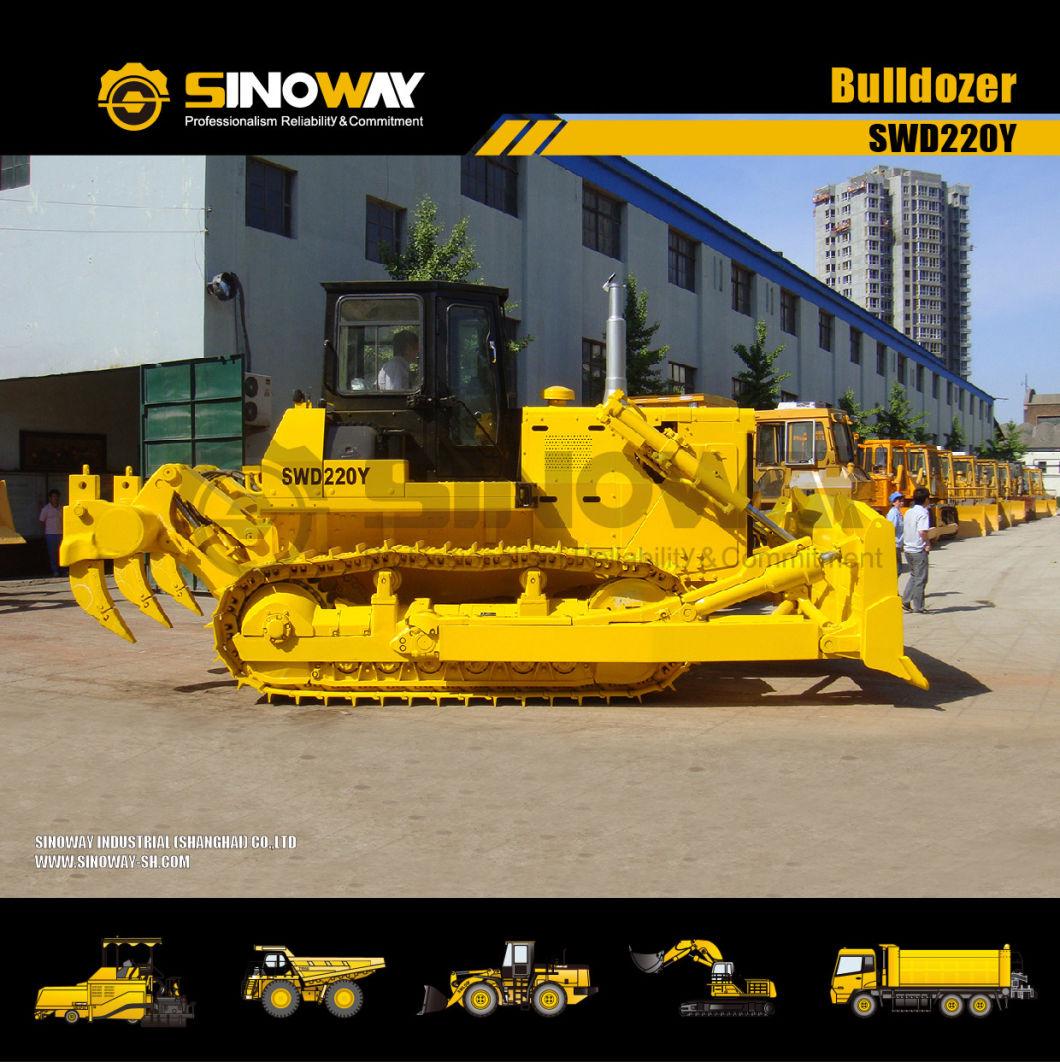

SWD220Y bulldozers Highlights

Hydraulic controlled gearshift is realized by operating the controlvalveand without having to stop th machinewhen operated with th torqu converter to save operator effort .The transmission is combined with four planets IInes and a rotary lock-up clutchmultiple disc clutchhydraulic controlled releaseforced lubricationwith 3 speeds forward and 3 speeds backward.

The hydraulic torque converter for is a newly developed product with the improvement made to the materiapl rocess and layout based on introduced Japan KOMATSU technology. It features simple architectureeasy maintenancelow noiseexcellent reliabilitystepless speed regulating which ensure perfect match to the machine for an outstanding traction and a stable transmission.

The final drive uses triangle Spline and tip relie1crowned gear drive for enhanced balance and the stability during power transmissionlower noiseexcellent reliability and added life.

Engine
Model	Cummins
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	162KW
Rated speed	1800rpm
Implement Hydraulic System
Hydraulic flow rate	257L/min
Hydraulic pressure	13.7MPa
Pump type	Double gear pump
Control valve	Hydraulic operated,pilot control
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	6
Number of carrier rollers (each side)	(4 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	Hydraulic
Track pitch	216mm
Track width	560mm
Number of track shoes (each side)	38
Track length on ground	2730mm
Ground clearance	405mm
Main Technical Specification
Operating weight(without ripper)	25500Kg
Ground pressure(without ripper)	0.078MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	5750×3725×3575mm
Max. tractive force	200KN
Working Equipment
Blade type	Straight
Width	3725mm
Height	1315mm
Max. digging depth	540mm
Max. lift above ground	1210mm
Tilting angle	11°
Blade capacity	5.45m3
Transmission System
Gear box	Power shift, forced lubrication,planetary gear
Torque converter	3 elements, single stage,single phase
Final drive	Spur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.6/4.3
Forward/Reverse II	6.5/7.7
Forward/Reverse III	11.2/13.2
Service Capacities
Fuel tank	450L
Water tank	79L
Steering clutch	Wet, multiple disc, spring loaded, hydraulically released
Steering brake	Wet, band brake, operated with hydraulic booster, valve inner linkage

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
Company Name	Sinoway Industrial (Shanghai) Co.,Ltd
Add	30 A1, No.58, New Jinqiao Road ,Shanghai, China
Tel	+86 21 68598616
Fax	+86 21 50191951
Website	sinoway-sh.en.made-in-china.com
