• Model NO.：SWD320Y
• Condition：New
• Color：Yellow
• Engine：Cummins
• Blade Type：Straight
• Blade Capacity：7.3m3
• Track Width：560 mm
• Operating Weight：35.9 Ton
• Warranty：One Year
• Transport Package：Nude
• Specification：IS0
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 PCS,Month

Basic Info.

Model NO. SWD320Y Condition New Color Yellow Engine Cummins Blade Type Straight Blade Capacity 7.3m3 Track Width 560 mm Operating Weight 35.9 Ton Warranty One Year Transport Package Nude Specification IS0 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 PCS/Month

Product Description

Highlights of SINOWAY 320HP Bulldozer SWD320Y With the maturest technology introduced, Sinoway offers both flat design track dozers as Komatsu and elevated track bulldozers as Caterpillar. As a supplement, Sinoway provide also wheeled bulldozer for your application which crawler dozers are not allowed. From a wide horsepower range of 80HP to 430HP, with various blade types and attachments available, the last thing now is just selecting the right bulldozer for your application.

1.The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity.

2.The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Cummins engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine.

3.The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.

4.The low-drive final drive can provide powerful drive force and efficient gradeability. Ours crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity.

5.The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.

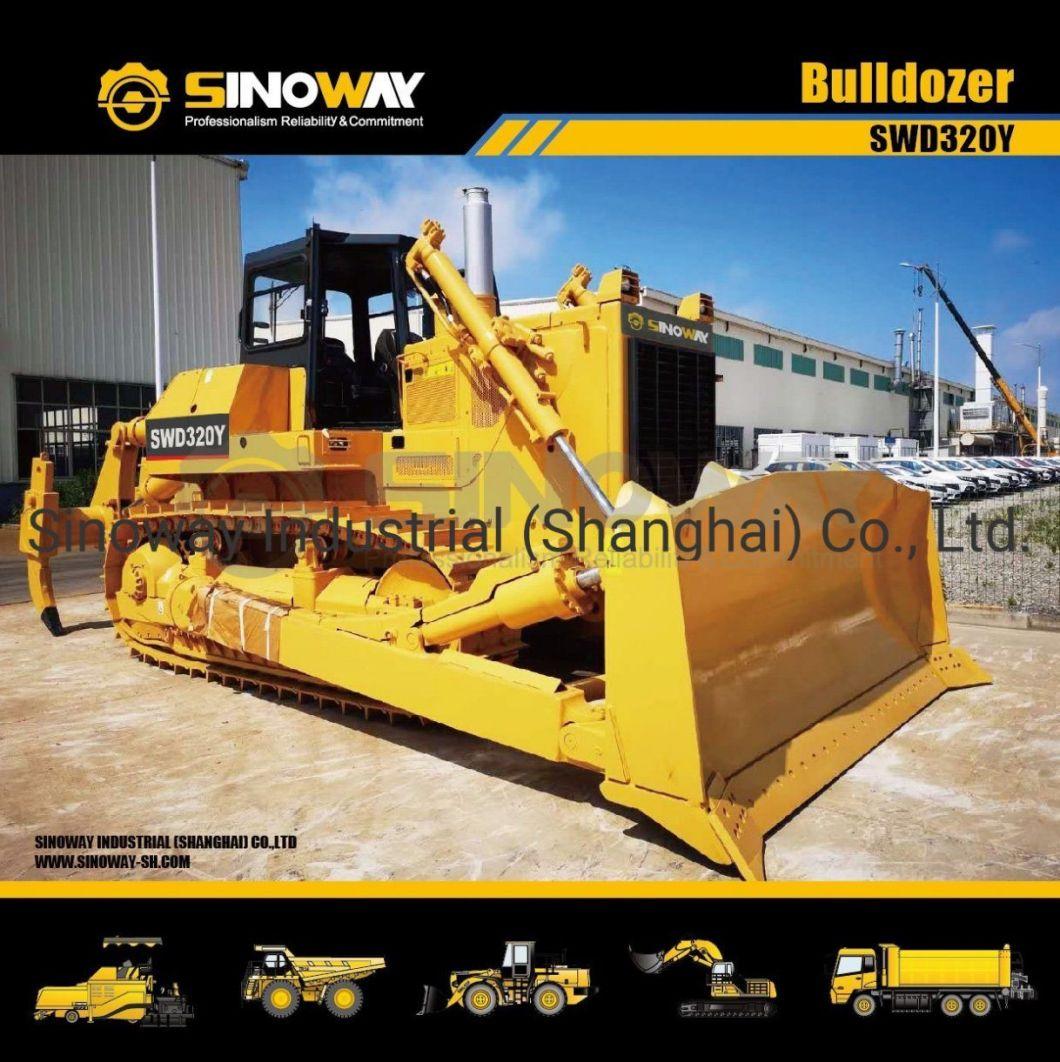

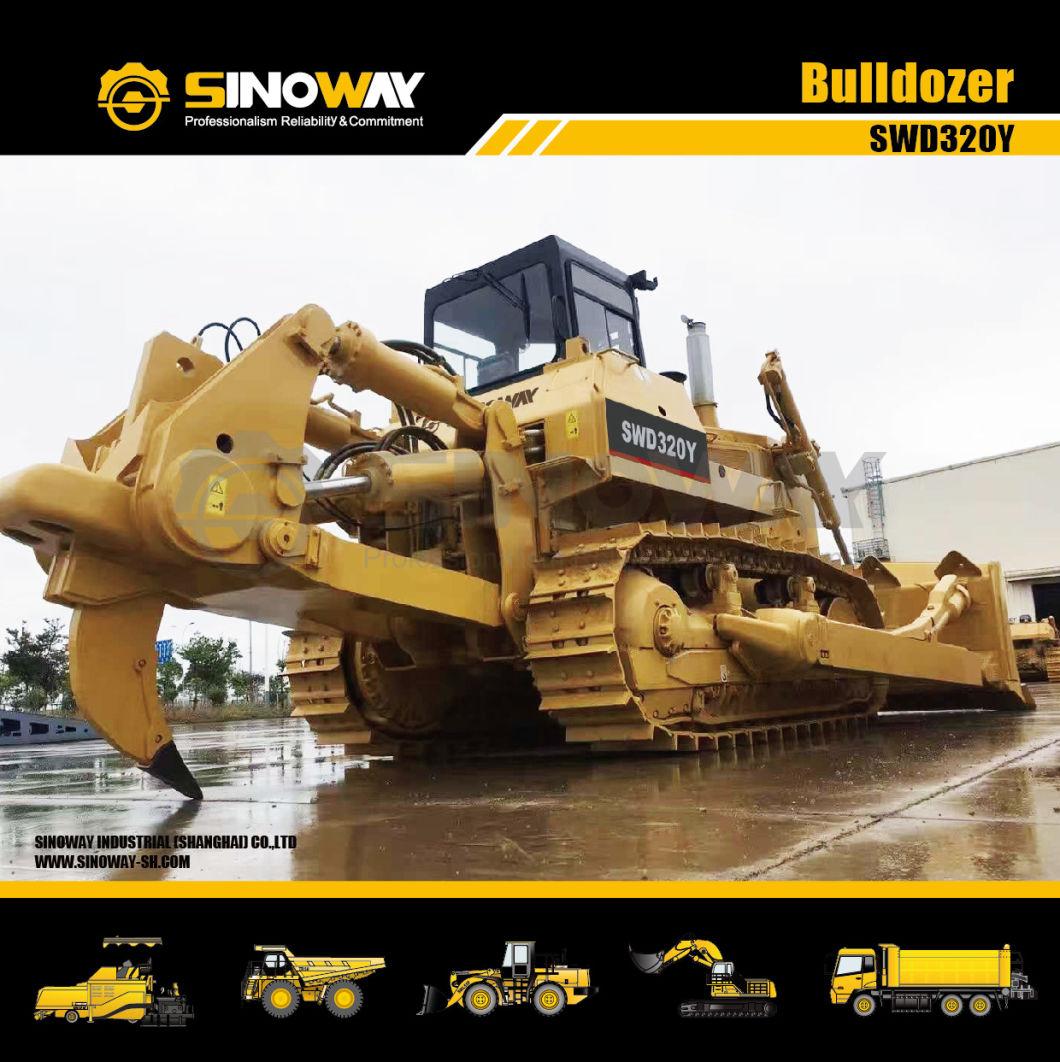

Machine Show



Specifications


Engine
Model	Cummins NT855
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	257KW
Rated speed	2000rpm
Implement Hydraulic System
Hydraulic flow rate	335L/min
Hydraulic pressure	13.7MPa
Pump type	Double gear pump
Control valve	Hydraulic operated,pilot control
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	7
Number of carrier rollers (each side)	(5 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	Hydraulic
Track pitch	228.6mm
Track width	560mm
Number of track shoes (each side)	41
Track length on ground	3150mm
Ground clearance	500mm
Main Technical Specification
Operating weight(without ripper)	35900Kg
Ground pressure(without ripper)	0.094MPa
Grade ability	58%

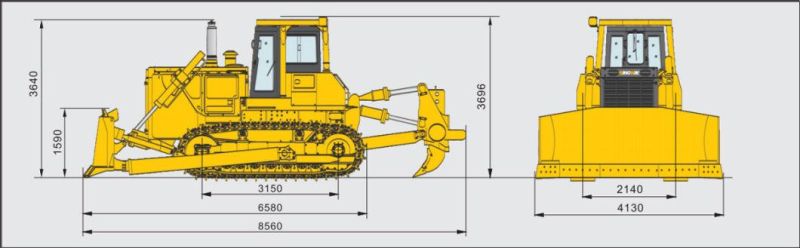

Overall dimensions (L×W×H,without ripper)	6880×4130×3640mm
Max. tractive force	281KN
Working Equipment
Blade type	Straight
Width	4130mm
Height	1590mm
Max. digging depth	560mm
Max. lift above ground	1560mm
Tilting angle	14°
Blade capacity	10m3
Transmission System
Gear box	Planetary gear,hydraulic actuated, forced lubrication
Torque converter	3 elements, single stage,single phase
Final drive	Spur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.6/4.4
Forward/Reverse II	6.6/7.8
Forward/Reverse III	11.5/13.5
Service Capacities
Fuel tank	600L
Water tank	121L
Implement oil tank	164L
Steering clutch	Wet, multiple disc, spring loaded, hydraulically released
Steering brake	Wet, band brake, operated with hydraulic booster
