• Model NO.：L68-C3
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Operating Weight (Kg)：21500
• Maximum Breakout Force (Kn)：180
• Total Cycle Time (S)：11.3
• Engine Model：Wp10
• Overall Dimensions of Machine (mm)：8670*3072*3640
• Wheelbase (mm)：3400
• Fuel Tank (L)：230
• Rated Bucket Capacity (Cbm)：3.5
• Rated Loading Capacity (T)：6
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：Shanghai,Qingdao,Lianyungang
• Trademark：shantui
• Origin：China
• HS Code：8429521200
• Production Capacity：300piece,Month

Basic Info.

Model NO. L68-C3 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Operating Weight (Kg) 21500 Maximum Breakout Force (Kn) 180 Total Cycle Time (S) 11.3 Engine Model Wp10 Overall Dimensions of Machine (mm) 8670*3072*3640 Wheelbase (mm) 3400 Fuel Tank (L) 230 Rated Bucket Capacity (Cbm) 3.5 Rated Loading Capacity (T) 6 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification Shanghai/Qingdao/Lianyungang Trademark shantui Origin China HS Code 8429521200 Production Capacity 300piece/Month

Product Description

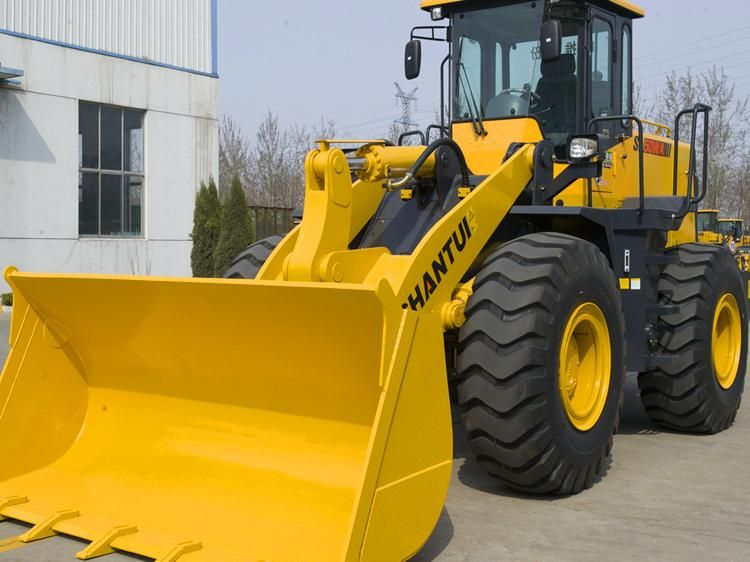

Shantui Wheel Loader L68-C3 With 6 Ton Rated loading capacity  Power System

Weichai electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.

 The machine is provided with three power modes, namely no-load, medium-load, and heavy-load modes, at choice depending on the actual working load to realize the reasonable match among power, efficiency, and energy consumption.

Power System

Weichai electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.

 The machine is provided with three power modes, namely no-load, medium-load, and heavy-load modes, at choice depending on the actual working load to realize the reasonable match among power, efficiency, and energy consumption.

Driving/Riding Environment

The new generation cab with all-new design optimization and large door structure is mold formed to guarantee broader vision and more fashionable appearance.

All-new cushioned seat with large adjustment range provides the driver with the most comfortable operating posture.

The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The standard pilot control system features handy and comfortable operations.

The standard radio and audio provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.

Structural parts

All-new heavy-load frame and working device with enhancement design achieve more reasonable force application and meet the needs of continuous, heavy-load, and severe working conditions.

The bucket in arc structure design reduces the material penetration resistance. The spill plates are designed on the top to effectively prevent the falloff of material and prolong the lives of rear hinge pins.

With 3,400mm wheelbase, the machine guarantees high tipping load and good stability.

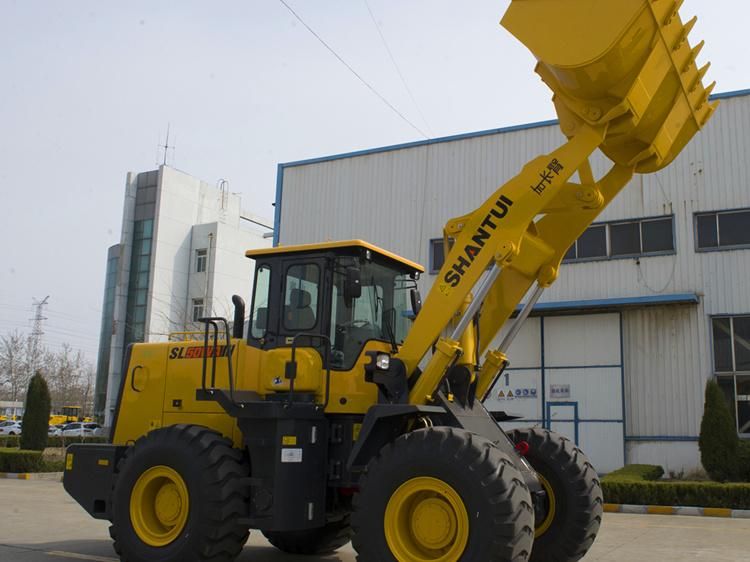

The new boom features excellent adaptability, with the dumping height reaching 3,325mm.

Convenient maintenances

The hoods, cab, ladder, and handrails of the machine are optimized and upgraded to realize powerful human-machine interaction and easy maintenances.

PARAMETER

Parameter name	L68-C3 HD (Heavy-duty version)	L68-C3 CH (Coal version)	L68-C3 MH (Ore version)
Performance parameters
Operating weight (Kg)	21500	20900	21960
Maximum dumping height (mm)	3325 (Standard boom)3450 (Extended boom)	3755 (Long Boom)	3288
Dumping reach (mm)	1270 (Standard boom)1275 (Extended boom)	1266 (Long Boom)	1281
Maximum breakout force (kN)	180	180	180
Total cycle time (s)	11.3	11.3	11.3
Engine
Engine model	WP10	WP10	WP10
Rated power/rated speed (kW/rpm)	178/2200	178/2200	178/2200
Overall dimensions
Overall dimensions of machine (mm)	8670*3072*3640	8725 (Extended boom)/9055 (Long Boom)*3050*3050	8890*3072*3640
Driving performance
Forward speed (km/h)	Planetary type: F1:0-12,F2:0-38 Electronic control type: F1:0-7,F2:0-12,F3:0-25,F4:0-38	Planetary type: F1:0-12,F2:0-38 Electronic control type: F1:0-7,F2:0-12,F3:0-25,F4:0-38	Planetary type: F1:0-12,F2:0-38 Electronic control type: F1:0-7,F2:0-12,F3:0-25,F4:0-38
Reversing speed (km/h)	Planetary type: R:0-17 Electronic control type: R1:0-7,R2:0-12,R3:0-25	Planetary type: R:0-17 Electronic control type: R1:0-7,R2:0-12,R3:0-25	Planetary type: R:0-17 Electronic control type: R1:0-7,R2:0-12,R3:0-25
Chassis System
Wheelbase (mm)	3400	3400	3400
Tank capacity
Fuel tank (L)	230	230	230
Working device
Rated bucket capacity (m³)	3.5	4	3.5
Rated loading capacity (t)	6	6	6
