300-340t/H Asphalt Bitumen Mixing Batching Plant

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Object：Asphalt Concrete Pavement
  • Moving Type：Fixed

Base Info

  • Model NO.：sc87
  • Mixing Method：Continuous Drum
  • Automatic Grade：Automatic
  • Product Capacity：40～400t,h
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • After-Sales Service Provided：Engineers Available
  • Heat Conduction Oil Stove：500,000 Kcol,H
  • Emission Standard：50mg,Nm3
  • Fuel Oil：5.5-7 Kg,T
  • Mixing Cycle：45s
  • Transport Package：Sea Worthy Packing
  • Specification：CE
  • Trademark：Super-above
  • Origin：Jiangsu, China
  • HS Code：8474310000
  • Production Capacity：5000PC,Year

Description

ModelLB1500LB2000LB3000LB4000LB5000Rated output120t/h160t/h240t/h320t/h400t/hNumber of cold material hoppers4x9 m³5x20 m³5x20 m³6x20 m³6x20 m³Number of screen layers4 layers5 layers5 layers6 layers6 layersCapacity of mixer1500kg2000kg3000kg4000kg5000kgCapacity of finished product silo90t150t250t250t250tStandard footprint28mx47m35mx50m42mx56m46mx58m56mx59mStandard power installed372kW453kW650kW782kW949kW

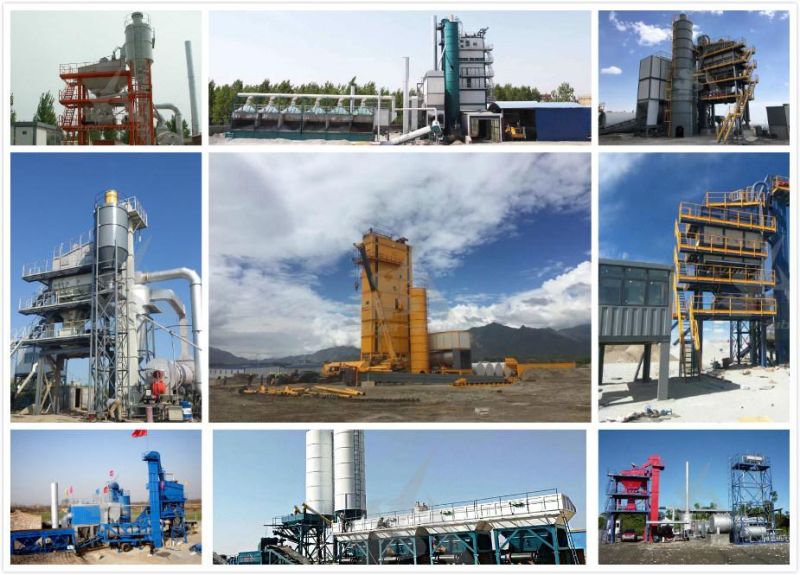

Our Cases
