• Model NO.：PD165Y
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Transport Package：Nude Package
• Specification：5850*3416*6294
• Trademark：PENGPU
• Origin：China
• Production Capacity：15sets,Mon

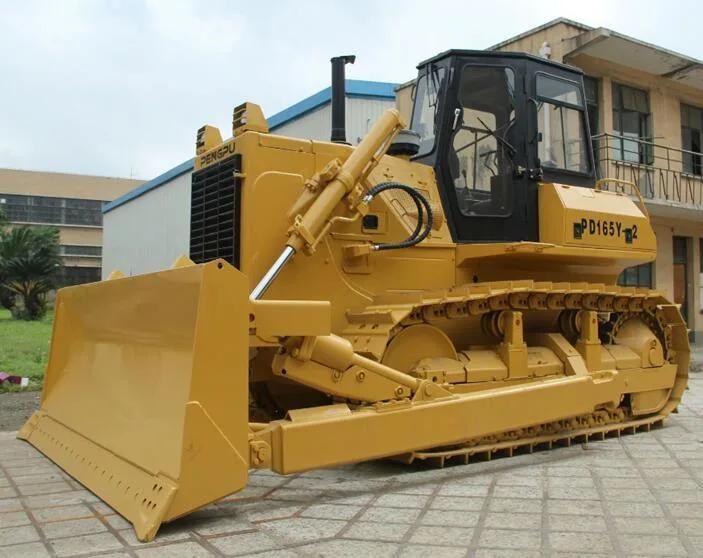

Pengpu Bulldozer PD165Y-2ModelPD165Y-2Operating weight (kg)16700Dozing capacity (m3) Staight tilt blade 4.5;
Angle blade 4.5;

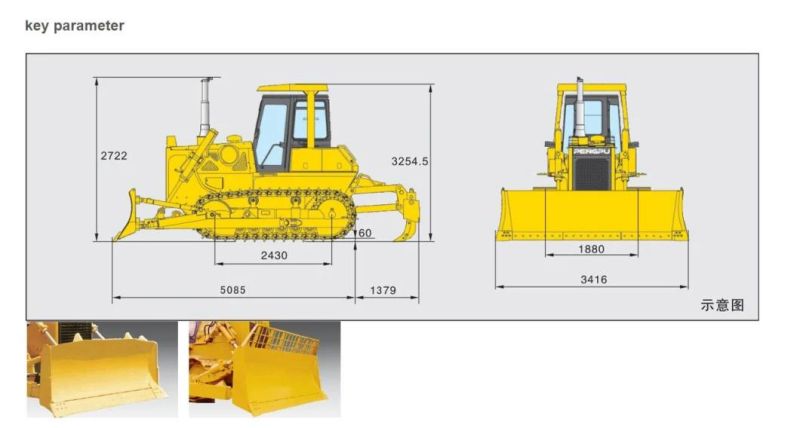

U blade 5.6Engine model SC11CB184G2B1  Rated power (kw/rpm)135Gradeability °30Number of carriers (each side)2Number of track rollers (each side)6Number of track shoes (each side)37Width of track shoe (mm)510Track gauge (mm)1880Overall Dimensions (LxWxH)5850x3416x6294

Gear Box

The gear box is of the planetary gears type, by operating hydraulic control valve for traveling forward and backward. It features planetary gears, multi-disc clutch, hydraulically applied forced lubrication, 3 speeds forward and 3 speeds backwards.Torque Converter The torque converters are of the single stage, single phrase, 3 elements hydraulic type with reasonable structure and excellent reliability, which provide optimum matching with the machines. The outstanding transmissions comparing to the normal ones means the automatic adjustment to the field condition, gradually speed change, improved machine lifetime and traveling ability, easy maintenance, improved working comfort and torque limit set protection function.The Final Driving For tip relieve and crowned gears which features large loading capacity, stable transmission and long lifetime
