2021 New 220HP Small Crawler 26ton Wetland Bulldozer Pd220ys
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Support
- Warranty：1year
- Type：Universal Type
- Transmission：Hydraulic - Mechanical Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
Base Info
- Model NO.：PD220Y
- Engine Power：147~515kw
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：Yellow
- Transport Package：Nude Package
- Specification：6166*4365*3626
- Trademark：PENGPU
- Origin：China
- Production Capacity：15sets,Mon
Description

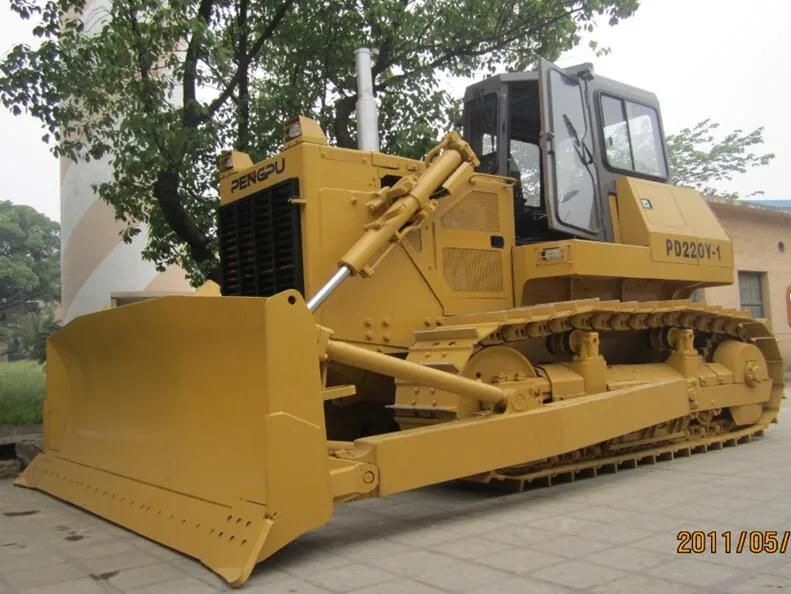

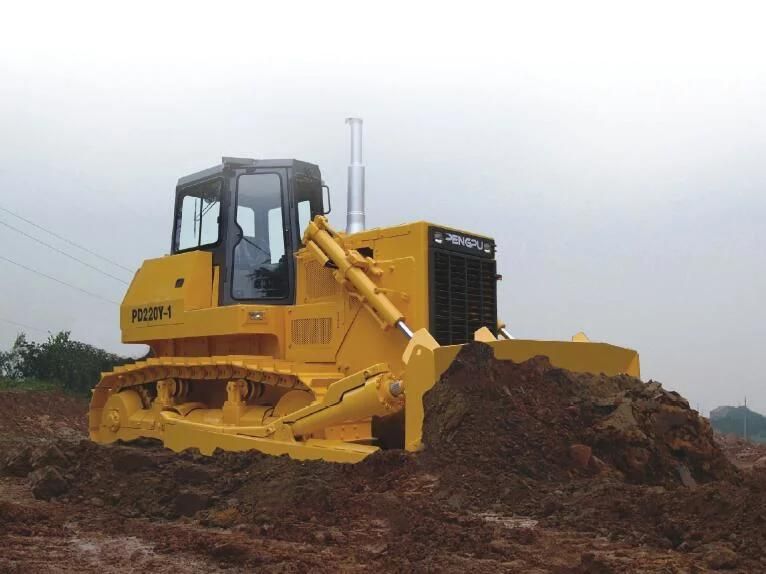

Pengpu Bulldozer PD220Y-1Model PD220Y-1 Operating weight (kg) 25600 Dozing capacity (m3) Staight tilt blade 6.4;
Angle blade 4.7;
U blade 6.5 Engine model NT855-C280 Rated power (kw/rpm) 175 Gradeability ° 30 Number of carriers (each side) 2 Number of track rollers (each side) 6 Number of track shoes (each side) 38 Width of track shoe (mm) 560 Track gauge (mm) 2000 Overall Dimensions (LxWxH) 6166x4365x3626
Hydraulic controlled gearshift is realized by operating the control valve, and without having to stop the machine,when operated with the torque converter to save operator effort.
The transmission is combined with four planets lines and a rotary lock-up clutch, multiple disc clutch, hydraulic controlled release, forced lubrication, with 3 speeds forward and 3 speeds backward.Torque Converter
The hydraulic torque converter for is a newly developed product with the improvement made to the material, process and layout based on introduced Japan technology. It features simple architecture, easy maintenance, low noise, excellent reliability, stepless speed regulating which ensure perfect match to the machine for an outstanding traction and a stable transmission.The Final Driving
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power transmission, lower noise, excellent reliability and added life.
Angle blade 4.7;
U blade 6.5
Gear Box
Hydraulic controlled gearshift is realized by operating the control valve, and without having to stop the machine,when operated with the torque converter to save operator effort.The transmission is combined with four planets lines and a rotary lock-up clutch, multiple disc clutch, hydraulic controlled release, forced lubrication, with 3 speeds forward and 3 speeds backward.Torque Converter
The hydraulic torque converter for is a newly developed product with the improvement made to the material, process and layout based on introduced Japan technology. It features simple architecture, easy maintenance, low noise, excellent reliability, stepless speed regulating which ensure perfect match to the machine for an outstanding traction and a stable transmission.The Final Driving The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power transmission, lower noise, excellent reliability and added life.
