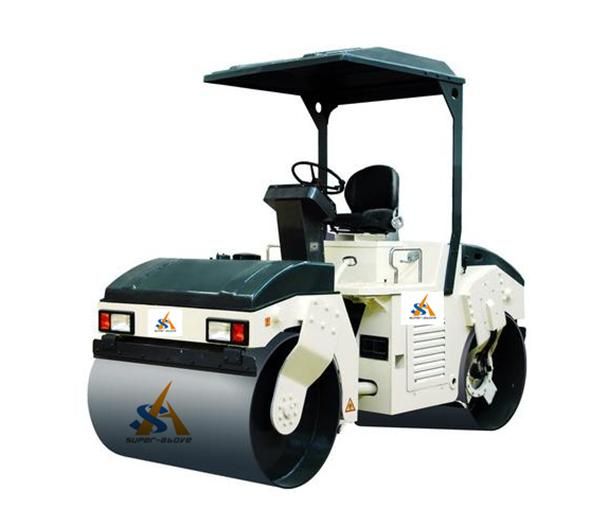

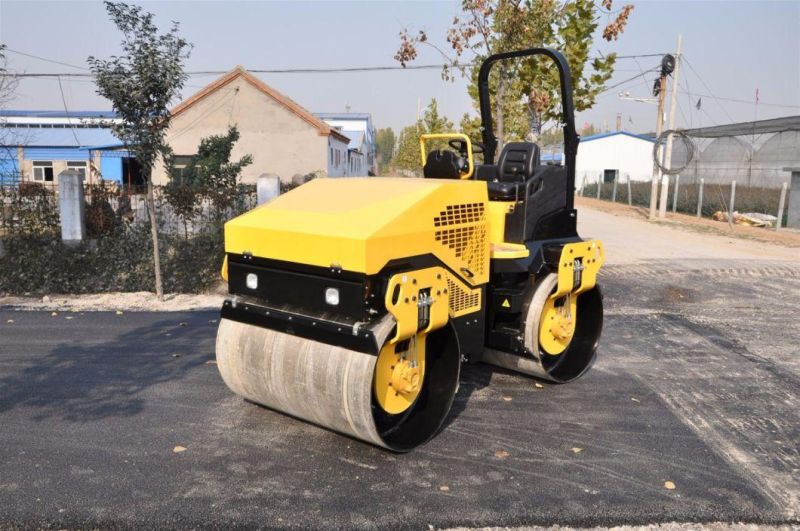

Ride on Hydraulic Vibratory Road Roller
Shanghai Super-Above Industry Holdings Co., Ltd.- Working Method：Vibration
- Axle：Biaxial Dual-Drum
Base Info
- Model NO.：SARR2
- Grinding Wheel Type：Slot Grind
- Engine Type：Petrol Engine
- Travel Speed：35cm,s
- Centrifugal Force：30.5KN
- Certification：CE, ISO 9001:2000
- Dimension(L*W*H)：2200*1200*1680mm
- Vibration Control：Electromagnetic Clutch
- Water Tank Volume：60L
- Start Mode：Electric Starting Roller
- Vibration Frequency：70Hz
- Power：9HP,13HP
- Amplitude：0.6mm
- Drive Mode：Hydraulic Drive
- Hydraulic Oil Tank Capacity：19L
- Transport Package：Naked in Container
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8474390000
- Production Capacity：1000PC,Year
Description
Model
SVH70
ST 1000
ST1300
ST1800
SVH70C
SVH70
ST 1000A
ST 1000
ST 1000B
ST 1000S
ST
1300
ST 1300 CB
ST 1800 CA
ST 1800 CD
Fuel type
Diesel
Gasoline
Gasoline
Diesel air cooling
Diesel air cooling
Diesel water cooling
Gasoline
Diesel
Water cooling diesel
Output Power(KW)
4.8
9.7
9.7
6
6
5.88
12
14
18.6
Fuel capacity(L)
3.5
6.5
6.5
15
5.5
10
30
30
30
Static line load(N/CM)
55
56/77
57/77
56/77
58/77
55/65
82/85
Vibration frequency(HZ)
70
70
70
70
65
65
65
Nominal amplitude(mm)
0.5
0.5
0.5
0.5
Exciting force(KN)
20
20
25
25
25
Water tank capacity(L)
18
65L
60L
60L
Walking speed(KM/h)
0-5
0-4
0-8
0-8
Theoretical climbing ability
30%
30%
30%
30%
Hydraulic tank capacity(L)
12
12
13
13
13
13
30
30
46
Drum size(mm)
Front530*700 Rear 425*500
500*700*2
560*900*2
560*900*2
Weight(KG)
780
900
920
900
920
1350
1370
1620
Product Description
Features:
1.The machine is equipped with the brand power,brand-name quality assurance,superior performance,easy to start.
2.The machine is selected of international brand-name Hydraulic variable pump and quantitative mator,continuously variable,it can walk backward and forward.
3.It has Hydraulic steering,steering light and flexible.
4.It has completed control function,to fully control the machine running at any time.
5.It uses the Japanese-made Nsk(seiko)bearings ,to ensure the machine's performance.
6.It is installed of luxury seats,easy adjustment,comfortable work.
7.It has streamlined body design,more beautiful and generous.
8.The machine's surface is treated by spray.
9. The product has passed CE certification.
Standard configurtion:
Variable displacement pump and fixed displacement motor
Tandem walking drive
Hydraulic articulated steering
Vibration switch on the instrument panel
Each wheel is equipped with the two blades
Gravity sprinkle system
Adjustable driver's seats
Plastic water tank
Control and warning indicators
Work chronographs
Mechchical transmission electromagnetic clutch
Anti-tilt protection
Product characteristics
Double motors drive, hydraulic vibrate, hydraulic steering, fully hydraulic roller.
1. China top brand Honda gasoline engine.
2. Imported SAUER heavy-duty variable plunger pump drives the machine stepless speed walking.
3. Double American brand cycloid hydraulic motors drive the machine walking.
4. Plastic water tank free from corrosion and convenient for water-spraying..
5. Water-spraying electrically controlled, user-friendly.
6. LED lamp at front and rear for the convenience of night construction.
7. Foldable Roller Over Protection System.
8. Built-in drive motor, good compaction along the edge.
