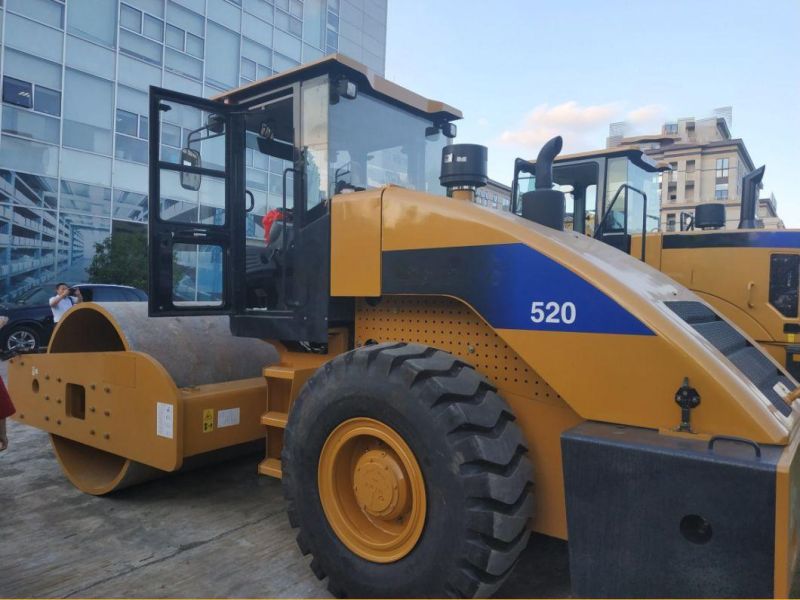

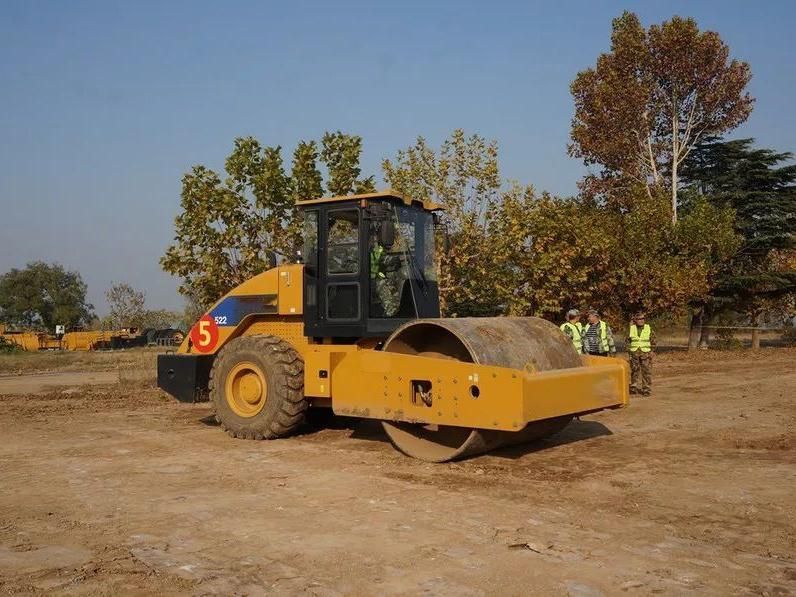

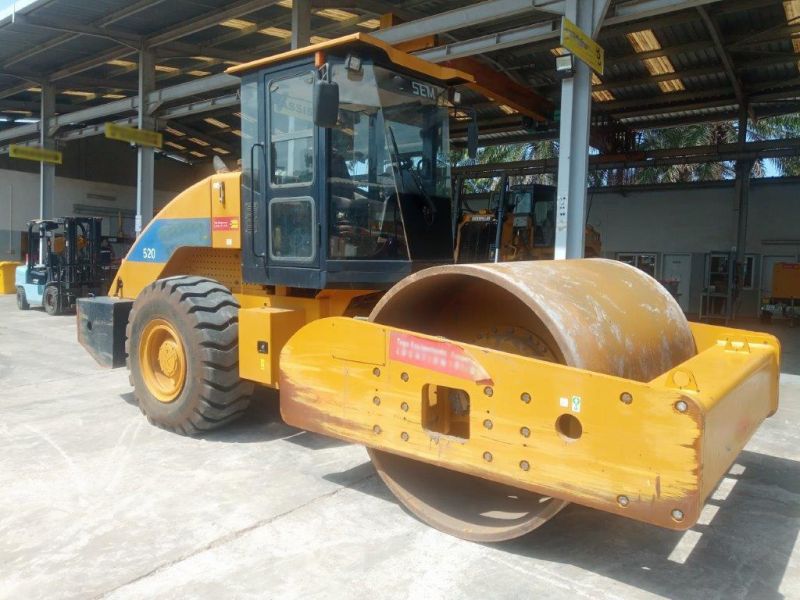

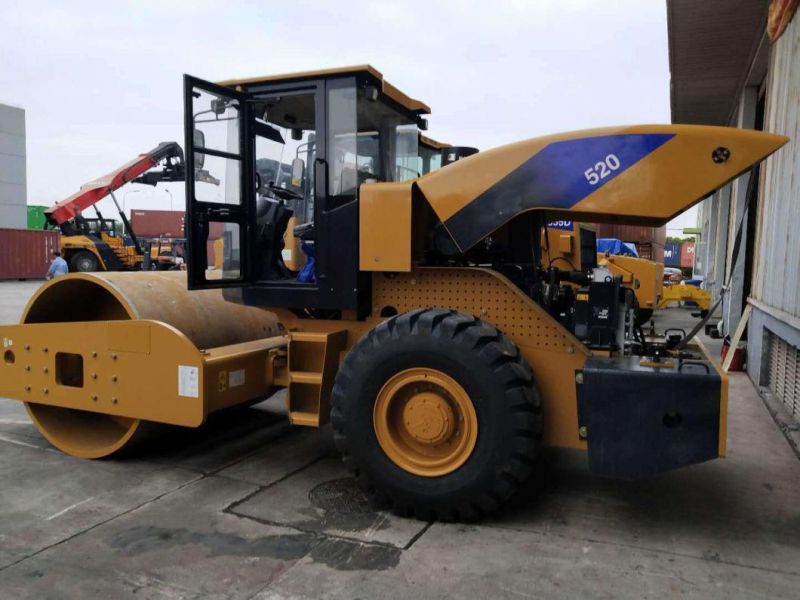

• Model NO.：SEM520
• Compaction Depth：30cm
• Engine Type：Diesel Engine
• Travel Speed：30cm,s
• Centrifugal Force：15KN
• Certification：CS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operating Weight：20000kg
• Static Pressure (N/Cm)：461
• Rated Power：129kw
• Speed (R/Min)：2000
• Drum Width (mm)：2130mm
• Speed：2000r,Min
• Specification：6150*2300*3200mm
• Origin：China
• HS Code：8501109190
• Production Capacity：200

Operating weight (kg)20000Compaction (% of XS122) Vibration frequency (high/low)  (HZ)30/28Excitation force (high/low)  (KN)360/208Static pressure (N/cm)461Engine Rated power(kw)129Speed (r/min)2000Fuel tank volume (L)262Hydraulic oil tank volume (L)80Drum Drum width  (mm)2130Drum diameter (mm)1600Drum thickness (mm)50Tires Tires type20.5-25Speed F/R I (km/h)2.98F/R II(km/h)5.88F/R III (km/h)9.6Swing angle  (°)±12Steering angle (°)±33Outer turning radius (mm)6350Max.gradeability34%
