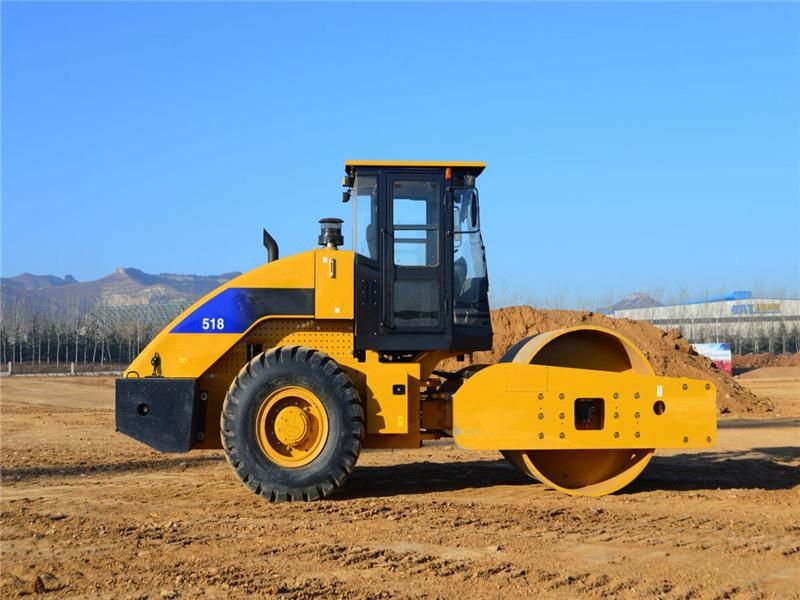

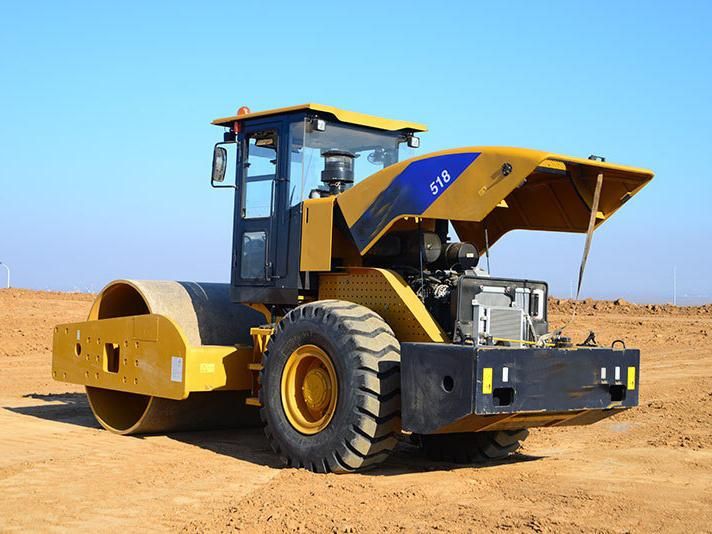

• Model NO.：SEM518
• Compaction Depth：30cm
• Engine Type：Diesel Engine
• Travel Speed：30cm,s
• Centrifugal Force：13KN
• Certification：CS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operating Weight：18000kg
• Rated Speed (R/Min)：2200
• Drum Width (mm)：2130mnm
• Wheel Base：2900mm
• Min. Ground Clearance：270mm
• Specification：4945*2844*3393mm
• Origin：China
• HS Code：8501109190
• Production Capacity：200

 Main SpecificationsEmissionChina StageIIStandard rated power-gross(kW)97.5Rated speed (r/min)2200Peak torque/speed-gross(N.m/rmp)560/1400-1600Sound level-spectator (dB(A))112Sound level-operator position with cab  (dB(A))86Compaction (% of XS122)100Composite work cycle fuel consumption (1/hr)(% of XS122)100Ambient capability-STD sea level (Deg C) Ambient capability-HA sea level (Deg C)49Ambient capability-Cold weather (Deg C)-10Operating SpecificationsMachine mass w/std config (kg)12000±3%Weight at drum w/std config (kg)6900±3%Weight on rear axle (kg)5100Static linear load (N/cm)310Max.grade ability w/o vibbration ((%)45Articulated angle (°)33±1Turning radius inside drum edge (mm)5990Compaction width (mm)2130Ground clearance (mm)442Travel speedLo range (km/h)0 to 5.5Hi range (km/h)0 to 12Hydraulic cycle timeFull turn time (s)6±0.5Vibratory systemFreqency-hi  (HZ)33Freqency-lo (HZ)30Amplitude-hi (mm)1.8Amplitude-lo (mm)0.9Centrifugal force-hi (kN)245Centrifugal force-lo (kN)150DimensionsMachine dimensions (mm)5815*2290*3130Oscillation angle (°)10±1Wheelbase (mm)2900Tread width (mm)1600Drum width (mm)2130Drum diameter (mm)1600Tire specs23.1-26 12PR12Tire pressure setting (Mpa)0.35
