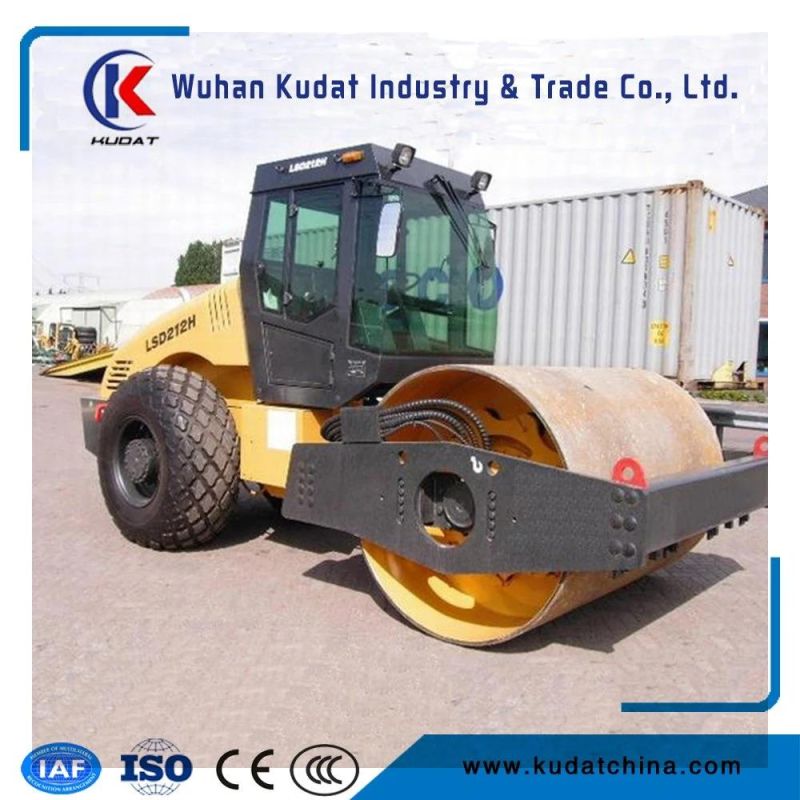

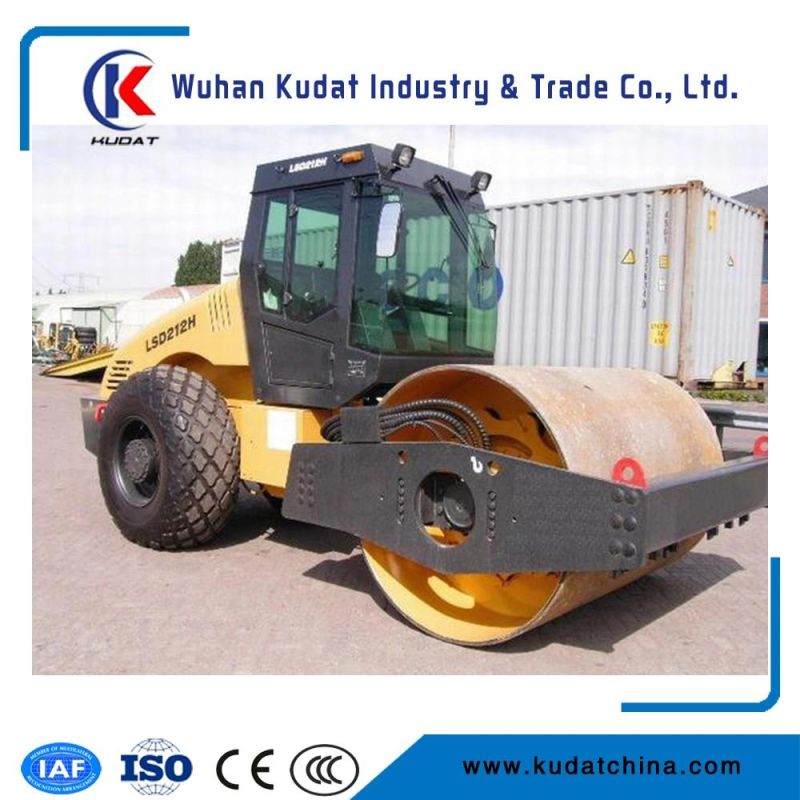

Full Hydraulic Single Drum Vibratory Roller with Ce
Wuhan Kudat Industry & Trade Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Triaxial Three-Wheel
- Grinding Wheel Type：Slot Grind
- Compaction Depth：40cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：LSD210H , LSD212H , LSD214H
- Travel Speed：10km,H
- Centrifugal Force：15KN
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Transport Package：by Sea Required
- Specification：CE
- Trademark：kudat
- Origin：China
- HS Code：8429401900
- Production Capacity：50, 000 PCS,Year
Description
Basic Info.
Model NO. LSD210H / LSD212H / LSD214H Travel Speed 10km/H Centrifugal Force 15KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package by Sea Required Specification CE Trademark kudat Origin China HS Code 8429401900 Production Capacity 50, 000 PCS/YearProduct Description
1. Hydraulic vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. On base course, sub-base and embankment fill construction, which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground.2. Powerful Cummins diesel engine; Optional diesel engine with electronic control.
3. Hydrostatic wheel & drum travel drive operated by a single lever at two range infinitely variable speeds.
4. Adjustable frequency and amplitude vibration device with imported vibrating pump and motor.
5. Parking brake hydraulically mounted in central input of the driving axle with oil-cutoff braking for reliable safety.
6. Circle arc glasses cabin with air conditioner (option) and curve engine hood for unique streamline shape appearance.
7. Engine mounted with backward power output and turnover engine hood allow easy access to the main hydraulic components.
| Model | LSD214H | LSD212H | LSD210H | |
| Operating mass | kg | 14000 | 12000 | 10000 |
| Static linear load | N/cm | 373 | 303 | 242 |
| Vibration amplitude | mm | 1.8/0.9 | 1.8/0.9 | 1.8/0.9 |
| Vibration frequency | Hz | 30/36 | 30/36 | 30/36 |
| Centrifugal force | kN | 290/200 | 270/180 | 250/160 |
| Travel speed | km/h | 10 | 10 | 10 |
| Gradeablility | % | 40 | 40 | 40 |
| Turning radius | mm | 6500 | 6500 | 6500 |
| Drum width | mm | 2100 | 2100 | 2100 |
| Wheelbase | mm | 3050 | 3050 | 3050 |
| Ground clearance | mm | 472 | 472 | 472 |
| Diesel engine model | 6BT5.9 | 6BT5.9 | 6BT5.9 | |
| Diesel engine power | kW | 110 | 110 | 110 |
| Overall dimension | mm | 6000x2250x2950 | 6000x2250x2950 | 6000x2250x2950 |
