XCMG Official Manufacturer 190HP Motor Grader Gr180 China Brand New Road Machinery with Cummins Engine for Sale
XCMG E-Commerce Inc.- Certification:TUV, UL, ISO, RoHS
- Condition:New
- Application:Railway, Mine, Farmland, Highway
- Transmission:Hydraulic
- Walking Mode:Wheeled
- Type:Medium-sized Grader
Base Info
- Model NO.:GR180
- Engine Brand:Cummins
- Forward Speed:38km,H
- Reverse Speed:23km,H
- Space of Front and Rear Axles:6219mm
- Working System Pressure:18MPa
- Rated Power/Speed:142,2200kw,Rpm
- Specification:8900*2625*3420mm
- Trademark:XCMG
- Origin:Jiangsu, China
- Production Capacity:10000,Year
Description
ItemGR180 Basic parameters Engine model 6CTA8.3-C190-II Rated power/speed 142kW/2200rpm Overall dimension (standard) 8900x2625x3420 Total weight (standard) 15400 kg Tire specification 17.5-25 Ground clearance (front axle) 430mm Tread 2156mm Space of front and rear axles 6219 mm Space of middle and rear wheels 1538 mm Performance parameters Forward velocity 5,8,11,19,23,38km/h Reverse speed 5,11,23km/h Tractive effort f=0.75 ≥79 kN Maximum gradeability ≥25% Tire inflation pressure 260kPa Working system pressure 18MPa Transmission pressure 1.3-1.8Mpa Working parameters Maximum steering angle of front wheel ±50° Maximum slant angle of front wheel ±17° Maximum oscillating angle of front axle ±15° Maximum oscillating angle of equilibrium box ±15° Maximum steering angle of frame ±27° Minimum turning radius 7.3m Scrape knife Maximum lift height 450mm Maximum cutting depth 500mm Maximum tilt angle 90° Cutting angle 28°-70° Angle of revolution 360° Length & chord height 3965x610mm Oil filling amount Coolant 50L Fuel tank 280L Engine 24L Transmission 38L Balancing box 46L Drive axle 28L

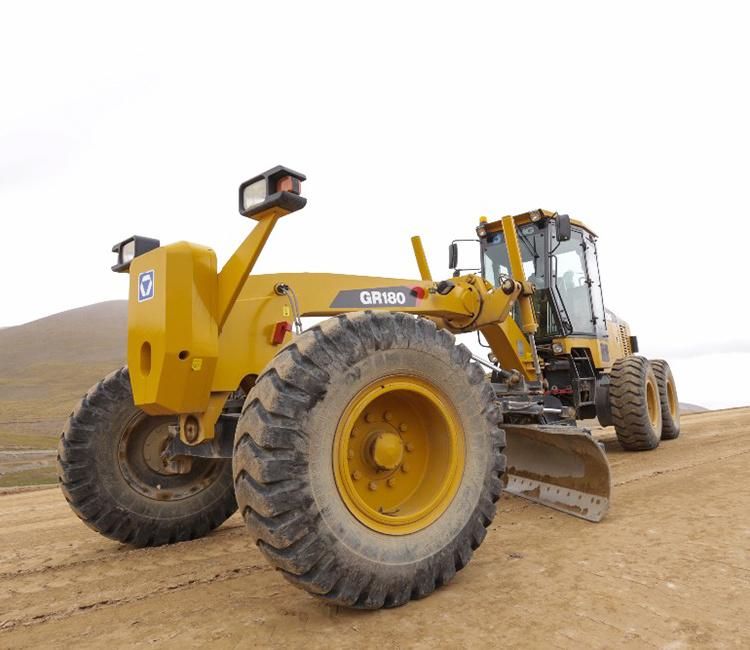

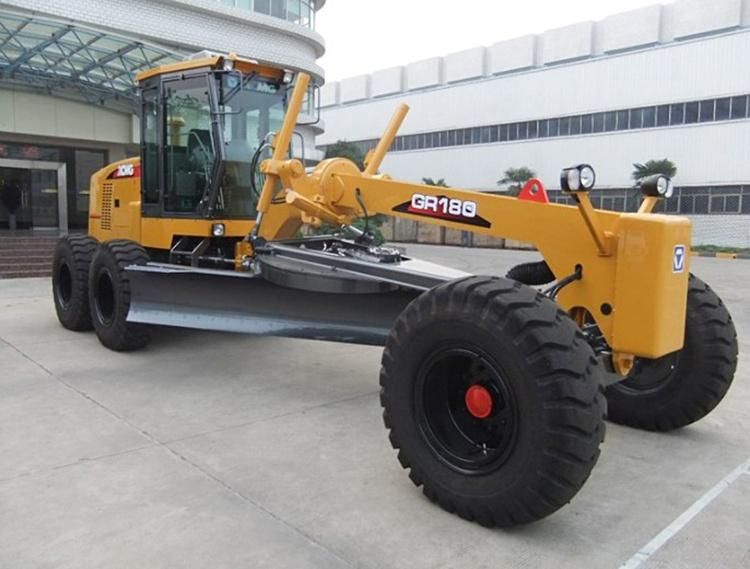

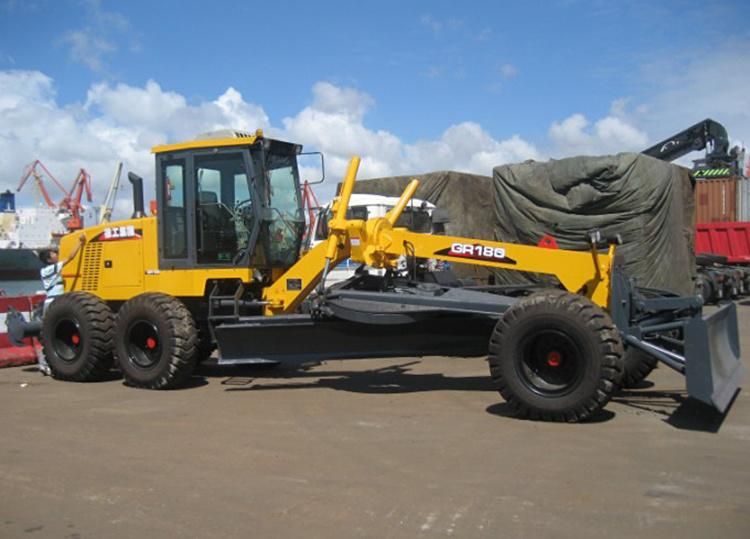

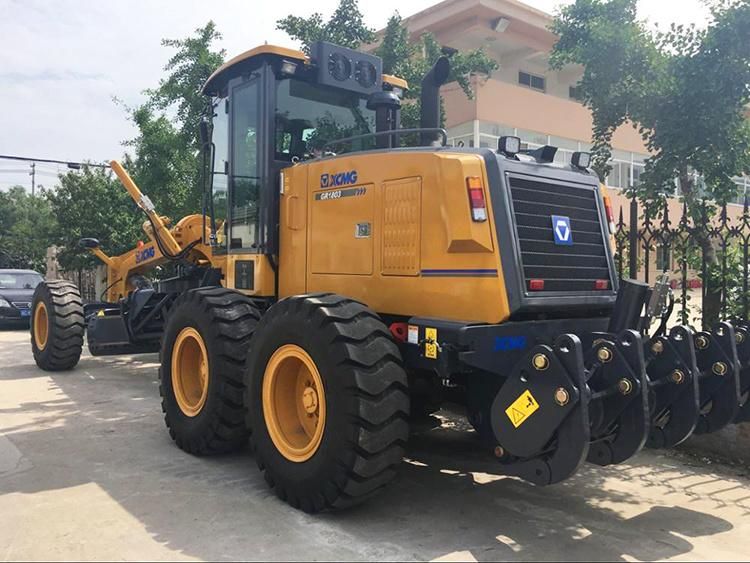

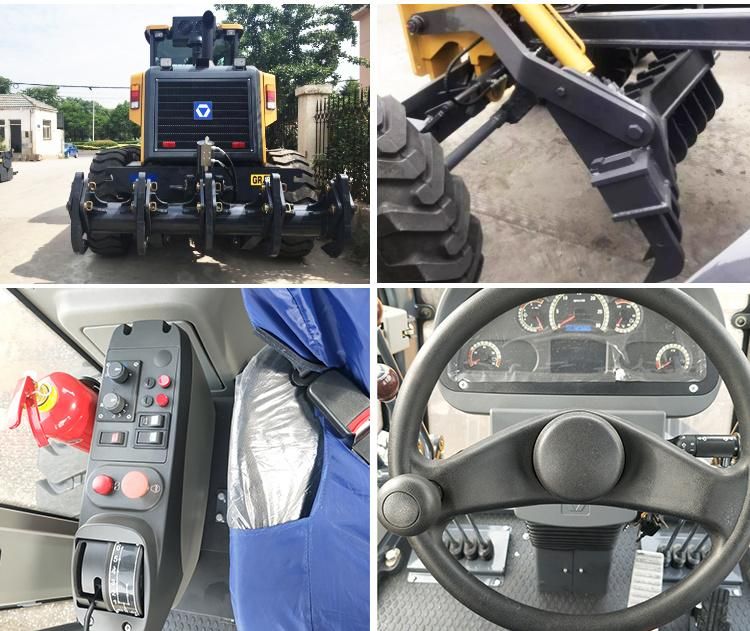

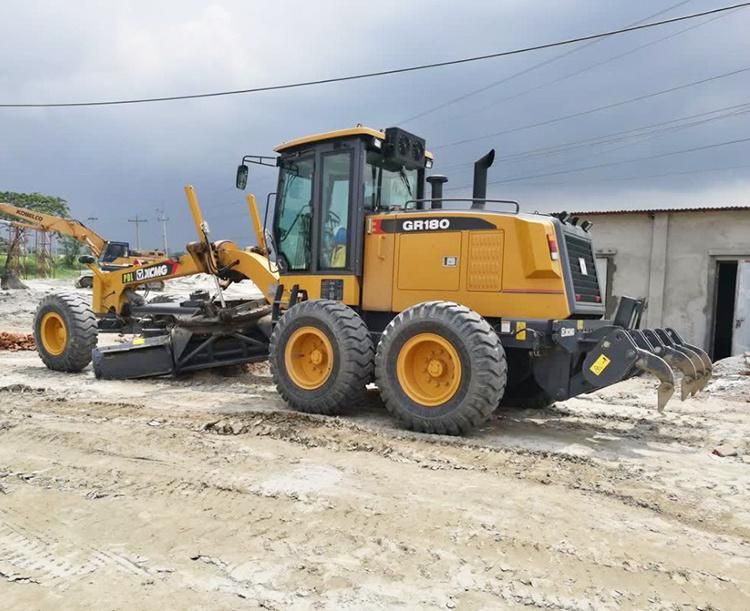

product show
product show
