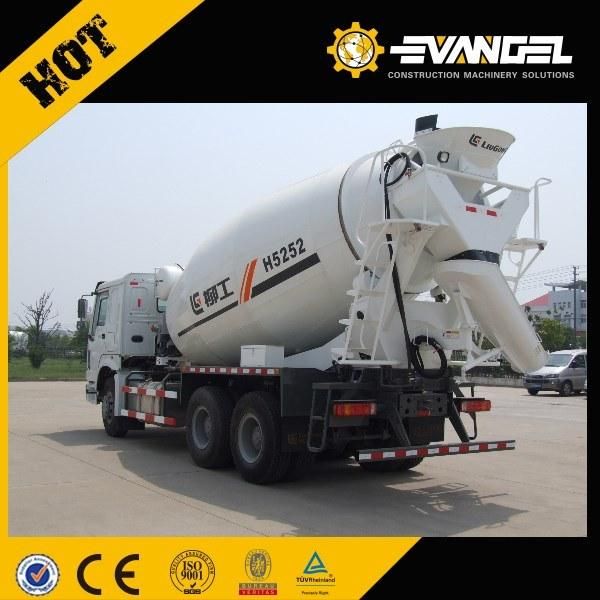

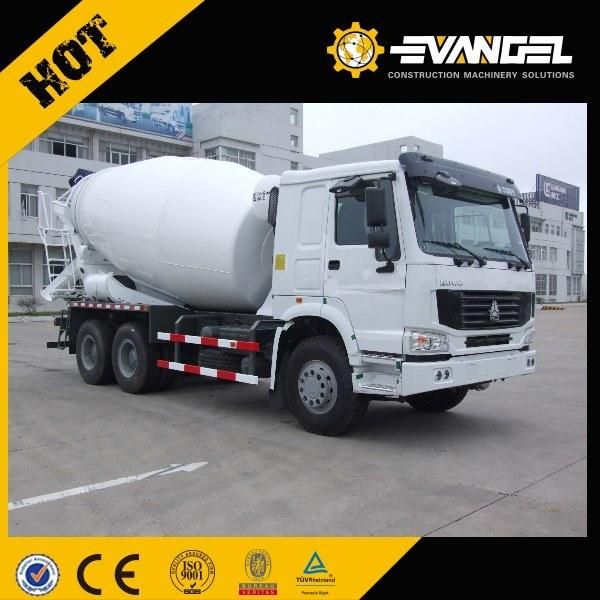

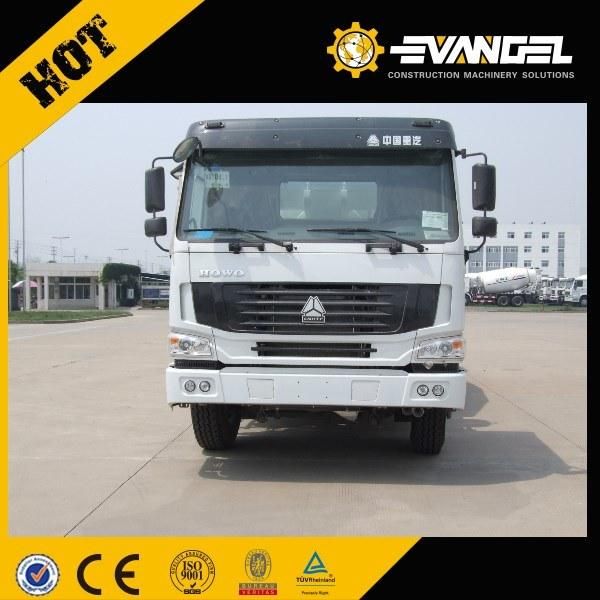

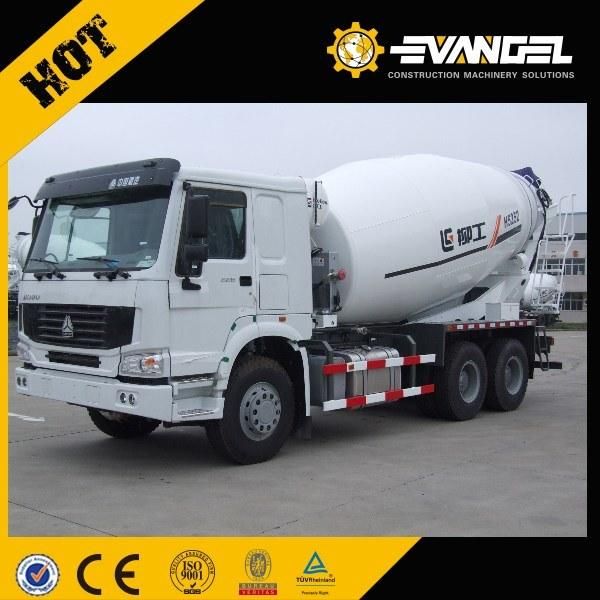

• Model NO.：Yzh5253gjbhw
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：White
• Demension：12080*2490*3990mm
• Emission：Euro III
• Reach Height：37m
• Truck Loading Capacity：12070 Kgs
• Transport Package：Nude Package
• Specification：ISO, CE
• Trademark：Liugong
• Origin：Guangxi, China
• Production Capacity：50units,Month

Chassis ModelDELONG SX5255GJBJR364Emission StageCHINA 3Engine Power247KWEngine Displacement9.726LDriving Type6× 4Wheelbase3625+1350mmMax. Running Speed77km/hMin. Turning Radius19 mBrake type Air pressure of double loopTruck loading capacity12070 kgsDrum material BaosteelB520JJDrum volume13.4 m³Drum loading capacity8 m³Drum agitating volume5 m³Material charge speed≥ 3 m³ /minMaterial discharge speed≥ 2.7 m³ /minMaterial discharge control ManualDrum remnant ratio of discharging≤ 0.5%Drum rotating speed0-18 (r/min)Drum tilt angle13°HYDRAULIC SYSTEMHydraulic pumpSauer KPV23-674RHydraulic pump type Piston pumpHydraulic motorSauer KMF23-516-50Speed reducerSauer TMG61.2Hydraulic circuit type closed circuit cycleHydraulic tank capacity20LWater tank capacity450 LDIMENSIONS&WEIGHTOverall Length8850mmOverall Width2496 mmOverall Height3780 mmTruck gross Weight25000 kgsTruck net weight12800 kgs
