• Model NO.：Yzh5253gjbhw
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：White
• Demension：12080*2490*3990mm
• Emission：Euro III
• Reach Height：37m
• Max.Travel Speed：85km,H
• Transport Package：Nude Package
• Specification：ISO, CE
• Trademark：Liugong
• Origin：Guangxi, China
• Production Capacity：50units,Month

Basic Info.

Model NO. Yzh5253gjbhw Certification ISO9001: 2000, CE Condition New Color White Demension 12080*2490*3990mm Emission Euro III Reach Height 37m Max.Travel Speed 85km/H Transport Package Nude Package Specification ISO, CE Trademark Liugong Origin Guangxi, China Production Capacity 50units/Month

Product Description

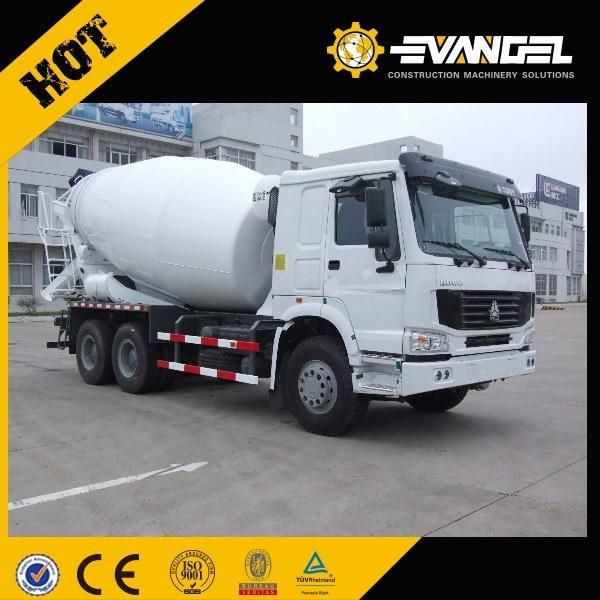

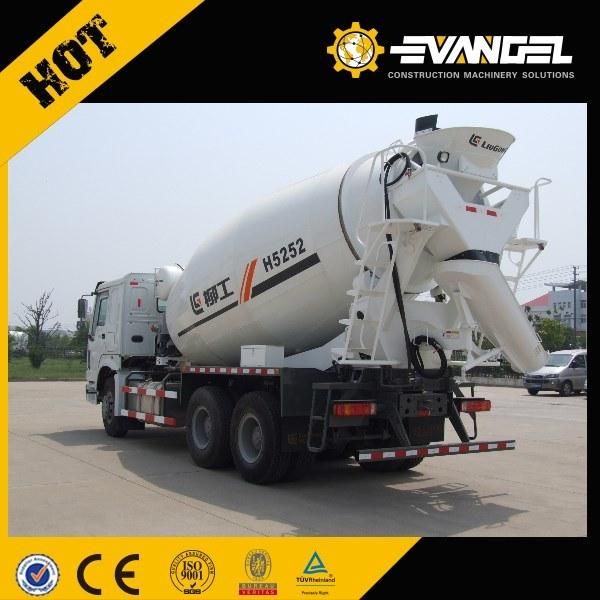

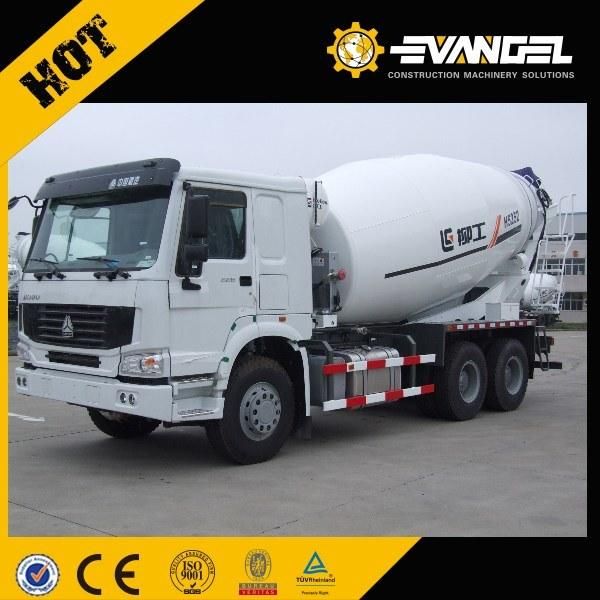

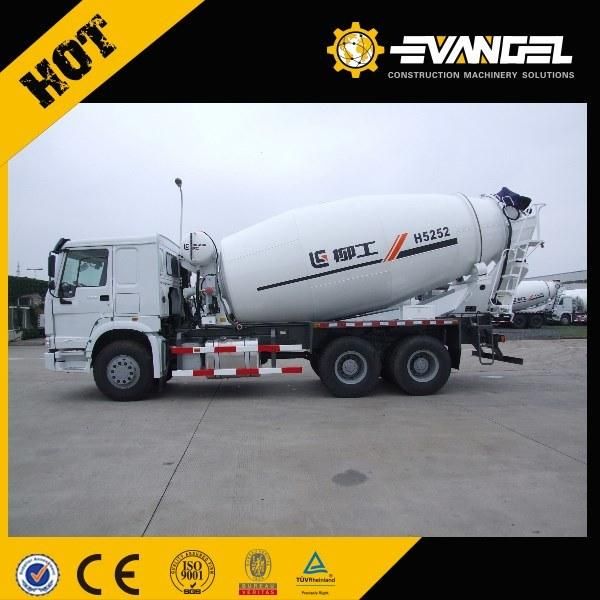

Liugong Mini Hold Concrete Mixer Truck Price Yzh5253gjbhw


1. Driving type: 6*4
2. Drum volume: 13.4m3
3. Engine power 247KW China III emission
4. Chassis Model:DELONG SX5255GJBJR364
5. Drum loading capacity:8m3


Chassis Model	DELONG SX5255GJBJR364
Emission Stage	CHINA 3
Engine Power	247KW
Engine Displacement	9.726L
Driving Type	6×4
Wheelbase	3625+1350mm
Max. Running Speed	77km/h
Min. Turning Radius	19 m
Truck loading capacity	12070 kgs
Overall Length	8850mm
Overall Width	2496mm
Overall Height	3780mm
Truck gross Weight	25000 kgs
Truck net weight	12800 kgs
Hydraulic pump	Sauer KPV23-674R
Hydraulic pump type	Piston pump
Hydraulic motor	Sauer KMF23-516-50
Speed reducer	Sauer TMG61.2
Hydraulic tank capacity	20L
Water tank capacity	450 L
Drum material	Baosteel B520JJ
Drum volume	13.4 m³
Drum loading capacity	8 m³
Drum agitating volume	5 m³
Material charge speed	≥3 m³/min
Material discharge speed	≥2.7 m³/min
Drum remnant ratio of discharging	≤ 0.5%
Drum rotating speed	0-18 (r/min)
Drum tilt angle	13°
