• Model NO.：RP601
• Trademark：EVANGEL
• Origin：Xuzhou, China
• Production Capacity：1, 000units,Month

Basic Info.

Model NO. RP601 Trademark EVANGEL Origin Xuzhou, China Production Capacity 1, 000units/Month

Product Description

RP601 Asphalt paver
Engine power: 100KW
Oper-weight: 17400-20500KG
Paving width(m): 2.5-6
Bucket Cap.: 13T
Screed model: ET45Q
Overall Dimension(mm): 6230*2500*3815

Configuration: Shangchai D4114ZG2B supercharger diesel engine, crawl, all hydraulic transmission, electronic control, screed with gas heater(paving width: 2.5-6m), electrical auto-leveling system, ultrasonic level controller, imported key parts of hydraulic, electric and bearing.
The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.

Item	Unit	Parameter
Basic Working Width	m	2.5
Max Working Width	m	6.0/7.0
Max Paving Thickness	mm	150
Paving Speed	m/min	0~11
Traveling Speed	km/h	0~3.2
Theoretical Productivity	t/h	300
Hopper Capacity	t	13
Gradient Ability	%	20
Smoothness	mm/3m	3
Slope Leveling Tolerance	%	0.03
Crown adjust	%	0~+3
Tamper revolution	r/min	0~1500
Tamper Amplitude	mm	4/8
Engine Type		D4114ZG2B (Shangchai)
Rated power	kw	100
Rated revolution	rpm	2400
Weight	t	17.4~20.5
Overall Dimension	mm	6400*2500*3830

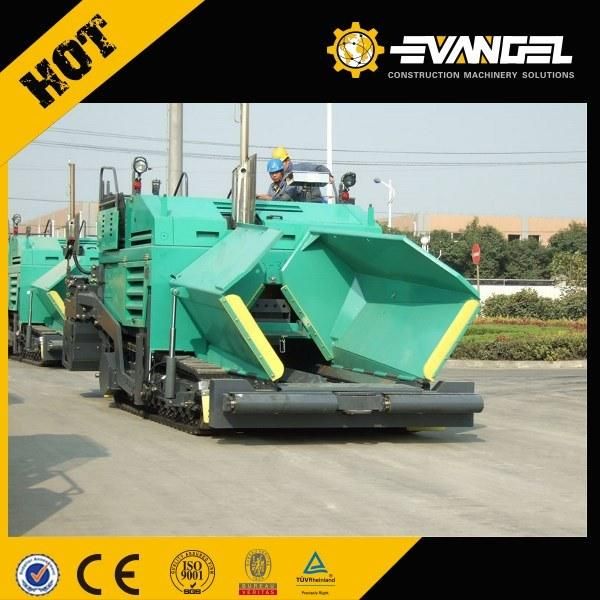

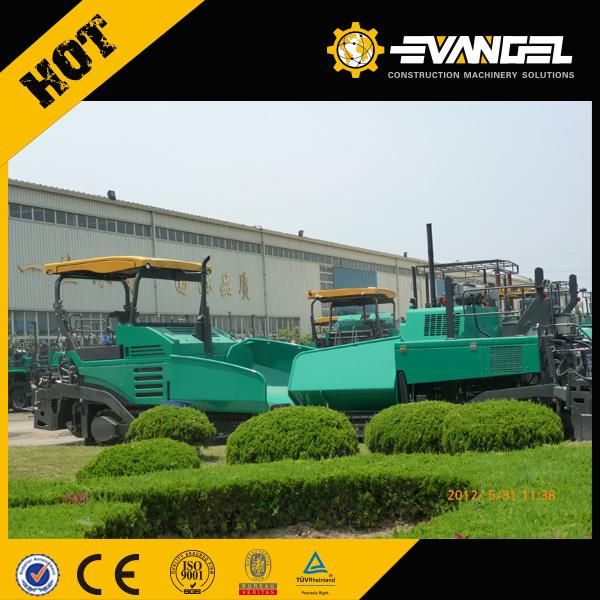

Photos:
