- Model NO.：SEM655D
- Type：Wheel Loader
- Color：Golden Yellow
- Transport Package：Nude
- Specification：contain
- Trademark：SEM
- Origin：Jiangsu, China
- HS Code：84295100
- Production Capacity：20 Sets,Month
| Items | | SEM655D |
| Main Specifications | | |
| Rated Load | kg | 5 000 |
| Operating Weight with Standard Bucket | kg | 16 550 |
| Bucket Capacity | m³ | 2.7-4.5 |
| Wheel Base | mm | 3 200 |
| Overall Dimension (outside of tire) | mm | 8 060x2 963x3 417 |
| Operating Specifications | | |
| Breakout Force | kN | 168 |
| Dump Clearance | mm | 3058 |
| Articulated Angle | ° | 38±1 |
| Transmission | | |
| Transmission Type | | Countershaft, power shift |
| Transmission Gears | | F4/R4 |
| Torque Converter Type | | Sigle stage 3 elements |
| Maker & Type | | SEM TR200 |
| Forward I/ Reverse I | km/h | 7.8/7.8 |
| Forward II/ Reverse II | km/h | 15/15 |
| Forward III/ Reverse III | km/h | 22/22 |
| Forward IV/ Reverse IV | km/h | 39/39 |
| Axle | | |
| Main Drive Type | | Spiral bevel gear, single stage |
| Final Drive Reduction Type | | Planetary type, singe stage |
| Rear - Oscillating +/- | ° | ±11 |
| Engine | | |
| Model | | Cummins L9.3 |
| Rated Power | kW | 162 |
| Rated Speed | r/min | 2 000 |
| Displacement | L | 9.3 |
| Implement Hydraulic | | |
| Implement System Type | | Twin pump flow merging hydraulic system |
| Boom Raise Time | s | 5.13 |
| Hydraulic Cycle Time (rated payload) | s | 9.3 |
| System Presure Setting | Mpa | 17 |
| Brake System | | |
| Service Brake | | Dry & caliper, air to oil control |
| Parking Brake | | Drum type shoe brake,spring applied & oil released |
| Steering System | | |
| System Type | | Flow amplifying |
| Steering Pump Type | | Gear pump |
| System Presure Setting | Mpa | 16 |
| Steering Angle (L/R) | ° | 38±1 |
| Tires | | |
| Size | | 23.5-25 |
| Type | | Bias |
| Layer | | 16 |
| Textured Type | | L3 |

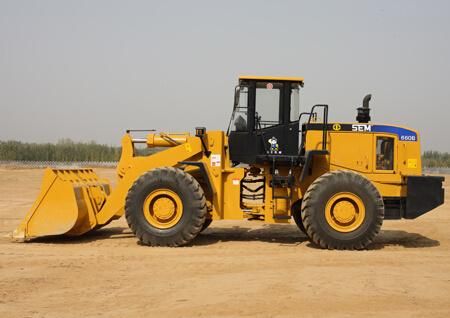

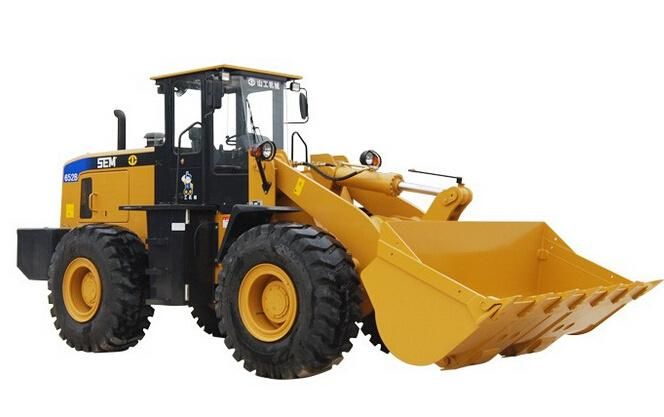

Product photo
