• Model NO.：SWD100
• Engine Power：<74kw
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Color：Yellow
• Blade Type：Straight
• Blade Capacity：3.5 M3
• Track Width：450 mm
• Blade Width：2935mm
• Blade Height：960mm
• Max. Travel Speed：10.4 Km,H
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84291110
• Production Capacity：50PCS,Month

Basic Info.

Model NO. SWD100 Engine Power <74kw Certification ISO9001: 2000, ISO14001 Condition New Color Yellow Blade Type Straight Blade Capacity 3.5 M3 Track Width 450 mm Blade Width 2935mm Blade Height 960mm Max. Travel Speed 10.4 Km/H Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84291110 Production Capacity 50PCS/Month

Product Description

Main Features for SWD100 Bulldozers

Engine choose the pressure rising engine produced by British Ricardo joint-venture technology, lower oil consumption and stronger torsion.
Main clutch comprises of dry, dual-sheet and common are combined with and it features simple construction, more reliable and easier maintenance.
Gearbox is applied to 4F plus 2R mechanical shift, and it features higher efficiency, simple operation, easier maintenance and more reliable operation.
Turning clutch: choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintenance, lightly and convenient operation.
Transmissions: choose two classes, straight teeth, big modulus gear transmission, stronger in carrying capacity and higher in reliability.
Operation device: several devices such as direct-pouring shovel, environmentally hydraulic, angle shovel, coal-pushed shovel and soil scarifier are available for user.

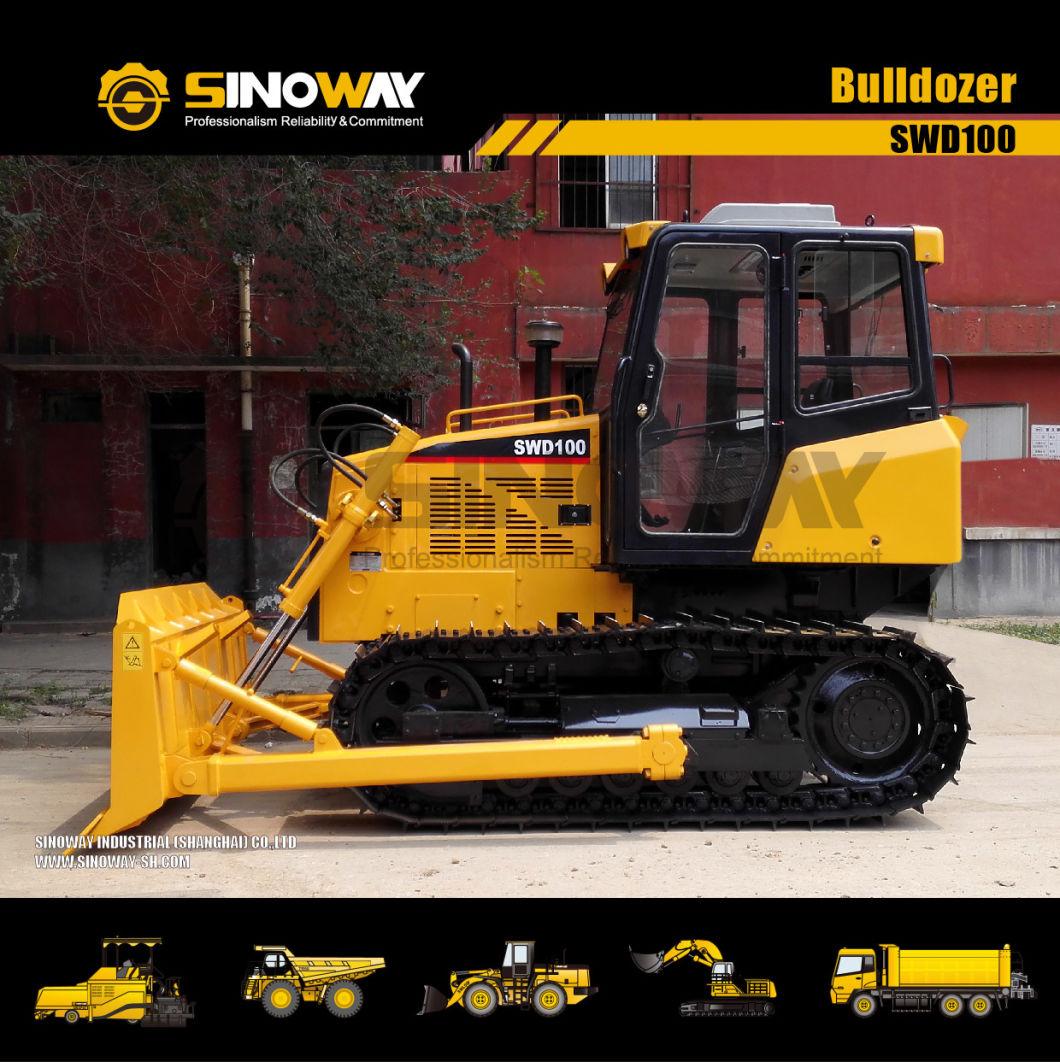

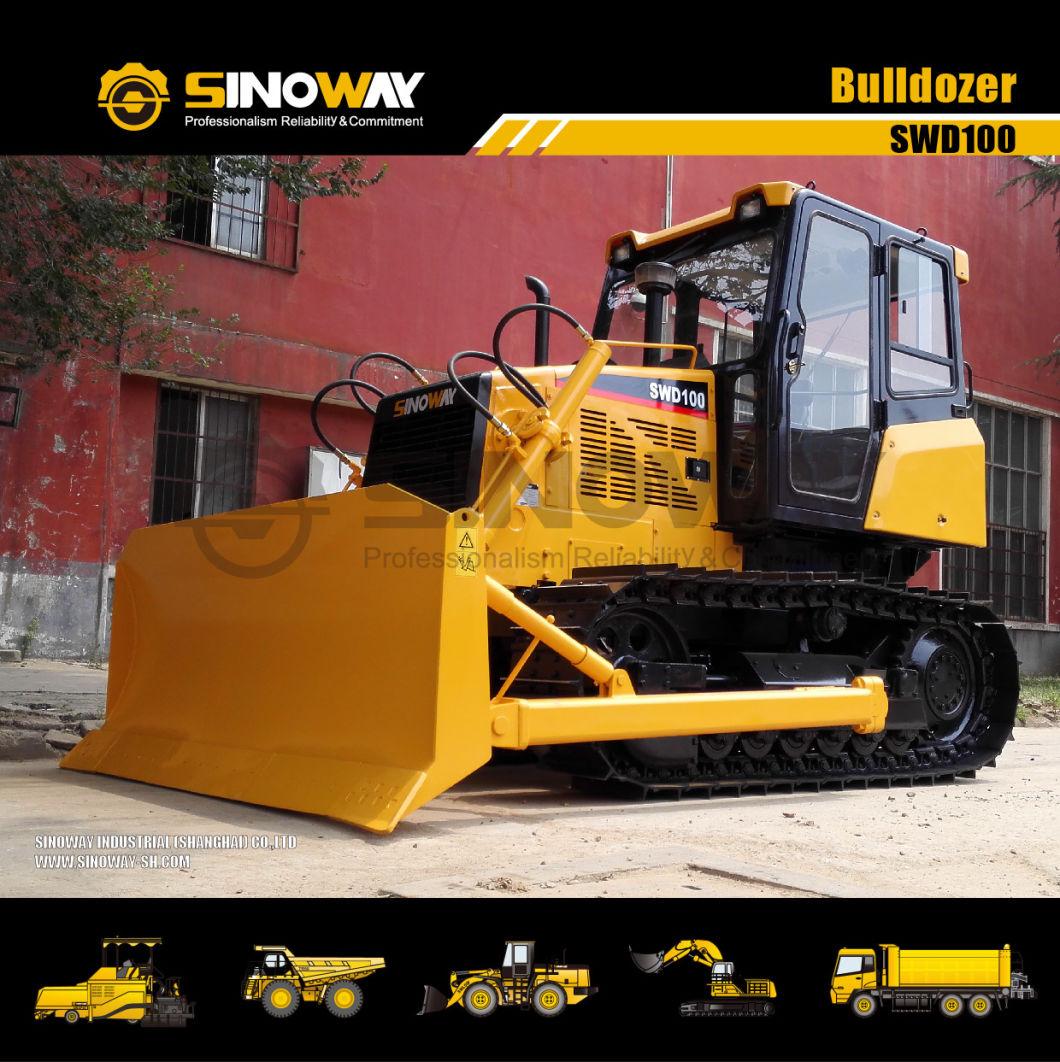

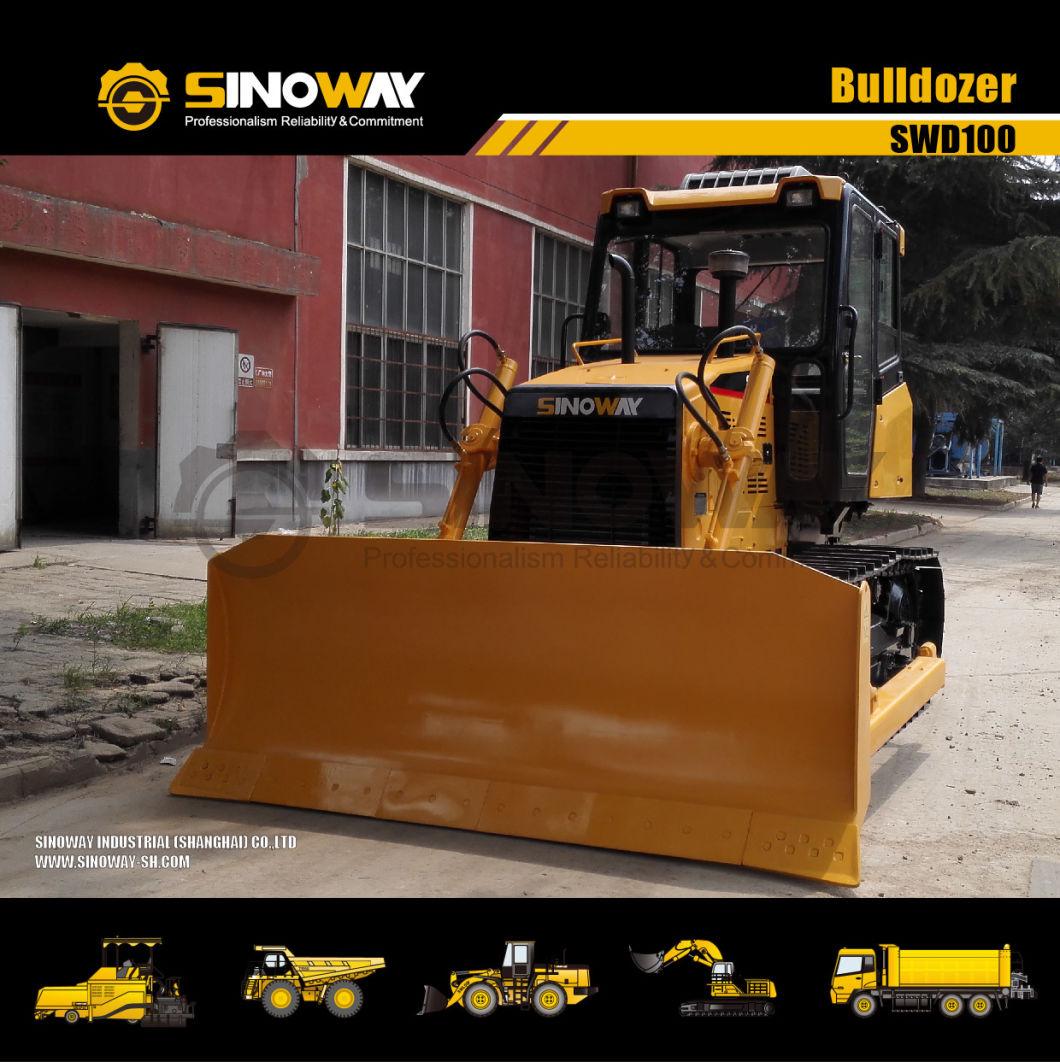

Product Show

Specifications

Engine
Model	RICARDO tech diesel engine LR6A3
Type	Six-cylinder,water-cooled normally aspirated,mechanical injection
Rated power	73.5KW
Rated speed	2300rpm
Implement Hydraulic System
Hydraulic flow rate	115L/min
Hydraulic pressure	16MPa
Pump type	Gear pump
Control valve	Hand operated
Under Carriage System
Sprocket	Integral
Number of track rollers (each side)	6
Number of carrier rollers (each side)	(4 single, 2 double)
Number of front idler (each side)	11
Track type	Single grouser
Track tension	Hydraulic
Track pitch	171mm
Track width	450mm
Number of track shoes (each side)	39
Track length on ground	2160mm
Ground clearance	368mm
Main Technical Specification
Operating weight(without ripper)	10000Kg
Ground pressure(without ripper)	0.054MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	4190×2935×2982mm
Max. tractive force	81KN
Working Equipment
Blade type	Straight
Width	2935mm
Height	960mm
Max. digging depth	350mm
Max. lift above ground	830mm
Tilting angle	8.5°
Blade capacity	3.5m3
Transmission System
Gear box	Mechanical
Bevel gear	One pair spiral bevel gear
Final drive	One pair columnar gear floating sealing
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F4/R2
Forward/Reverse I	2.6~10.4
Forward/Reverse II	3.7~6.7
Service Capacities
Fuel tank	250L
Water tank	22L
Implement oil tank	30L
Steering clutch	Dry multi-plate, floating control
Steering brake	Mechanical pedal control
