• Model NO.：SWD220Y
• Condition：New
• Color：Yellow
• Track Width：560mm
• Blade Type：Straight
• Blade Height：1590mm
• Max. Tractive Force：281kn
• Blade Capacity：5.45 M3
• Ground Clearance：450mm
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：300 PCS,Month

Basic Info.

Model NO. SWD220Y Condition New Color Yellow Track Width 560mm Blade Type Straight Blade Height 1590mm Max. Tractive Force 281kn Blade Capacity 5.45 M3 Ground Clearance 450mm Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 300 PCS/Month

Product Description

SWD220Y Crawler Bulldozers' Advantages

Gearbox
Hydraulic controlled gearshift is realized by operating the controlvalveand without having to stop th machinewhen operated with th torqu converter to save operator effort .The transmission is combined with four planets IInes and a rotary lock-up clutchmultiple disc clutchhydraulic controlled releaseforced lubricationwith 3 speeds forward and 3 speeds backward.

Torque converler
The hydraulic torque converter for is a newly developed product with the improvement made to the materiapl rocess and layout based on introduced Japan KOMATSU technology. It features simple architectureeasy maintenancelow noiseexcellent reliabilitystepless speed regulating which ensure perfect match to the machine for an outstanding traction and a stable transmission.

Finaldrive
The final drive uses triangle Spline and tip relie1crowned gear drive for enhanced balance and the stability during power transmissionlower noiseexcellent reliability and added life.

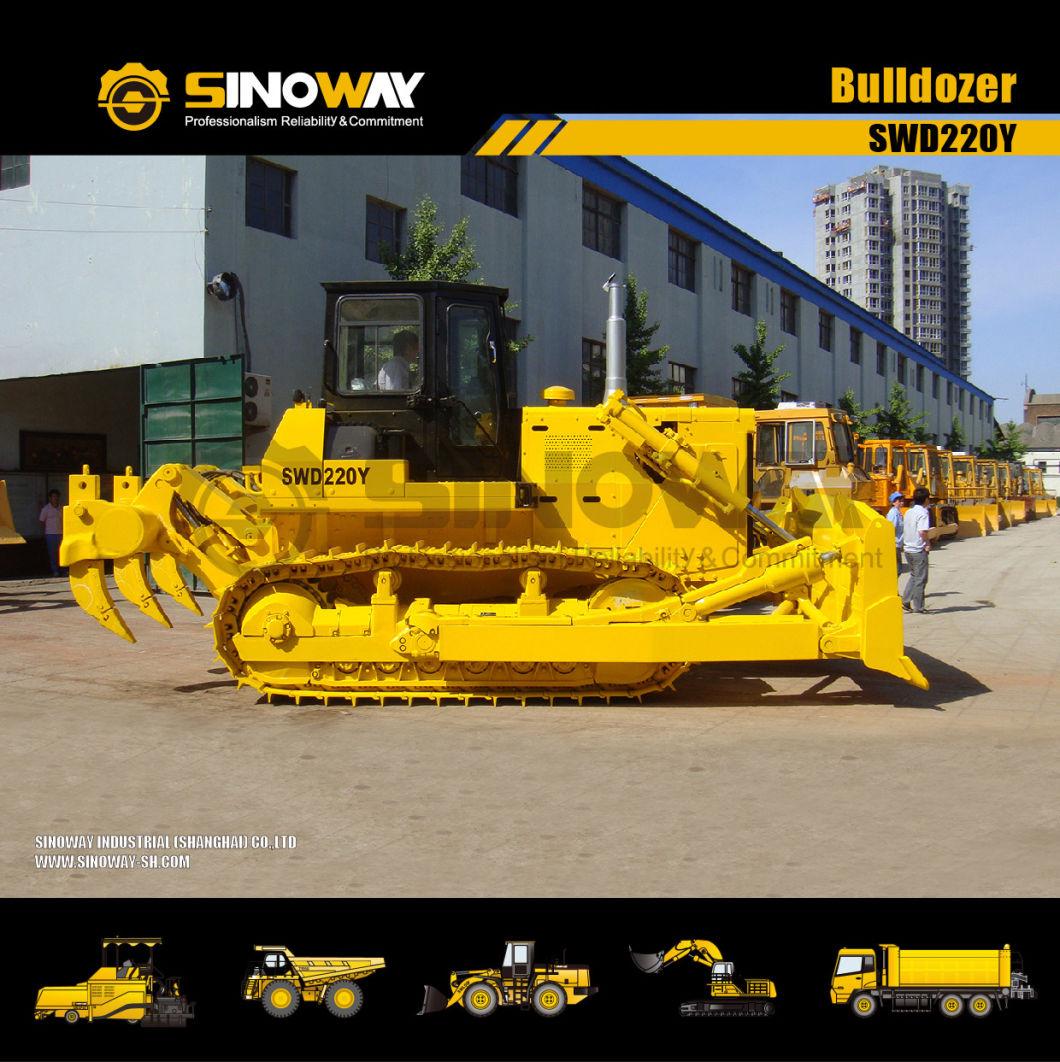

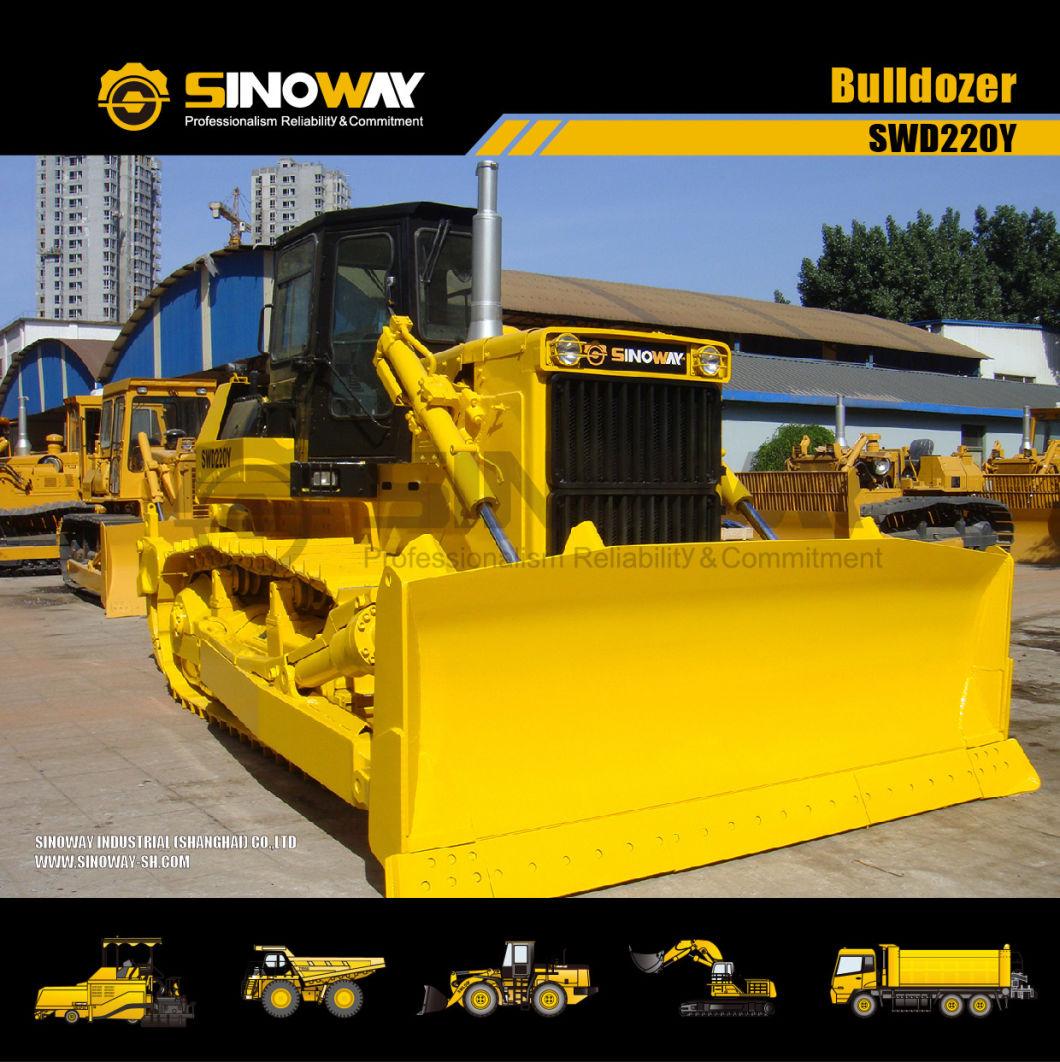

Product Show

Specifications

Engine
Model	Cummins
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	162KW
Rated speed	1800rpm
Implement Hydraulic System
Hydraulic flow rate	257L/min
Hydraulic pressure	13.7MPa
Pump type	Double gear pump
Control valve	Hydraulic operated,pilot control
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	6
Number of carrier rollers (each side)	(4 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	Hydraulic
Track pitch	216mm
Track width	560mm
Number of track shoes (each side)	38
Track length on ground	2730mm
Ground clearance	405mm
Main Technical Specification
Operating weight(without ripper)	25500Kg
Ground pressure(without ripper)	0.078MPa
Grade ability	58%

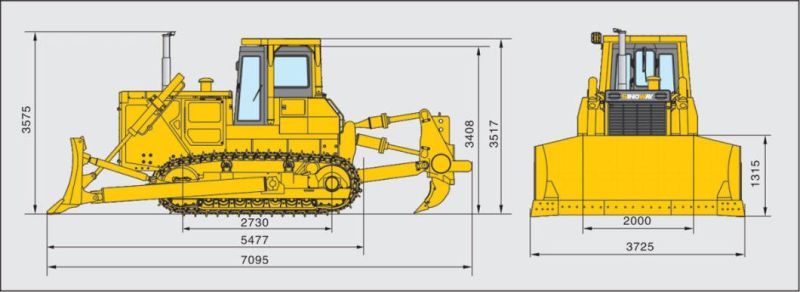

Overall dimensions (L×W×H,without ripper)	5750×3725×3575mm
Max. tractive force	200KN
Working Equipment
Blade type	Straight
Width	3725mm
Height	1315mm
Max. digging depth	540mm
Max. lift above ground	1210mm
Tilting angle	11°
Blade capacity	5.45m3
Transmission System
Gear box	Power shift, forced lubrication,planetary gear
Torque converter	3 elements, single stage,single phase
Final drive	Spur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.6/4.3
Forward/Reverse II	6.5/7.7
Forward/Reverse III	11.2/13.2
Service Capacities
Fuel tank	450L
Water tank	79L
Steering clutch	Wet, multiple disc, spring loaded, hydraulically released
Steering brake	Wet, band brake, operated with hydraulic booster, valve inner linkage
