Engineering & Construction Machinery

Excavator Rubber Track 350*56*84 for Kubota K038 Case Ck38

Shanghai Puyi Industrial Co., Ltd.
  • After-sales Service:Free Replacement
  • Warranty:12 Months
  • Type:Crawler
  • Application:Excavator
  • Certification:ISO9001: 2000
  • Condition:New

Base Info

  • Model NO.:350*56*84
  • Material:Rubber and Steel
  • Width:350mm
  • Pitch:56mm
  • Links:84(Can Be Customized)
  • Weight:172.2kg
  • Overall Length:4704mm
  • Color:Black
  • Exported Markets:Global
  • Transport Package:Bare Packing or Wooden Pallets
  • Specification:350*56*84
  • Trademark:No Marks or As Buyer′s Requests
  • Origin:Shanghai, China(Mainland)
  • HS Code:8431499900
  • Production Capacity:1000PCS,Month

Description

Basic Info.

Model NO. 350*56*84 Material Rubber and Steel Width 350mm Pitch 56mm Links 84(Can Be Customized) Weight 172.2kg Overall Length 4704mm Color Black Exported Markets Global Transport Package Bare Packing or Wooden Pallets Specification 350*56*84 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China(Mainland) HS Code 8431499900 Production Capacity 1000PCS/Month

Product Description

Kubota K038 Case Ck38 Excavator Rubber Tracks 350*56*84:

Size: Width350mm*Pitch56mm*Links84
Weight:172.2kg
Length:4704mm
MOQ:2PCS

Adapt to the model:

MODELORIGINAL SIZE
CK38 (CASE)350x56x84
K038 (KUBOTA)350x56x84
KX038 (KUBOTA)350x56x84
KX121.2 (KUBOTA)350x56x84
KX121.2S (KUBOTA)350x56x84

The characteristics of rubber tracks:

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue
5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.
6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.
7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks:

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed
8. The length can be adjusted to meet your needs. Please contact with us to get detailed information.

Width*Pitch length(mm)

Number of Links

Width*Pitch length(mm)

Number of Links

Width*Pitch length(mm)

Number of Links

130*72

28-53

300*52.5K

72-84

400*72.5KW

68-92

150*60

28-49

300*52.5KW

72-92

400*74

68-76

150*72

29-40

KB300*52.5

72-92

400*75.5K

74

170*60

30-40

KB300*52.5N

72-98

B400*86

52-55

180*60

30-40

JD300*52.5N

72-98

400*90

42-56

180*72

30-58

300*53K

80-84

Y400*142

36-37

180*72K

30-37

300*55

70-86

400*144

36-41

B180*72K

34-51

300*55.5K

76-82

Y400*144K

36-41

B180*72A

30-51

300*71K

72-55

420*100

50-58

H180*72

30-50

300*109N

25-42

450*71

76-88

190*60

30-40

K300*109

37-41

DW450*71

76-88

190*72

34-39

300*109WK

35-42

450*73.5

76-84

200*72

34-47

B300*84

78-52

450*76

80-84

200-*72K

37-47

T300*86K

48-52

450*81N

72-80

230*48

60-84

320*52.5

72-98

450*81W

72-78

230*48K

60-84

B320*52.5

68-98

KB450*81.5

72-80

230*72

42-56

320*54

70-84

K450*83.5

72-74

230*72K

42-56

B320*86

49-52

B450*84

53-56

230*96

30-48

320*90

52-56

B450*86

52-55

230*101

30-36

320*100

38-54

450*90

58-76

250*47K

84

320*100W

37-65

KU450*90

58-76

250*48.5K

80-88

Y320*106K

39-43

T450*100K

48-65

250*52.5K

72-78

350*52.5

70-92

K450*163

38

250*72

47-57

350*54.5K

80-86

485*92W

74

B250*72

34-60

B350*55K

77-98

500*90

76-82

B250*72B

42-58

350*56

80-86

500-92

72-84

E250*72

37-58

350*75.5K

74

500*92W

78-84

250*96

35-38

350*90

42-56

500*100

71

250*109

35-38

350*100

46-60

K500*146

35

260*55.5K

74-80

350*108

40-46

600*100

76-80

Y260*96

38-41

350*109

41-44

600*125

56-64

260*109

35-39

Y370*107K

39-41

700*100

80-98

280*72

45-64

400*72.5N

70-80

750*150

66

Y280*106K

35-42

400*72.5W

68-92

800*125

80

300*52.5N

72-98

Y400*72.5K

72-74

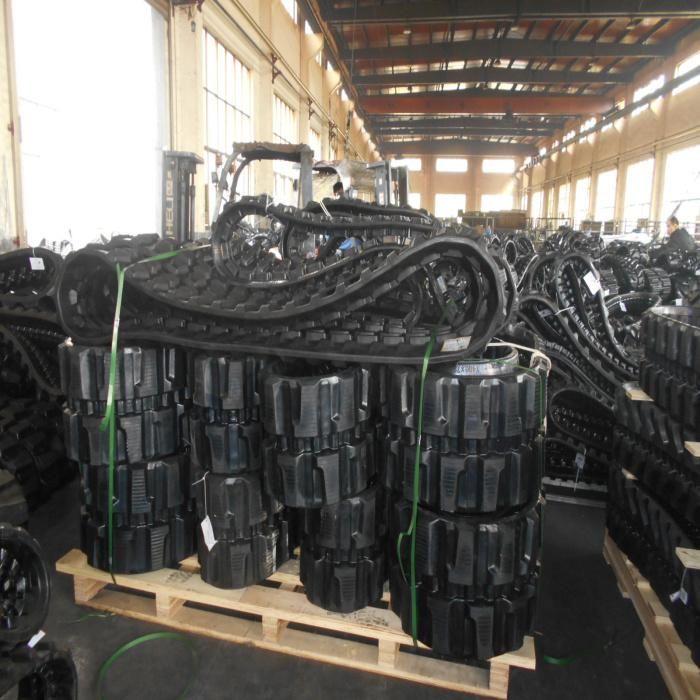

Warehouse:

Excavator Rubber Track 350*56*84 for Kubota K038 Case Ck38

Quality Control:

1.Ex works Inspection

2.Products Audits/Examination(Strict inspection according to customer's request)

3.Production Procedure Audit/Examination(Entire Procedure Control)

4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)

Rubber track warranty

2 year(18 months) or 1500 hours working time,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

Company introduction:

Serving since 2000,POOYERT has been supplying the construction industry with premium grade replacement rubber track and rubber pads that can be widely applied in construction machinery,agricultural machinery and other specialized vehicles.

Made of all natural rubber and high quantity synthetic rubber compounds including carbon black,and continuous steel cords that are protected with thick vulcanized rubber,POOYERT leads the way in today's modem track manufacturing.POOYERT tracks are produces under strict quality guidelines and have ISO9001 Accredited Certification.
