• Model NO.：400*75.5*70K
• Certification：ISO9001: 2000
• Condition：New
• Material：Rubber and Steel
• Width：400mm
• Pitch：75.5mm
• Links：70 (Can Be Customized)
• Weight：286.3kg
• Color：Black,White
• Exported Markets：Global
• Transport Package：Bare Packing or Wooden Pallets
• Specification：400*75.5*70K
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China(Mainland)
• HS Code：8431499900
• Production Capacity：1500PCS,Month

Basic Info.

Model NO. 400*75.5*70K Certification ISO9001: 2000 Condition New Material Rubber and Steel Width 400mm Pitch 75.5mm Links 70 (Can Be Customized) Weight 286.3kg Color Black/White Exported Markets Global Transport Package Bare Packing or Wooden Pallets Specification 400*75.5*70K Trademark No Marks or As Buyer′s Requests Origin Shanghai, China(Mainland) HS Code 8431499900 Production Capacity 1500PCS/Month

Product Description

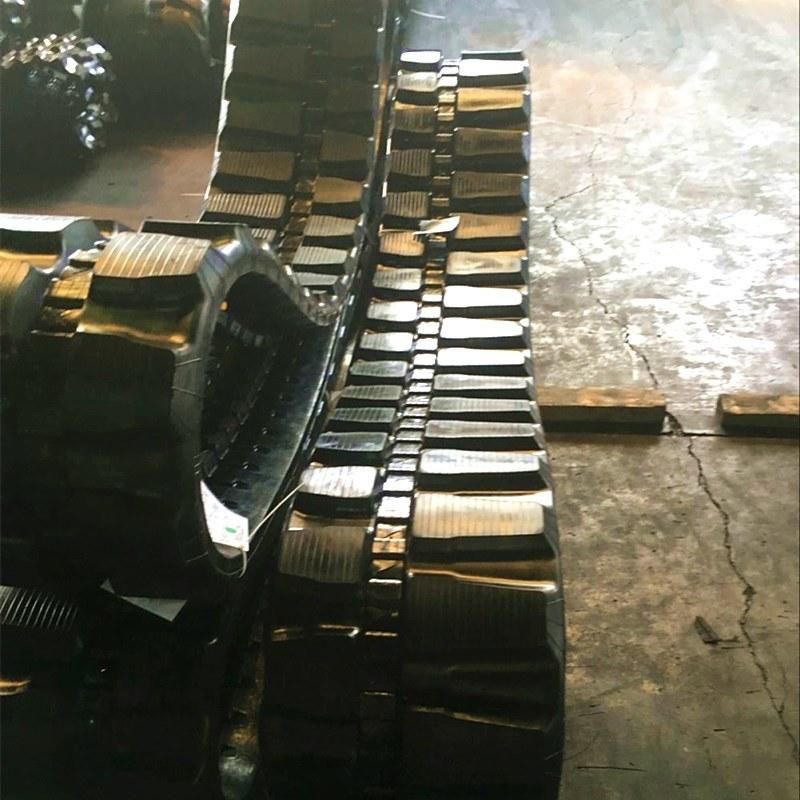

Rubber Track 400*75.5*70K for Excavator Yanmar B50.2b

1: Model No: 400*75.5*70K
2: Adjustalbe total length, free to change, easily to deal!
3: In case for any other type, pls check with us firstly
4: Pack in Wooden Pallets Or According to Customer Requirements

Adapt to the model:


MODEL	ORIGINAL SIZE
B50.2B (YANMAR)	400X75,5X74
B50V (YANMAR)	400X75,5X74
B50VCR (YANMAR)	400X75,5X74
B50VIO (YANMAR)	400X75,5X74
B6.3 (YANMAR)	400X75,5X74
VIO45 (YANMAR)	400X75,5X74
VIO50.1 (YANMAR)	400X75,5X74
VIO50.2 (YANMAR)	400X75,5X74
VIO50PR.1 (YANMAR)	400X75,5X74
VIO50V (YANMAR)	400X75,5X74
VIO55 (YANMAR)	400X75,5X74
VIO55CR (YANMAR)	400X75,5X74
VIO57 (YANMAR)	400X75,5X74

Specifications
1. Low noise & vibratio
2.excellent quality and low price
3.strong resistance to wear.
4.warranty:12 months

Application and Features of the rubber track

1. Suitable for the small wheelchair.

2. Can load weight about300-400KG

3. Length can be adjusted.

4. Sprocket is available.

Characteristics of rubber track:

1). Less damage to the ground surface

2). Low noise

3). High running speed

4). Less vibration;

5). Low ground contack specific pressure

6). High tractive force

7). Light weight

8). Easy to change

About Us:
Our plant mainly produce Rubber Track which are specially good use for these
kind of Machine:
Snowbower/Snowmobile, Robot, Wheelchair, (mini)Excavators, Track loaders, Pitch Paver,
Agricultural Harvester, Dumpers...Etc.


Quality Control for the Rubber track:

1. Ex works Inspection

2. Products Audits/Examination(Strict inspection according to customer's request)

3. Production Procedure Audit/Examination(Entire Procedure Control)

4. Raw material Inspection/Examination; Purchased Parts Inspection(Including All

Purchased Material)

Parameters:

size width*pitch	link	A	B	C	D	F	pattern	guiding
130*72	29-40	23	64.5	28	28	15	AF1	A2
150*60	32-40	22	64	22.5	24.5	15	AC	A2
150*72	29-40	23	64	23	23	15	AC	A2
170*60	30-40	19	57	22	22	13	CE	A1
180*60	30-40	23.5	64	21	21.5	15	AM	A1
180*72	31-43	25	68	29	29	15	BK	A2
180*72K	32-48	20	61	22	19.5	17	BB1	B2
B180*72	31-43	23	66	30	29	15	BB1	B2
H180*72	30-50	23	64	27	26	17	BK	A2
190*60	30-40	23.5	64	21	21.5	14	AM	A1
190*72	31-41	21	68	27.5	26.5	15	BF	A2
200*72	34-47	23	76	28.5	26.5	18	BB1	A2
200*72K	37-47	21	69	29.5	29	18	BM	A2
Y200*72	40-52	24	64	28.5	29.5	12	BK	A2
230*48	60-84	24	72	24	25	21	BI	B1
230*48K	60-84	24	66	21	20	19	BI	B2
230*72	42-56	24	82	30	26	18	AF1	A2
230*72K	42-56	20	69	29.5	28	16	BD	A2
230*96	30-48	25	68	23.5	25.5	22	BE	B1
230*101	30-36	25	74	22.5	29	19	BO	B1
250*47K	84	23	70	24	20	22	BD	B2
250*48.5K	80-88	24	66	21	20	19	CA	B2
250*52.5K	72-78	26	81	23	25	25	BA	B2
250*52.5	72-78	29	72	23	25	21	BI	B1
250*72	47-57	24	82	30	26	18	AF1	A2
B250*72	34-60	23	64	29	22	10	CI	A2
B250*72B	34-60	23	78	29	26	16	AB	B2
250*96	35-38	25	70	20	19	22	BB1	B2
250*109	35-38	40	89	24.5	14	20	CG	B1
260*55.5K	74-80	31	80	21.5	27	24	CA	B2
Y260*96	38-41	25	68	23	25.5	22	AB	B1
260*109	35-39	30	84	24	29	15	AB	B1
E280*52.5K	70-88	29	84	27	26	22	BI	B2
280*72	45-64	25	78	29.5	26	22	AL	A2
Y280*106K	35-42	30	80	27.5	28	20	AB	B2
300*52.5N	72-98	30	82	25	18	20	BI	B1
300*52.5W	72-92	43	96	22	23	22	BE	B1
300*52.5K	70-84	29	84	27	26	22	BI	B2
300*52.5KW	72-92	40	92	25	24	22	BI	C1
E300*52.5K	70-88	29	84	27	26	22	BI	B2
KB300*52.5	72-92	40	90	24.5	24.5	22	BI	C1
KB300*52.5N	72-98	30	82	23	20	25	BI	B1
JD300*52.5N	72-98	30	80	23.5	22	22	BI	B1
300*53K	80-96	31	88	25	19.5	21	BI	B2
300*55	70-88	29	86	25.5	27.5	23	BI	B1
300*55.5K	76-82	31	82	22	27	21.5	CA	B2
300*71K	72-76	42	106	23	24	40	BD	B2
300*72	36-40	23	75	40	34	18	BK	A2
BA300*72	36-46	26	76	29	27	19	AF1	A2
300*109N	35-42	29	82	27	28	25	BE	B1
300*109W	35-44	38	90	26	29	24	BB1	B1
K300*109	37-41	27	85	23.5	27.5	20	AB	B2
300*109WK	35-42	40	90	24.5	14	23	CG	B1
320*52.5	72-98	30	83	23.5	18	21	BI	B1
320*54	70-84	29	80	23	21	20	AB	B1
B320*55K	70-88	30	82	25	30	23	BE	B2
Y320*106K	39-43	31	80	26	27	24	AB	B2
350*52.5	70-92	40	94	22.5	19	30.5	BE	B1
E350*52.5K	70-88	29	84	27	26	22	BI	B2
350*54.5K	80-86	40	92	23.5	22.5	23	AD	B2
B350*55K	70-88	30	82	25	30	23	BE	B2
350*56	80-86	39	89	25.5	16.5	20.5	BC	B1
350*75.5K	74	37	98	24.5	25	25	CA	C2
350*108	40-46	40	90	24.5	14	25	CG	B1
350*109	41-44	40	92	26	20	25	BO	B1
Y370*107K	39-41	38	94	25.5	28	23.5	AB	B2
400*72.5N	70-80	38	100	26	24	25	AF3	B1
400*72.5W	68-92	51	108	26	24	25	BI	B1
Y400*72.5K	72-74	28	86	30	24.5	25	AF3	C2
KB400*72.5K	68-76	37	94	24	26	23.5	BA	B2
400*72.5KW	68-92	46	112	24	23.5	25	BI	B2
400*74	68-76	38	100	25.5	29.5	24	BH2	B1
400*75.5K	74	39	100	25	26	25	CA	C2
Y400*107K	46	38	89	27	25	25	AB	C2
K400*142	36-37	27	87	34	27	29	CF	C2
400*144	36-41	47	98	27	11	30	CF	B1
Y400*144K	36-41	35	126	29.5	26	25	BE	B2
450*71	76-88	42.5	115	29.5	17	30	BE	B1
DW450*71	76-88	44	114	31	27	25	BD	B1
450*73.5	76-84	42	118	31	34	28	CG	B1
450*76	80-84	48	122	30.5	31.5	26	BI	B1
450*81N	72-80	42	117	26	24	27	BE	B1
450*81W	72-78	58	140	29	32	30	BI	B1
KB450*81.5	72-80	42	110	31.5	27.5	26	BD	B1
K450*83.5	72-74	42	112	24.5	25	28	BI	B1
Y450*83.5K	72-74	38	113	24	27	26	CA	B2
K450*163	38	38	114	27	28	30	AB	B2
485*92W	74	62	142	34	33	30	BE	B2
K500*71	72-76	41	106	23	24	42	BE	B2
500*92	72-84	48	130	27	26	29	BI	B1
500*92W	78-84	64	155	32.5	35.5	33	BI	B1
K500*146	35	40	106	26.5	24.5	50	BB1	A2

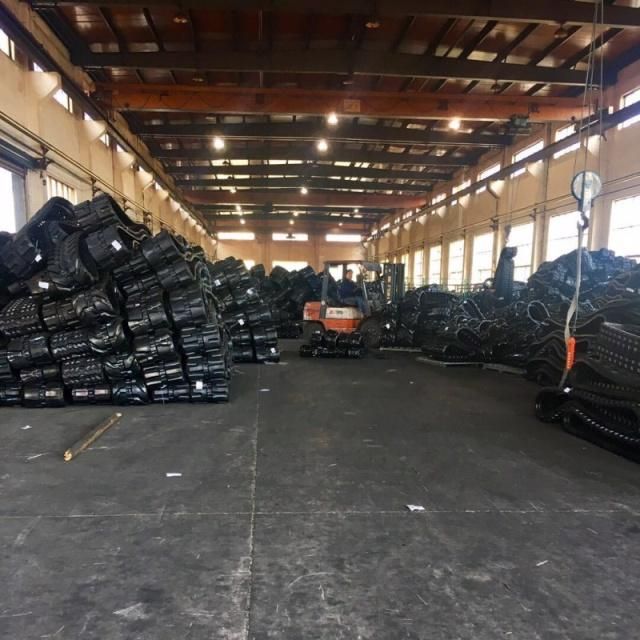

Warehouse:
