• Model NO.：SR13D
• Certification：ISO 9001:2008
• Condition：New
• Model：Shantui Sr13D
• Operating Weight：13000kg
• Engine：Deutz Bf4m2012
• Rated Power：98kw,2300rpm
• Transport Package：Container
• Specification：13000kg
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429401100
• Production Capacity：10000 Units, Year

Basic Info.

Model NO. SR13D Certification ISO 9001:2008 Condition New Model Shantui Sr13D Operating Weight 13000kg Engine Deutz Bf4m2012 Rated Power 98kw/2300rpm Transport Package Container Specification 13000kg Trademark SHANTUI Origin Shandong, China HS Code 8429401100 Production Capacity 10000 Units/ Year

Product Description

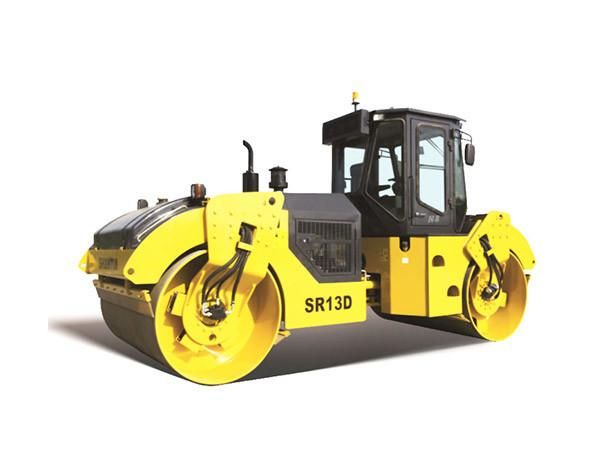

SR13D SHANTUI Double Drum 13000kg Road Roller
DOUBLE-DRUM ROLLER: SR13D
OVERALL WEIGHT: 13000kg
ENGINE POWER: 98kW/2300rpm China-III
COMPACTING WIDTH: 2130mm

High operating comfort
* The machine adopts three-stage shock-absorbing and proprietary sealing mechanisms to achieve low vibration and low noise.
* The instrument panel, seat, and control box of the cab are arranged ergonomically to achieve high operating comfort.
* The full-hydraulic drive and one-speed stepless speed regulation guarantee simple operations.

High maintenance convenience
* The combination instrument real-time monitors the critical parameters, including oil temperature, oil level, water temperature, and water level, and alarms in event of any over-limit.
* The 90° openable hood and the open layout ease the maintenances of engine filter elements and hydraulic parts.
* The centralized lubrication structure achieves more convenient routine maintenances.

Working performance
* The steel drum with "five-center-in-one" design is applied and the difference between left and right amplitudes of vibrating drum is controlled within 3% to effectively guarantee the road evenness.
* The 7-speed sprinkler guarantees more reasonable match between sprinkling volume and traveling speed.

Operating cost
* The proprietary match technology can achieve high operating efficiency and reasonable fuel economy and reduce the composite fuel consumption by 8%~10%.
* The core electric and hydraulic parts of imported brands guarantee high quality and reliability and reduce the malfunction downtime.
* High value maintenance.


Parameter name	SR13D
Performance parameters
Operating weight (Kg)	13000
Exciting force (KN)	150/86
Vibration frequency (Hz)	48/50
Nominal amplitude (mm)	0.66/0.36
Ground pressure (KPa)	-
Gradeability (%)	30
Engine
Engine model	BF4M2012
Rated power/rated speed (kW/rpm)	98/2300
Overall dimensions
Overall dimensions of machine (mm)	5775*2370*3133
Driving performance
Forward speed (km/h)	F1:0-10
Reversing speed (km/h)	R1:0-10
Chassis System
Wheelbase (mm)	-
Tank capacity
Fuel tank (L)	300
Working device
Compacting width(mm)	2130
