Double Drum Roller Shantui Srd08 with Cummins Engine
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Light Grind
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
Base Info
- Model NO.：SRD08
- Certification：ISO 9001:2008
- Condition：New
- Model：Shantui Srd08
- Operating Weight：8000kg
- Engine：Cummins 4bt3.9-C100
- Rated Power：75kw,2400rpm
- Transport Package：Container
- Specification：8000kg
- Trademark：SHANTUI
- Origin：Shandong, China
- HS Code：8429401100
- Production Capacity：10000 Units, Year
Description
Basic Info.
Model NO. SRD08 Certification ISO 9001:2008 Condition New Model Shantui Srd08 Operating Weight 8000kg Engine Cummins 4bt3.9-C100 Rated Power 75kw/2400rpm Transport Package Container Specification 8000kg Trademark SHANTUI Origin Shandong, China HS Code 8429401100 Production Capacity 10000 Units/ YearProduct Description

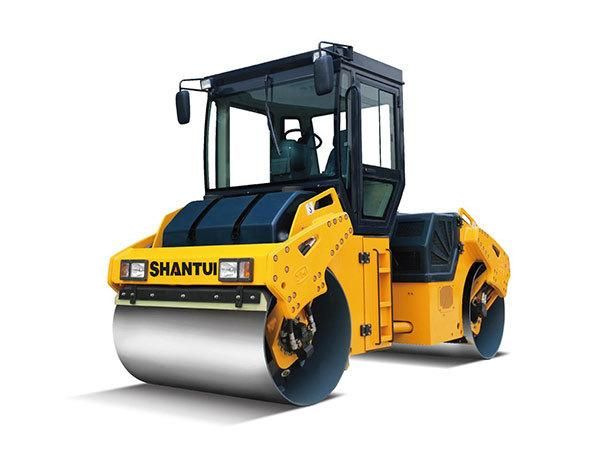

Double Drum Roller SHANTUI SRD08 with Cummins engineDOUBLE-DRUM ROLLER: SRD08
OVERALL WEIGHT: 8000kg
ENGINE POWER: 75kW/2400rpm China-III
COMPACTING WIDTH: 1700mm
Rich configuration
*Two big anticorrosive sprinkling cisterles connected design, large capacity, electric control pressure intermittent sprinkling water.
*Equipped with cab, optional air-conditioning or anti-roll frame
*The overall shape is beautiful with the streamline design, and the console have a good view.
Manipulation
*Hydraulic walking brake, electric control disc parking brake, equipped with emergency towing device, good safety performance
*The articulated steering makes it flexible.
Hydraulic system
*DANFOSS driving and vibrating system brings stability and reliability.
*Hydraulic dual - wheel drive, infinitely variable, hydraulic steering, easy to operate
*Using double frequencies, double amplitudes, imported plunger pumps and motors
Engine
*Equipped with high quality Cummins engine, stronger power with less fuel consumption
| Parameter name | SRD08 |
| Performance parameters | |
| Operating weight (Kg) | 8000 |
| Exciting force (KN) | 82/40 |
| Vibration frequency (Hz) | 42/48 |
| Nominal amplitude (mm) | 0.75/0.35 |
| Ground pressure (KPa) | - |
| Gradeability (%) | 35 |
| Engine | |
| Engine model | Cummins 4BT3.9-C100 |
| Rated power/rated speed (kW/rpm) | 75kw/2400rpm |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 4380*1860*2950 |
| Driving performance | |
| Forward speed (km/h) | F1: 0-6, F2: 0-12 |
| Reversing speed (km/h) | R1: 0-6, R2: 0-12 |
| Chassis System | |
| Wheelbase (mm) | 3300 |
| Tank capacity | |
| Fuel tank (L) | 150 |
| Working device | |
| Compacting width(mm) | 1700 |
